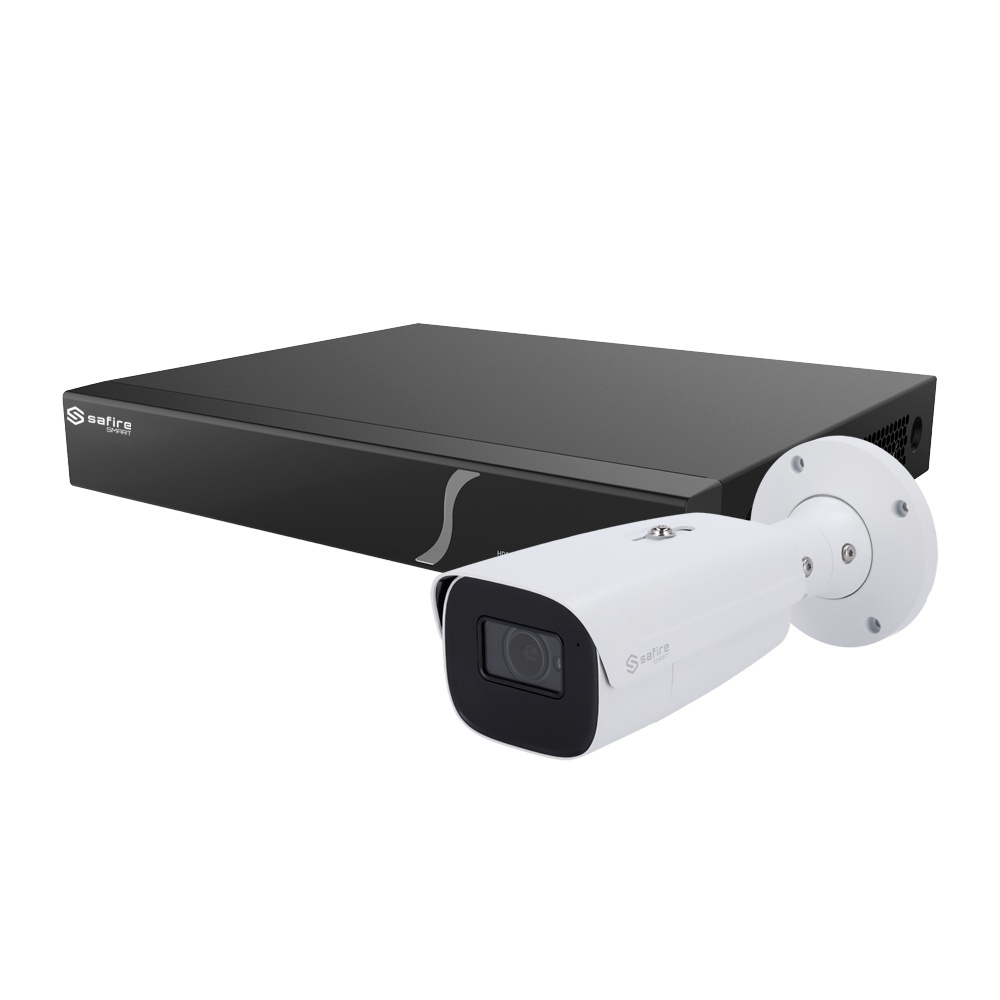

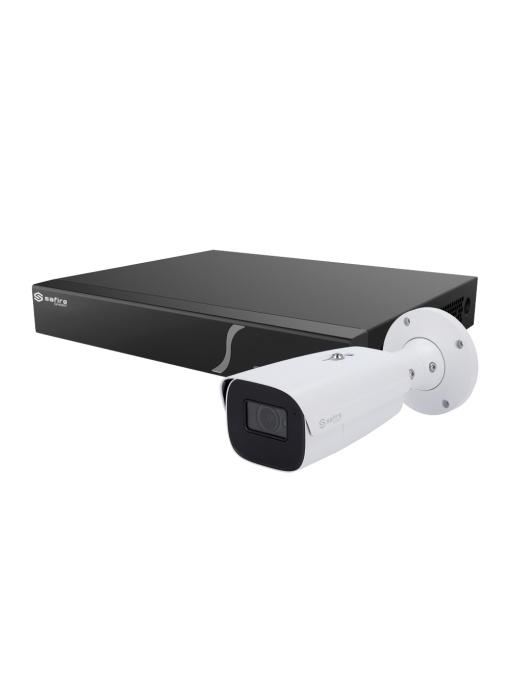

Safire Safire Samart Artificial Intelligence Kit - 1 4MPX Bullet Chamber - 1 NVR 8CH with audio and alarm - 1 1TB hard drive - HDMI 4K video output - Human and Advanced Vehicle Classification
€591.15
(IVA included)
€480.61
(Without IVA)
Description
Hd1tb | |
| Capacity | 1TB |
| Interface | SATAN |
| Bitrate | 6 GB/S |
| Model | WD10PURX |
| Manufacturer | Western Digital |
| Buffer size | 64 MB |
| Temp. operation | 0º C ~ +65º C |
SF-IPB585ZA-4I1 | |
| Mark | Safire Smart |
| Gamma | I1 |
| Image sensor | 1/3 "Progressive scan cmos |
| Maximum resolution | 4 megapíxel (2592x1520) |
| Minimal lighting | Color: 0.005 lux @(F1.6, AgC On), 0 lux with IR |
| Range | 70 m |
| Day/night | Mechanical filter ICR removable |
| Electronic Shutter | 1/2 ~ 1/100,000 s |
| Main Stream Rate | 25 fps (4mpx, 2k, 3mpx, 1080p, 720p) HFR mode: 60 fps (1080p / 720p) |
| Extra stream rate | 25 fps (720p, d1, cif, 480x240) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265+ / h.265 / h.264+ / h.264 |
| Bitrate | 64 kbps ~ 8 Mbps |
| Optical | Motorized 2.8 ~ 12 mm |
| Vision Angle (FOV) | H: 100-28.9 °, V: 54.4-16.7 °, D: 104.8-33.1 ° |
| Dari | W: 59 m (d), 24 m (o), 12 m (r), 6 m (i) T: 206 m (d), 82 m (o), 41 m (r), 21 m (i) |
| Image improvements | WDR 120DB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion detection | Yes |
| Intelligent Functions | Advanced Artificial Intelligence based on the classification of people, vehicles and non -motorized vehicles in: area intrusion, line crossing, input region, exit region Face detection and capture Counting of people, vehicles and non -motorized vehicles Extraction of characteristics: - Human: up to 13 characteristics - Vehicle: up to 5 characteristics - Non -motorized vehicle: up to 1 characteristics Other intelligent events: abandoned object, object removed |
| Exception | Change of scenario, detection of blundering and detection of abnormal colors |
| Audio | 1 entrance |
| Audio compression | G711A / U |
| Alarms | 1 input / 1 Relay |
| Network interface | Ethernet 10 / 100m baset |
| Internal storage | MicroSD Card up to 256GB |
| Remote access | Web browser, smartphone app Safire Smart, Safire Smart VMS software |
| Interoperability | Onvif |
| Food | DC 12 V / MA / 9 W Max. / Poe IEEE802.3AF |
| Degree of protection | IP67 Waterproof |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 88.7 (AL) X 100.2 (LG) X 278.3 (FD) MM |
| Weight | 1000 g |
SF-NVR8108A-B2 | |
| Mark | Safire Smart |
| Gamma | B2 |
| IP Chambers inputs | 8CH IP |
| Compatible IP chambers | Safire Smart (Native Protocol), Onvif |
| Bidirectional audio | 1 input / 1 RCA output |
| Main Stream recording | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960p/720p/ 960H/D1/CIF |
| Decoding capacity | 1CH 12MPX @ 20FPS 4CH 1080p @ 30fps |
| Video Compression Format | H.265+ / h.265 / h.264+ / h.264 |
| Audio compression | G.711 (U/A) |
| Total Band Width | 80 Mbps input / 80 Mbps output |
| Video exits | 1 HDMI 4K / 1 VGA |
| Display resolution | Hdmi: 3840x2160@30fps, 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 *HDMI and VGA can be configured to issue the same video source or different video sources |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Multi-range | Main output: 1/4/6/8/9 Secondary output: 1/4/6/8/9 9 (wide view) AI Mode (preset): max. 8CH (HDMI and VGA simultaneous) was on the available recorder Independent video output: max. 16CH (independent of HDMI and VGA) |
| Recording method | Manual, programmed, movement detection, smart events, alarm input, POS |
| POS FUNCTION | Si |
| Perimeter protection | Necessary to use Safire Smart chambers with artificial intelligence Artificial intelligence based on the classification of people, vehicles and two -wheel vehicles in: - Area intrusion - Line passage - Entry in the region - Exit from the region Detailed searches for intelligent events |
| Facial recognition | Safire Safire Safire 4i1 or 8i2 to 8ch (all channels) Faces detection by NVR itself with any chamber up to 2CH Facial recognition up to a maximum of 6CH Calculation of up to 18 frames/second 32 libraries and up to 10000 facial images Image Search through the recorder, app and software for PC Facial screening on the map or plan Statistical information about facial results per day, week, month or personalized period |
| Video Metadata | Necessary to use Safire Smart 4i1 or 8i2 chambers Extraction of human and vehicle characteristics For humans: possibility of extracting up to 13 characteristics (glasses, clothing color, etc.) For vehicles: possibility of extracting up to 5caracteristics (color, type, etc.) |
| Registration | Yes (a Safire Smart registration chamber is required) |
| Dewarping | Supports Fisheye Chamber Dewarping |
| Alarms | 8 Entries / 4 Exits |
| External backup | USB / HDD memory USB / CD-RW USB / DVR-RW USB |
| Internal storage | 1x hard disk 3.5 "SATA3.0 up to 10 tb (not included) |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/00 / 1000m (Ethernet) / RS485 |
| Remote access | Web browser, Safire Smartphone App and Safire Samart VMS Software |
| Food | DC 12V / 2A, ≤ 20W (no hard disk) |
| Operating temperature | -10ºC ~ 50ºC, humidity 10 ~ 90% |
| Dimensions / Weight | 48.1 (AL) x 300 (LG) x 248.5 (FD) mm / 1.18 kg |
