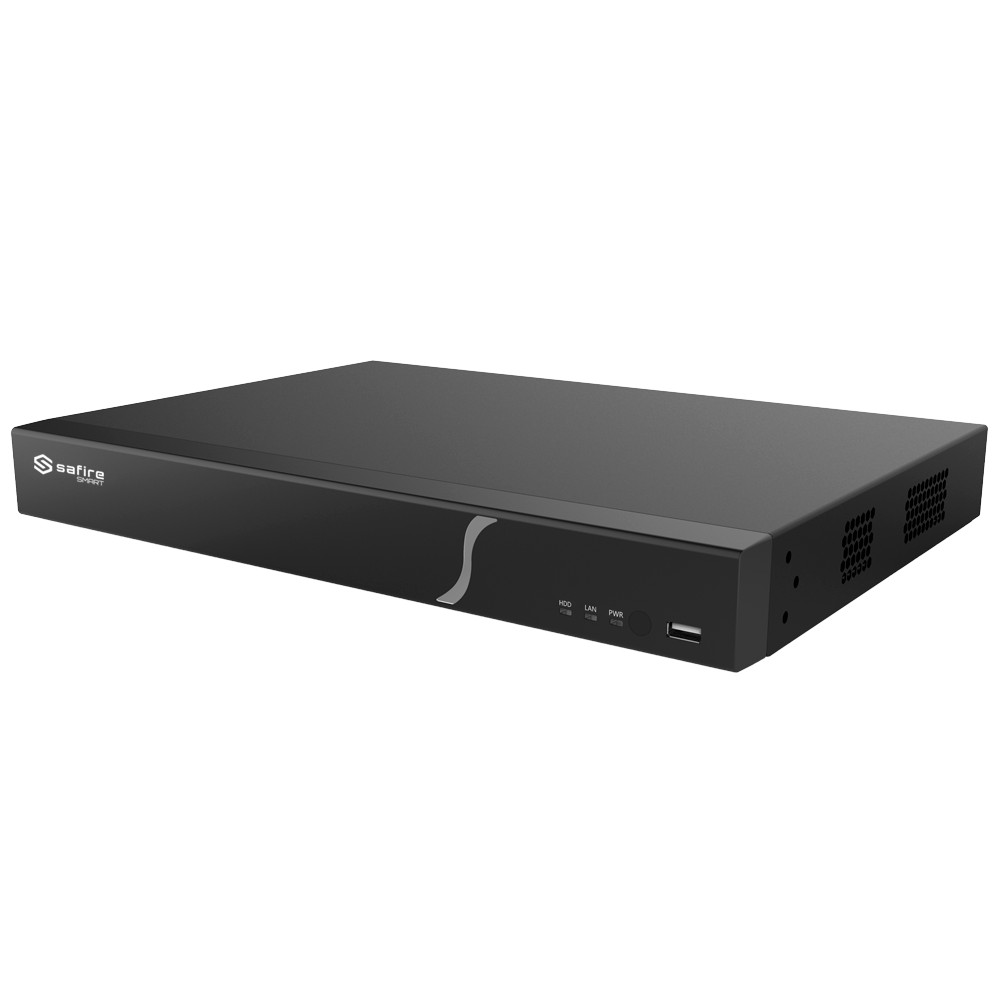

SAFIRE SMART - ANALOGICAL LAWER XVR SERIES 8. - 8CH HDTVI/ HDCVI/ AHD/ CVBS/ 8+8 IP - HDMI 4K Output and VGA/ 2 HDD - Maximum 4K Resolution (6fps) - Audio/ Alarms
€364.35
(IVA included)
€296.22
(Without IVA)
Description
| Mark | Saffire |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 8 BNC channels (replacement) + 8 IP channels (extra) (up to 8 MPX) |
| Video exits | 1 HDMI 4K, 1 VGA, 1 BNC |
| Audio inputs | 8 RCA channels |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reusing the input/audio output |
| Video/Audio compression | H.265 / h.264 |
| Display resolution | HDMI × 1: 3840 × 2160 /1920 × 1080 /1280 × 1024 /1024 × 768 VGA × 1: 1920 × 1080 /1280 × 1024 /1024 × 768 BNC × 1: CVBs |
| BNC input resolution | TVI/AHD/CVI: 4k@15fps, 5mp@20fps, 4MP/3MP/1080p/720p/wd1@30fps |
| Main Stream coding | 4k@6fps /7fps (PAL /NTSC) (only supported by channel 1)) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP / 3MP@12FPS / 15FPS (PAL / NTSC) 4mplite/1080p/720p/wd1/d1@25fps/30fps (PAL/NTSC) |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Bit Rate | 32 kbps ~ 5 Mbps |
| Bandwidth | 16 Mbps (input) / 40 Mbps (output) |
| Alarms | 8 INPUTS / 2 Relay |
| Intelligent Functions | 8CH Intelligent Movement Detection 1CH with detection of the presence of people and vehicles to cross the line or intrusion in an area |
| Recording method | Manual, scheduled and intelligent events |
| Backup | USB / network |
| Internal storage | 2 HDD SATA 3.5 "up to 10TB (not included) |
| Communication | 1 x USB 3.0, 1 x USB 2.0 (y Mouse Backup) / RJ45 (Ethernet) / 1 x E-SATA / RS485 |
| Remote access | Web browser, Safire Smartphone App and Safire Smart VMS Software |
| Food | DC 12 V / 4 A (HDD NO CONSUMPTION <15 W) |
| Dimensions / Weight | 45 (AL) X 380 (LG) x 268 (FD) mm / 1.2 kg |
