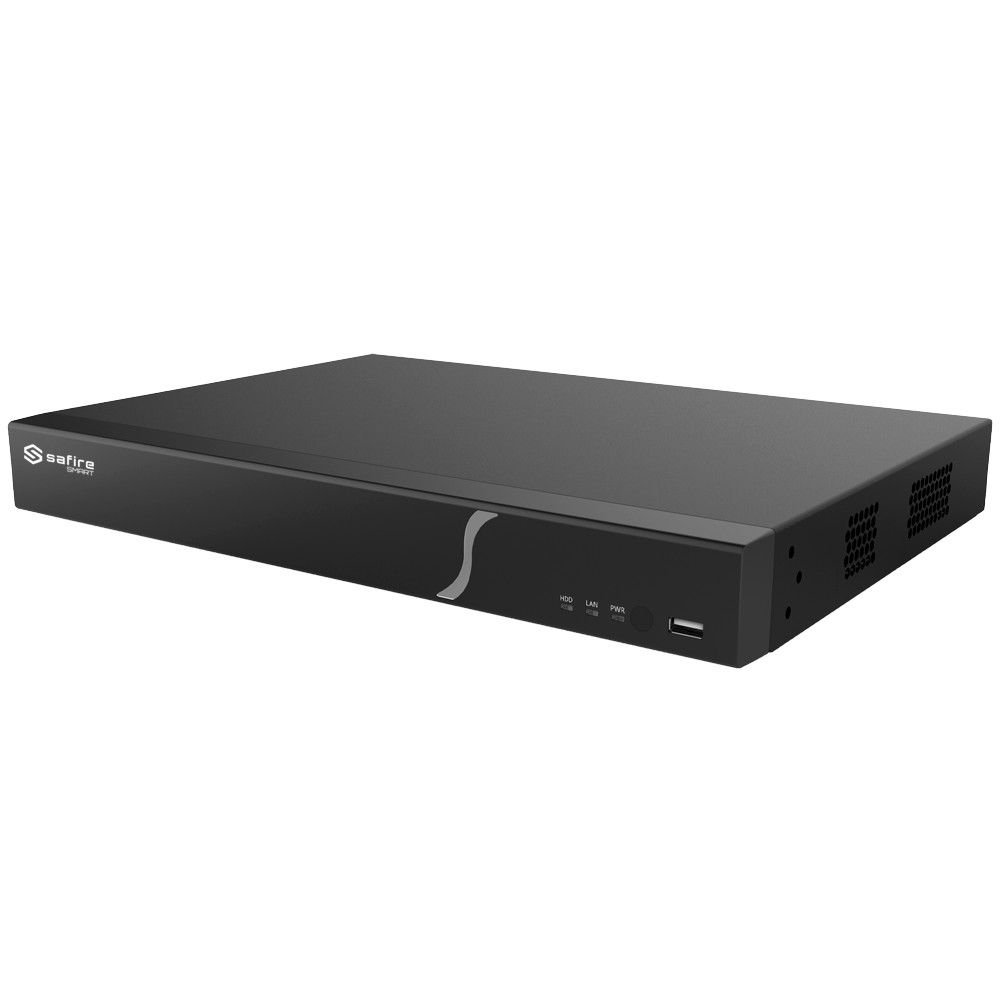

SAFIRE SMART - ANALOGICAL LEARVATOR XVR SERIES 8. - 16CH HDTVI/ HDCVI/ AHD/ CVBS/ 16+8 IP - HDMI 4K Output and VGA/ 2 HDD - Maximum 4K Resolution (15fps) - Audio/ Alarms
€666.75
(IVA included)
€542.07
(Without IVA)
Description
| Mark | Safire Smart |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | By default: 16 bnc channels + 8 IP channels (extra) (up to 8 MPX) |
| Video exits | 1 HDMI 4K, 1 VGA |
| Audio inputs | 8 RCA channels |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reusing the input/audio output |
| Video/Audio compression | H.264/h.265/h.265+ |
| Display resolution | HDMI × 1: 3840 × 2160 /1920 × 1080 /1280 × 1024 VGA × 1: 1920 × 1080 /1280 × 1024 BNC × 1: CVBs IP Channel: 8MP@ 25FPS / 30FPS (PAL / NTSC) |
| BNC input resolution | TVI/AHD/CVI: 4k@15fps, 5mp@20fps, 4MP/3MP/1080p/720p/wd1@30fps |
| Main Stream coding | 4k@ 8fps (PAL/NTSC) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL/NTSC); 4MP/3MP@12fps/15fps (PAL/NTSC) 4MP Lite/1080p/720p/wd1/d1@25fps/30fps (PAL/NTSC) |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Bit Rate | 32kbps ~ 5mbps |
| Bandwidth | 32 Mbps (input) / 96 Mbps (output) |
| Alarms | 16 Entries / 1 Exit |
| Intelligent Functions | 16CH Intelligent Movement Detection 1CH with detection of the presence of people and vehicles to cross the line or intrusion in an area |
| Recording method | Manual, scheduled and intelligent events |
| Backup | USB / network |
| Internal storage | 2 HDD SATA 3.5 "up to 10TB (not included) |
| Communication | 1 x USB 2.0 / 1 x USB 3.0 / RJ45 (Ethernet) / 1 x E-SATA / RS485 |
| Remote access | Web browser, Safire Smartphone App and Safire Smart VMS Software |
| Food | DC 12 V / 4 A (Consumption without HDD <30 W) |
| Dimensions | 45 (AL) X 380 (LG) X 380 (FD) MM |
