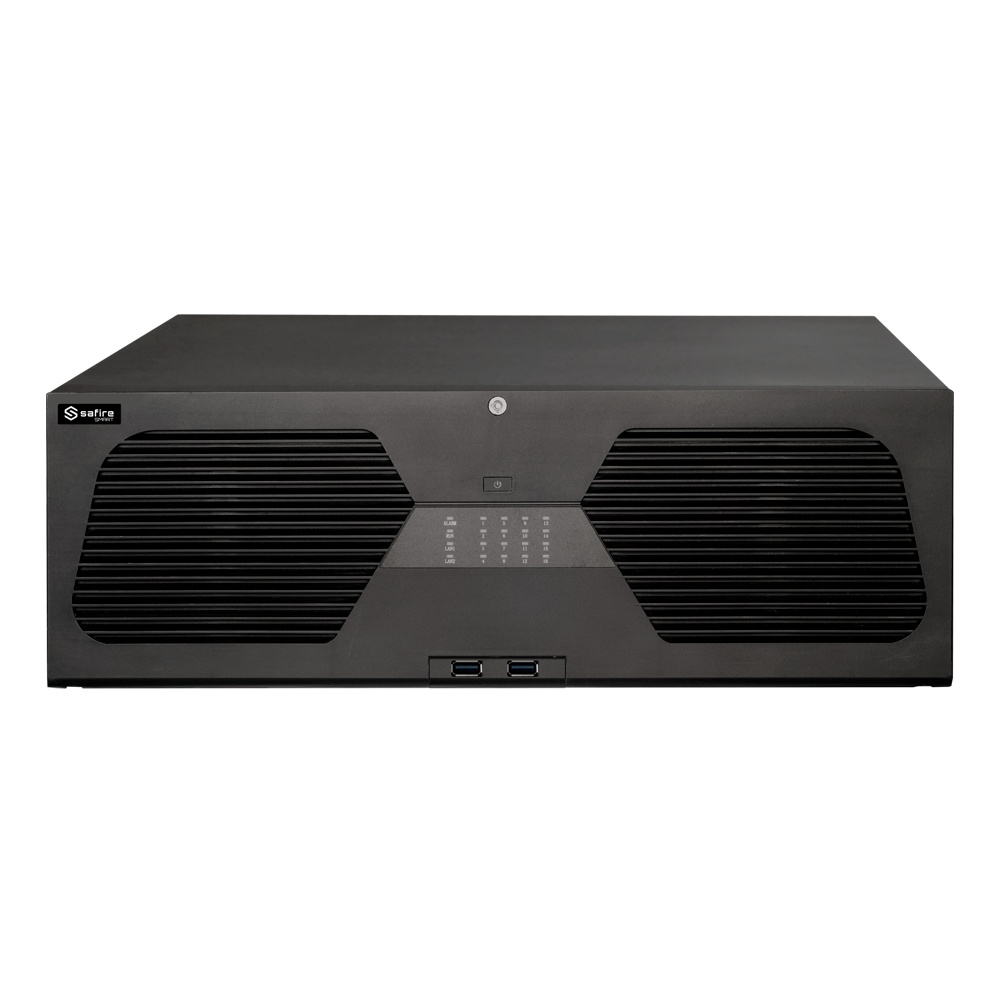

Safire Smart - NVR recorder for Gama A3 IP Cameras. - 128CH Video / Compression H.265s / 8HDD - Resolution up to 16MPX / Band Width 768MBPS - HDMI Up to 8K and VGA / Dewarping Fisheye - Facial Recognition, Video Metadata
€2,178.00
(IVA included)
Description
| Mark | Safire Smart |
| Gamma | A3 |
| IP Cameras inputs | 128 CH IP |
| Compatible IP Cameras | Safire Smart (Native Protocol), Onvif |
| Bidirectional audio | 1 input / 1 RCA output |
| Main Stream recording | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960p/720p/ 960H/D1/CIF |
| Decoding capacity | 1CH 16MPX @ 30FPS 4CH 12MPX @ 30FPS |
| Video Compression Format | H.265s / h.265+ / h.265 / h.264+ / h.264 |
| Audio compression | G.711 (U/A) |
| Total Band Width | 768 mbps input / 768 mbps output |
| Video exits | 1 HDMI 8K, 2 HDMI 4K, 1 HDMI FULLHD / 1 VGA |
| Display resolution | Hdmi1: 7680x4320@60/30, 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 Hdmi2: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 Hdmi3: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI4: 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 *HDMI 1 and VGA produce the same source of video ** When 8K resolution is activated in HDMI 1, HDMI2 is deactivated |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Multi-range | Main output: 1/4/6/8/9/13/6/25/32/36/64 (live view) Auxiliary output 1: 1/4/6/8/9 9/16/25/32/36 (Live viewing) Auxiliary output 2: 1/4/6/8/9/13/16 (wide view) Auxiliary output 3: 1/4/6/8/9/13/16 (wide view) Maximum 132 (64 + 36 + 16 + 16) |
| Recording method | Manual, programmed, movement detection, smart events, alarm input, POS |
| POS FUNCTION | Yes |
| Perimeter protection | Necessary to use Safire Smart 4i1 or 8i2 Cameras Artificial intelligence based on the classification of people, vehicles and two -wheel vehicles in: - Area intrusion - Line passage - Entry in the region - Exit from the region Detailed searches for intelligent events |
| Facial recognition | Safire Samart 4i1 or 8i2 or 8i2 up to 64ch (all channels) Faces detection by NVR itself with any Camera up to 4CH Facial recognition up to a maximum of 16CH Calculation of up to 18 frames/second 32 libraries and up to 10000 facial images Image Search through the recorder, app and software for PC Facial screening on the map or plan Statistical information about facial results per day, week, month or personalized period |
| Video Metadata | With Safire Smart Cameras 4i1 or 8i2 to 64ch (all channels) By NVR itself with any Camera up to 8ch Extraction of human and vehicle characteristics For humans: possibility of extracting up to 13 characteristics (glasses, clothing color, etc.) For vehicles: possibility of extracting up to 5caracteristics (color, type, etc.) |
| Registration | Yes (a Safire Smart registration Camera is required) |
| Dewarping | Supports Fisheye Camera Dewarping |
| Alarms | 16 Entries / 4 Exits |
| External backup | USB / HDD memory USB / CD-RW USB / DVR-RW USB |
| Internal storage | 8x hard disk 3.5 "SATA3.0 to 10 tb (not included) |
| Raid | RAID0, RAID1, RAID5, RAID6 and RAID10 |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/00 / 1000m (Ethernet) / RS485 |
| Remote access | Web browser, Safire Smartphone App and Safire Samart VMS Software |
| Food | ATX200 ≤ 50W (no hard disk) |
| Operating temperature | -10ºC ~ 50ºC, humidity 10 ~ 90% |
| Dimensions / Weight | 90 (AL) X 445 (LG) X 436 (FD) MM / 1.18 kg |
