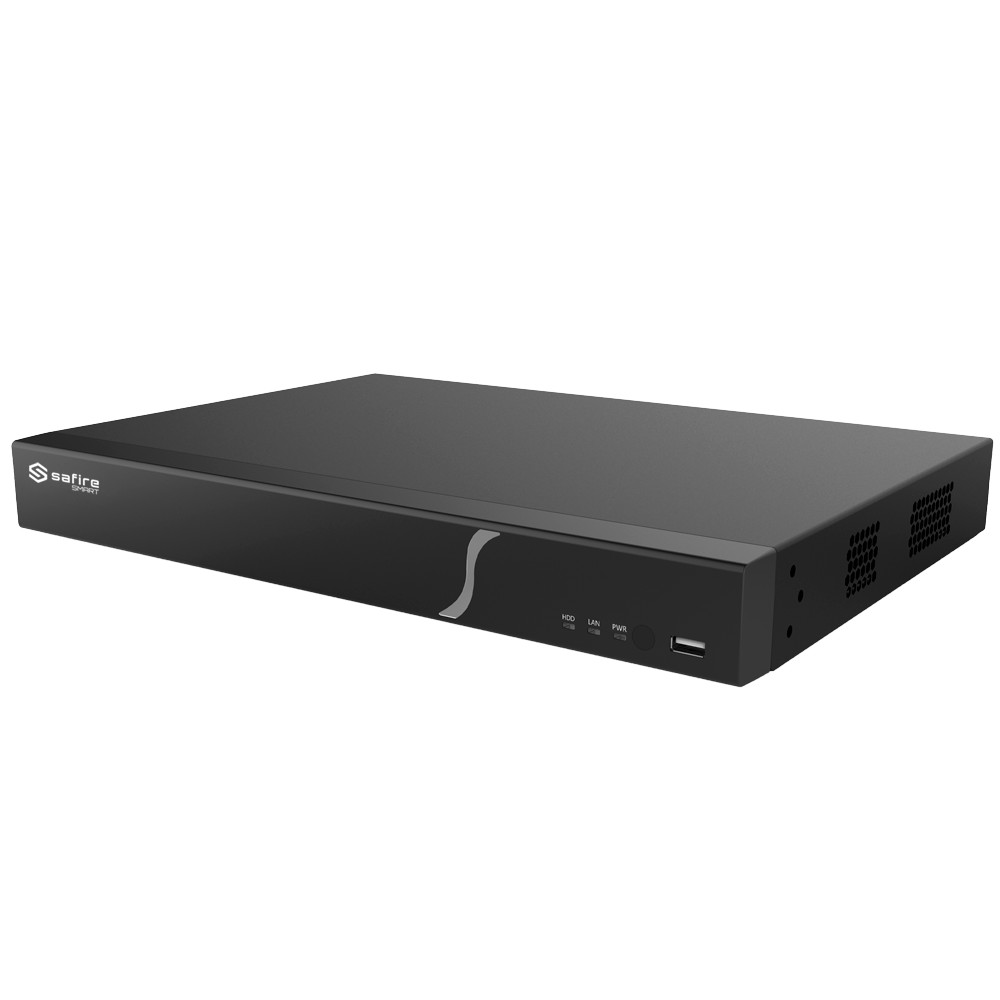

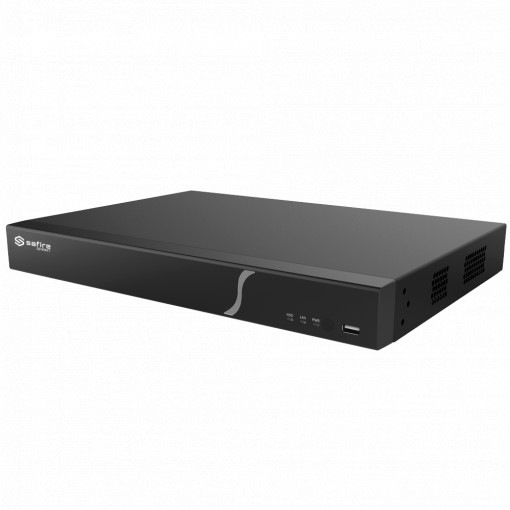

Safire Smart - NVR recorder for Gama B2 chambers. - 16CH POE / Compression H.265s / 2HDD - Resolution up to 12MPX / 160MBPS Band Width - HDMI 4K and VGA / Dewarping Fisheye - Facial Recognition, Video Metadata
€493.50
(IVA included)
€401.22
(Without IVA)
Description
| Mark | Safire Smart |
| Gamma | B2 |
| IP Chambers inputs | 16CH IP |
| Poe doors | 16 RJ45 10/100m ENERGY ≤150W, POE 802.3AF/AT POE [%VAR%] |
| Compatible IP chambers | Safire Smart (Native Protocol), Onvif |
| Bidirectional audio | 1 input / 1 RCA output |
| Main Stream recording | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960p/720p/ 960H/D1/CIF |
| Decoding capacity | 1CH 12MPX @ 20FPS 4CH 1080p @ 30fps |
| Video Compression Format | H.265s / h.265+ / h.265 / h.264+ |
| Audio compression | G.711 (U/A) |
| Total Band Width | 160 mbps input / 160 mbps output |
| Video exits | 1 HDMI 4K / 1 VGA |
| Display resolution | Hdmi: 3840x2160@30fps, 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 *HDMI and VGA can be configured to issue the same video source or different video sources |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Multi-range | Main output: 1/4/6/8/9/13/16 (wide view) Secondary output: 1/4/6/8/9 9 (wide view) AI Mode (preset): max. 16CH (HDMI and VGA simultaneous) was on the available recorder Independent video output: max. 25CH (regardless of HDMI and VGA) |
| Recording method | Manual, programmed, movement detection, smart events, alarm input, POS |
| POS FUNCTION | Yes |
| Perimeter protection | Necessary to use Safire Smart chambers with artificial intelligence Artificial intelligence based on the classification of people, vehicles and two -wheel vehicles in: - Area intrusion - Line passage - Entry in the region - Exit from the region Detailed searches for intelligent events |
| Facial recognition | Safire Samart 4i1 or 8i2 or 16CH (all channels) Faces detection by NVR itself with any chamber up to 2CH Facial recognition up to a maximum of 6CH Calculation of up to 18 frames/second 32 libraries and up to 10000 facial images Image Search through the recorder, app and software for PC Facial screening on the map or plan Statistical information about facial results per day, week, month or personalized period |
| Video Metadata | Necessary to use Safire Smart 4i1 or 8i2 chambers Extraction of human and vehicle characteristics For humans: possibility of extracting up to 13 characteristics (glasses, clothing color, etc.) For vehicles: possibility of extracting up to 5caracteristics (color, type, etc.) |
| Registration | Yes (a Safire Smart registration chamber is required) |
| Dewarping | Supports Fisheye Chamber Dewarping |
| Alarms | 16 Entries / 4 Exits |
| External backup | USB / HDD memory USB / CD-RW USB / DVR-RW USB |
| Internal storage | 2x hard disk 3.5 "SATA3.0 up to 10 tb (not included) |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/00 / 1000m (Ethernet) / RS485 |
| Remote access | Web browser, Safire Smartphone App and Safire Samart VMS Software |
| Food | DC48 V, 3.75a ≤ 20W (no hard disk) |
| Operating temperature | -10ºC ~ 50ºC, humidity 10 ~ 90% |
| Dimensions / Weight | 48.1 (AL) x 300 (LG) x 248.5 (FD) mm / 1.18 kg |
