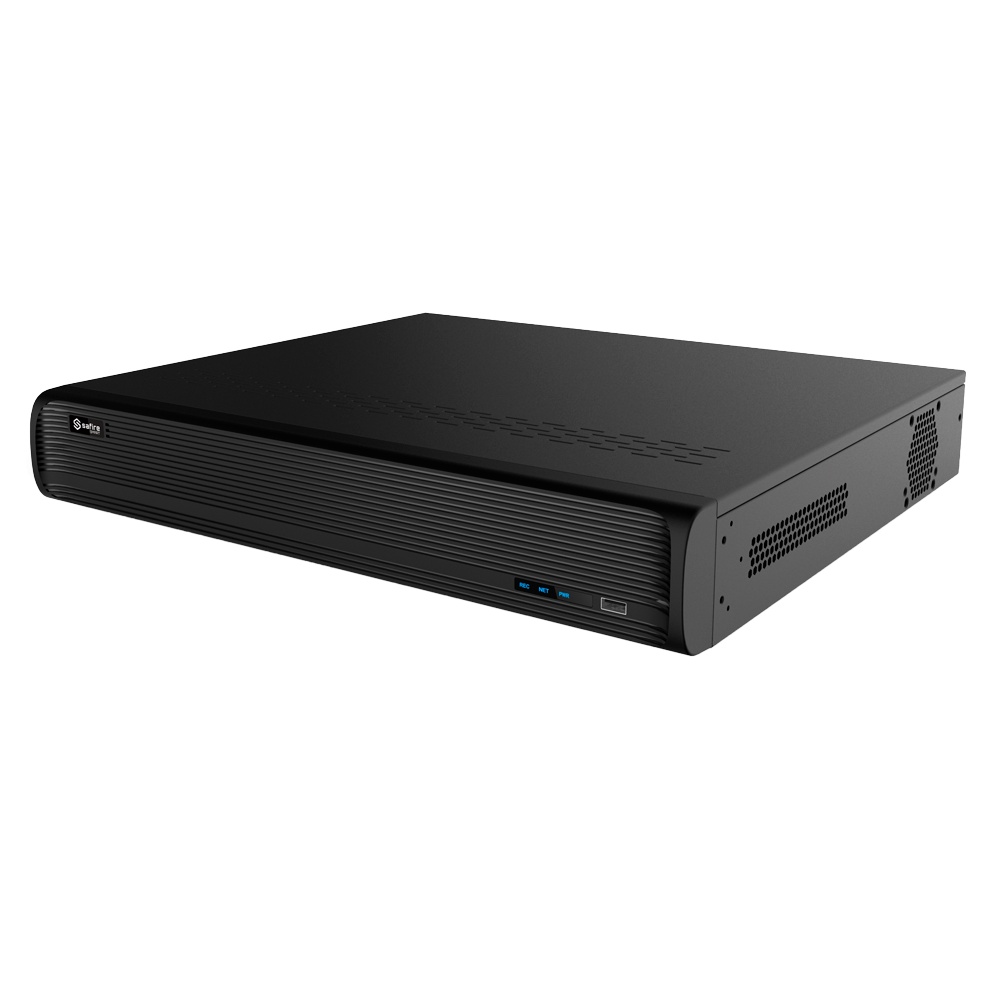

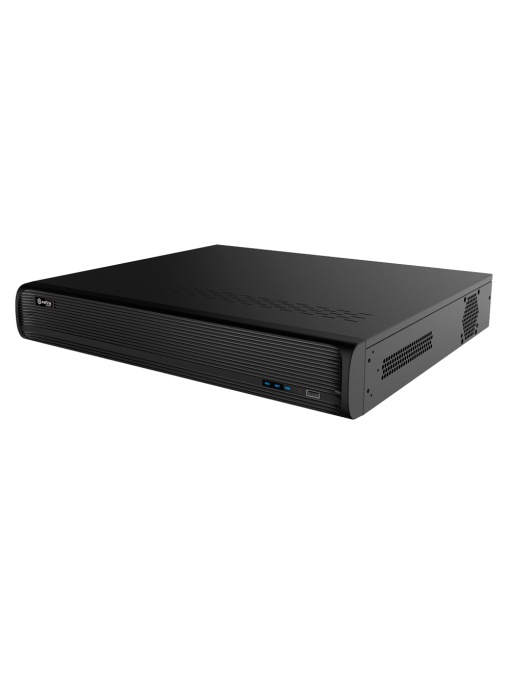

Safire Smart - NVR recorder for Gama B2 chambers. - 32CH Video / Poe 16CH / H.265+ / 4HDD - Resolution Up to 12MPX / 320MBPS Band Width - Facial Recognition / Intelligent Research - HDMI 4K, HDMI FULLHD and VGA / Dewarping Fisheye
€642.60
(IVA included)
€522.44
(Without IVA)
Description
| Mark | Safire Smart |
| Gamma | B2 |
| IP Chambers inputs | 32CH IP |
| Poe doors | 16 RJ45 10/100m ENERGY ≤150W, POE 802.3AF/AT POE [%VAR%] |
| Compatible IP chambers | Safire Smart (Native Protocol), Onvif |
| Bidirectional audio | 1 input / 1 RCA output |
| Main Stream recording | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 × 1024/960p/720p/ 960H/D1/CIF |
| Decoding capacity | 1CH 12MPX @ 20FPS 4CH 1080p @ 30fps |
| Video Compression Format | H.265+ / h.265 / h.264+ / h.264 |
| Audio compression | G.711 (U/A) |
| Total Band Width | 320 mbps input / 256 mbps output |
| Video exits | 1 HDMI 4K, 1HDMI 1080p, 1VGA |
| Display resolution | Hdmi 1: 3840x2160@30fps, 1920x1080, 1280x1024, 1024x768 HDMI 2: 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 *VGA and HDMI 1 are simultaneous *HDMI 1 and HDMI 2 individually |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Multi-range | Main output: 1/4/6/8/9 13/16/25/32/36 (wide view) Aux output: 1/4/6/8/9 (straight view) MAX: 32+9CH LOCAL (LOCATE VIEW) |
| Recording method | Manual, programmed, movement detection, smart events, alarm input, POS |
| POS FUNCTION | Yes |
| Perimeter protection | Necessary to use Safire Smart chambers with artificial intelligence Artificial intelligence based on the classification of people, vehicles and two -wheel vehicles in: - Area intrusion - Line passage - Entry in the region - Exit from the region Detailed searches for intelligent events |
| Intelligent Functions | Image Search via recorder, app and software Truesense Smart Event Searches by Human and Vehicle (needs a camera with Truesense). |
| Facial detection | Up to 2CH by the recorder himself Safire Samart 4i1 or 8i2 or 8i2 up to 32CH (all channels) Graph of faces detection statistics per day, week, month, year. |
| Video Metadata | Up to 2CH by the recorder himself For the classification and extraction of attributes, it is necessary to use the Safire Smart 4i1 or 8i2 chambers to obtain: For humans: possibility of extracting up to 13 characteristics (glasses, clothing color, etc.) For vehicles: possibility of extracting up to 5caracteristics (color, type, etc.) |
| Facial recognition | Facial Recognition up to 6CH Calculation of up to 18 frames/second 32 libraries and up to 10000 facial images |
| Dewarping | Supports Fisheye Chamber Dewarping |
| Alarms | 16 Entries / 4 Exits |
| External backup | USB / HDD memory USB / CD-RW USB / DVR-RW USB |
| Internal storage | 4 x HDD 3.5 "SATA3.0 Up to 10 tb each (not included) |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/00 / 1000m (Ethernet) / RS485 |
| Remote access | Web browser, Safire Smartphone App and Safire Samart VMS Software |
| Food | ATX 300W (POE) |
| Operating temperature | -10ºC ~ 50ºC, humidity 10 ~ 90% |
| Dimensions / Weight | 70 (AL) X 440 (LG) x 390 (FD) mm / 4.44 kg |
