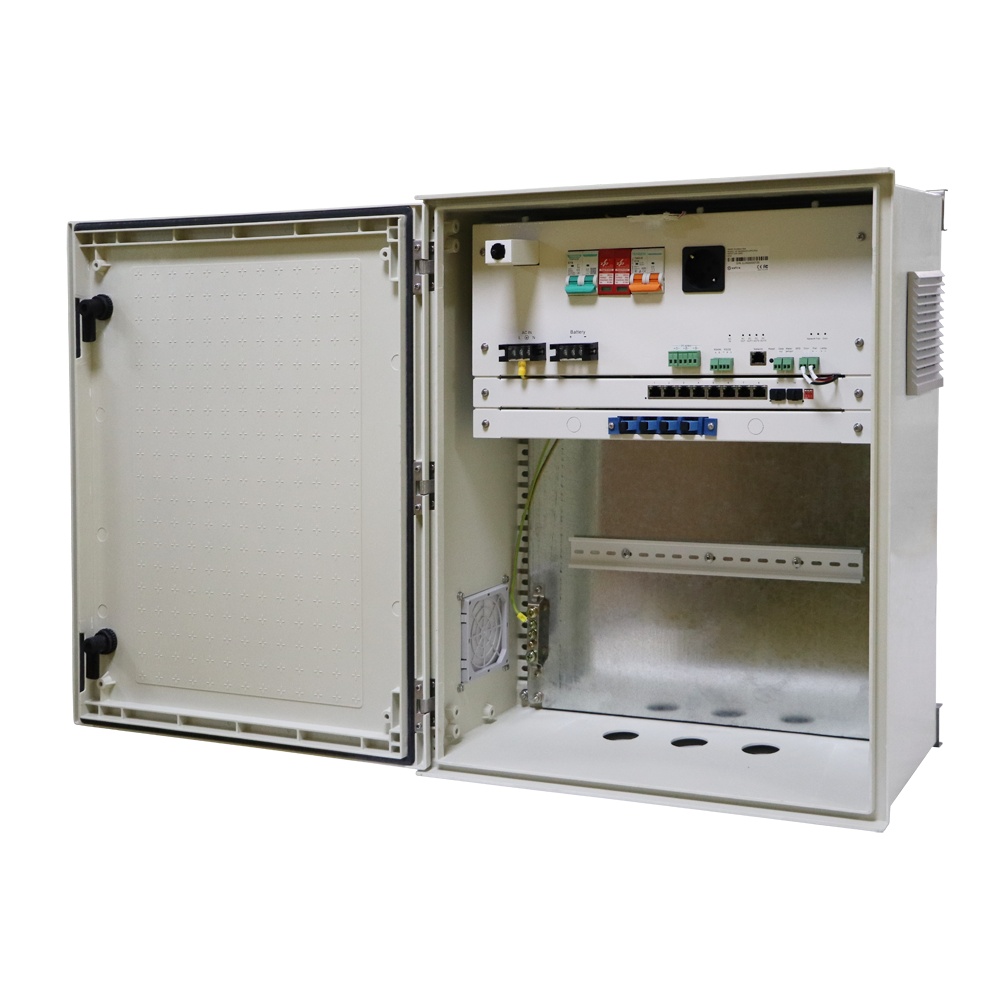

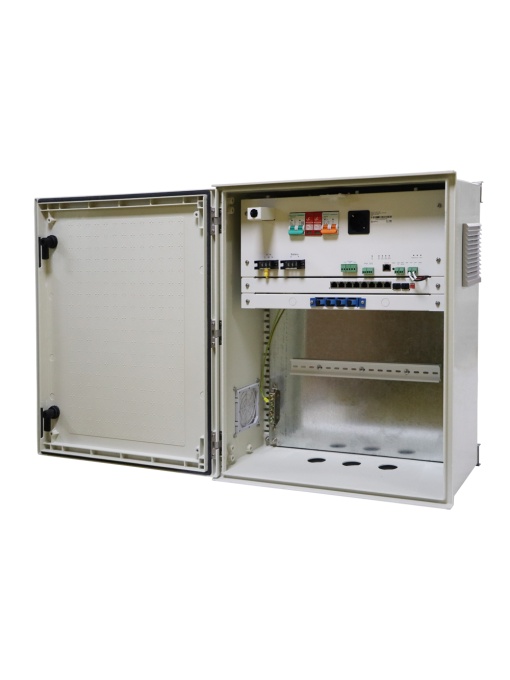

Safire - SMC polyester cabinet - outer dimensions 60x50x23cm - 8 door switch | Fiber Fusion Tray - Management and Maintenance Platform - IP55 Protection Degree / DIN / UPS
€637.88
(IVA included)
€518.60
(Without IVA)
Description
| Mark | Saffire |
| Type | Polyester box with switch and power supply included |
| Security | Double -key lock |
| Power input | AC 100 ~ 240V, 50/60Hz |
| Fiber fusion board | Yes |
| Outlet | Yes, type Europe |
| AC output | 1x CA output controlled at a distance through software. Management software supports the monitoring of voltage and current values |
| DC output | 3x 12V CC, Max. 240W (between outputs 3) |
| Fan | 1x 12V DC |
| Light | DC 12V Internal LED for night maintenance. It comes on when the door is opened |
| Door sensor | Yes |
| Contactor | Ca 2p16a, installed in a din gutter |
| Protection against overvoltages | AC Protection, 385 V AC @ 20 Ka 2p, -40 ~ 70 ℃ Nominal discharge current 20 kA (8/20 μs), maximum discharge current 40 kA (8/20 μ s) Restricted voltage ≤ 1.8 kV, with remote alarm function in the software |
| Switch Ethernet | 1 ~ 8 10/00/1000m base-t rj45 9 ~ 10 1000m SFP |
| Serial | RS485 / RS232 |
| Alarm input | 3 entries, dry contact *Input 1 used by defect for the contact of the door |
| Management software | Yes |
| Management controller | Reboot button 1x RJ45 10/100m Bast-TX 8 LED STATE INDICATORS |
| Material | SMC (fiberglass reinforced polyester resin) |
| UPS | Yes (Installation of a 12V reserve battery) |
| Working temperature | -20 ℃ ~ 70 ℃ |
| Storage temperature | -40 ℃ ~ 85 ℃ |
| Humidity | 0 ~ 90% without condensation |
| External dimensions | 600 (AL) X 500 (LG) X 230 (FD) MM |
| Color | White |
| Net weight | 15kg |
