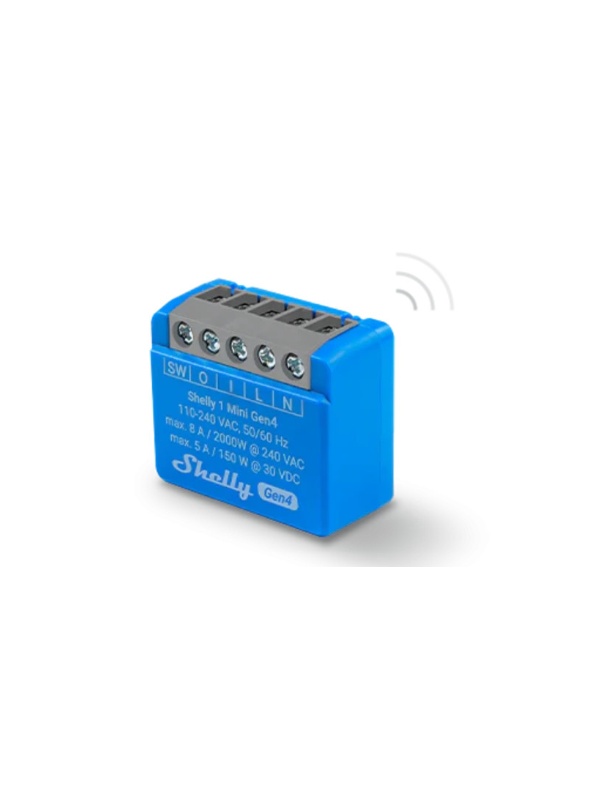

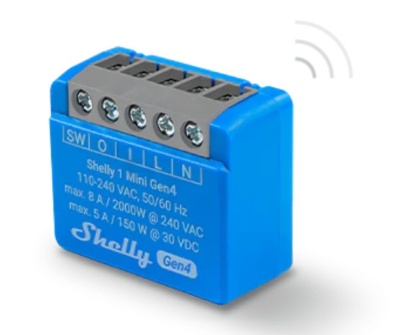

Shelly 1 Mini Gen4 - Mini WiFi/Zigbee/Matter 110/240VAC Automation Module - 8a
€19.10
(IVA included)
€15.53
(Without IVA)
Delivery cost is not included
Description
The Shelly 1 Mini Gen4 is an ultra -compact smart switch with dry contact (potential free), ideal for controlling lights, fans, small appliances (up to 8a) and gate control systems, watering, etc. It supports Wi-Fi, Zigbee and Bluetooth connection and is compatible with matter.
It can be remotely controlled through smartphone, tablet, PC or domotic systems, working autonomously on a local Wi-Fi network or through cloud services.
Thanks to its small size, it can be easily installed in standard apparatus boxes, behind switches or outlets, even in very limited spaces. Includes an incorporated web interface for control, monitoring and configuration.
MAIN CHARACTERISTICS
● Compact switch with dry contact (without potential) to control various devices
● Multiprotocol connectivity: Wi-Fi, Zigbee, Bluetooth
● Matter compatible (official certification)
● Switching capacity: up to 8 to 240 V AC or 5 to 30 V DC
● Ideal for retrofit: It is installed behind existing sockets and switches
● Remote control via App Shelly Smart Control, Browser or Domotic Platforms
● does not require hub: works autonomously on a local Wi-Fi network
● Compatible with Alexa, Google Home, Samsung Smartthings, Home Assistant, among others
● Supports local schedules, scenes and actions
● Web interface incorporated for local control and configuration
● Advanced scripting support, https, mqtts, web sockets (input and output)
● KNX compatible (KNXNET/IP)
● Ble Gateway Functionality: Integrates Shelly Blu devices
● Zigbee and integrated Wi-Fi range extensor
● Improved processor for higher performance and response
● Integrated multifunction button for pairing and reset
● Monochrome LED indication with defined states
● Electric interfaces:
· An input for button/switch
· Two food inputs (n and l)
· Dry contact terminals (potential free)
Cases of Use
✅ Remote control of electrical appliances: turn on/off lights, fans or other devices remotely
✅ Integration in Domotic Systems: Automatize devices with custom scenes and schedules
✅ Retrofitting in reduced spaces: Ideal for installing behind switches, sockets or small apparatus boxes
✅ Low voltage switching: thanks to dry contact, it allows you to control low voltage devices safely
✅ Flexible connectivity: Choose from Wi-Fi, Zigbee or Bluetooth, according to your infrastructure
✅ Control from anywhere: Remote access through internet connection
Technical Specifications
◾ Physical
- Dimensions (a × l × p): 29 × 34 × 16 ± 0.5 mm
- Weight: 19 ± 1 g
- Binary max. Terminals: 0.4 Nm
- Conductor section: 0.2 to 2.5 mm²
· Solid, enclosed or with tips wires
- Isolation length to be removed: 6 to 7 mm
- Assembly: Power box
- BOX MATERIAL: Plastic
-Box color: blue (c-95%; m-53%; y-0%; k-0%)
- Connectors Color: Gray Gray
◾ Environmental
- Operating temperature: -20 ºC to 40 ° C
- Relative humidity: 30 % to 70 % rh
- Maximum altitude: 2000 m
◾ Electric
- Food: 110–240 V AC
- Own consumption: <1.2 W
- Relay: Dry contact in, 1 pole, µ-Contact
- Max tension. Switching: 240 V AC / 30 V DC
- Max current. switching: 8 to / 240 v ac or 5 a / 30 v dc
- Dry contact (without potential): Yes
- Protection against overtension, overcurrent and overload: not applicable
- Recommended external protection:
· Curved Bob B or C
· Nominal current max.: 10 A
· Minimum cutting power: 6 ka
· Energy limitation class: 3
◾ Sensors and meters
- Internal Temperature Sensor: Yes
◾ Radio
- Wi-Fi
· Protocol: IEEE 802.11 B/g/n/ax
· RF Band: 2412 - 2472 MHz
· Max power. RF: <20 dbm
· Range: up to 30 m (interior), up to 50 m (outer)
- Bluetooth
· Protocol: 5.0
· RF Band: 2402 - 2480 MHz
· Max power. RF: <4 dbm
· Range: up to 10 m (interior), up to 30 m (outer)
- Zigbee
· Protocol: IEEE 802.15.4
· RF Band: 2400 - 2483.5 MHz
· Max power. RF: <20 dbm
· Range: up to 100 m (interior), up to 300 m (outer)
◾ Microcontrol unit
-CPU: Esp-Shelly-C68F
- Flash Memory: 8 MB
◾ Firmware features
- Schedules: Up to 20
- Webhooks: Up to 20, with 5 URLs per webhook
- Scripting: Yes
- MQTT/MQTTS: Yes
- Compatibility with: Alexa, Google Smart Home, Smartthings, Home Assistant, Knx
- Support for Websockets (input/output), https, apis http
- Virtual components: yes
- Integration with Shelly Blu devices via Ble Gateway: Yes
It can be remotely controlled through smartphone, tablet, PC or domotic systems, working autonomously on a local Wi-Fi network or through cloud services.
Thanks to its small size, it can be easily installed in standard apparatus boxes, behind switches or outlets, even in very limited spaces. Includes an incorporated web interface for control, monitoring and configuration.
MAIN CHARACTERISTICS
● Compact switch with dry contact (without potential) to control various devices
● Multiprotocol connectivity: Wi-Fi, Zigbee, Bluetooth
● Matter compatible (official certification)
● Switching capacity: up to 8 to 240 V AC or 5 to 30 V DC
● Ideal for retrofit: It is installed behind existing sockets and switches
● Remote control via App Shelly Smart Control, Browser or Domotic Platforms
● does not require hub: works autonomously on a local Wi-Fi network
● Compatible with Alexa, Google Home, Samsung Smartthings, Home Assistant, among others
● Supports local schedules, scenes and actions
● Web interface incorporated for local control and configuration
● Advanced scripting support, https, mqtts, web sockets (input and output)
● KNX compatible (KNXNET/IP)
● Ble Gateway Functionality: Integrates Shelly Blu devices
● Zigbee and integrated Wi-Fi range extensor
● Improved processor for higher performance and response
● Integrated multifunction button for pairing and reset
● Monochrome LED indication with defined states
● Electric interfaces:
· An input for button/switch
· Two food inputs (n and l)
· Dry contact terminals (potential free)
Cases of Use
✅ Remote control of electrical appliances: turn on/off lights, fans or other devices remotely
✅ Integration in Domotic Systems: Automatize devices with custom scenes and schedules
✅ Retrofitting in reduced spaces: Ideal for installing behind switches, sockets or small apparatus boxes
✅ Low voltage switching: thanks to dry contact, it allows you to control low voltage devices safely
✅ Flexible connectivity: Choose from Wi-Fi, Zigbee or Bluetooth, according to your infrastructure
✅ Control from anywhere: Remote access through internet connection
Technical Specifications
◾ Physical
- Dimensions (a × l × p): 29 × 34 × 16 ± 0.5 mm
- Weight: 19 ± 1 g
- Binary max. Terminals: 0.4 Nm
- Conductor section: 0.2 to 2.5 mm²
· Solid, enclosed or with tips wires
- Isolation length to be removed: 6 to 7 mm
- Assembly: Power box
- BOX MATERIAL: Plastic
-Box color: blue (c-95%; m-53%; y-0%; k-0%)
- Connectors Color: Gray Gray
◾ Environmental
- Operating temperature: -20 ºC to 40 ° C
- Relative humidity: 30 % to 70 % rh
- Maximum altitude: 2000 m
◾ Electric
- Food: 110–240 V AC
- Own consumption: <1.2 W
- Relay: Dry contact in, 1 pole, µ-Contact
- Max tension. Switching: 240 V AC / 30 V DC
- Max current. switching: 8 to / 240 v ac or 5 a / 30 v dc
- Dry contact (without potential): Yes
- Protection against overtension, overcurrent and overload: not applicable
- Recommended external protection:
· Curved Bob B or C
· Nominal current max.: 10 A
· Minimum cutting power: 6 ka
· Energy limitation class: 3
◾ Sensors and meters
- Internal Temperature Sensor: Yes
◾ Radio
- Wi-Fi
· Protocol: IEEE 802.11 B/g/n/ax
· RF Band: 2412 - 2472 MHz
· Max power. RF: <20 dbm
· Range: up to 30 m (interior), up to 50 m (outer)
- Bluetooth
· Protocol: 5.0
· RF Band: 2402 - 2480 MHz
· Max power. RF: <4 dbm
· Range: up to 10 m (interior), up to 30 m (outer)
- Zigbee
· Protocol: IEEE 802.15.4
· RF Band: 2400 - 2483.5 MHz
· Max power. RF: <20 dbm
· Range: up to 100 m (interior), up to 300 m (outer)
◾ Microcontrol unit
-CPU: Esp-Shelly-C68F
- Flash Memory: 8 MB
◾ Firmware features
- Schedules: Up to 20
- Webhooks: Up to 20, with 5 URLs per webhook
- Scripting: Yes
- MQTT/MQTTS: Yes
- Compatibility with: Alexa, Google Smart Home, Smartthings, Home Assistant, Knx
- Support for Websockets (input/output), https, apis http
- Virtual components: yes
- Integration with Shelly Blu devices via Ble Gateway: Yes
