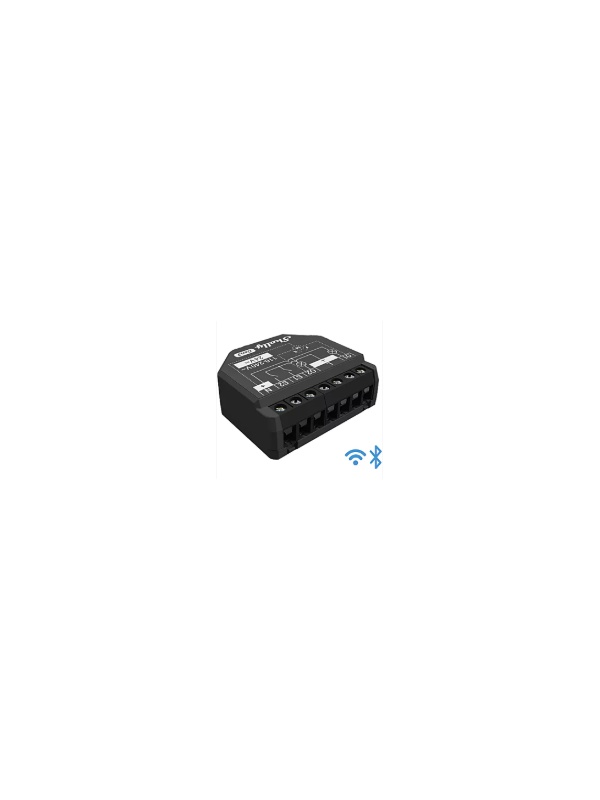

Shelly 2pm Gen3 - Double switch module for WiFi automation w/ electric lick control and power measurement
Description
The Shelly 2pm Gen3 is a smart, two -channel, power -measured switch to control two electrical circuits/devices or control of an electric stock (or other bidirectional AC device).
It is ideal for installing standard wall electric boxes, behind lightning outlets or light switches, even in tightly tight spaces.
The Shelly 2pm Gen3 can be accessed, remotely controlled and monitored from anywhere, where the user has internet connectivity (through a mobile phone, tablet, PC), as long as the device is connected to a Wi-Fi and the Internet router.
It can work autonomously on a local Wi-Fi network or be operated through domestic automation services. In addition, it has an integrated web interface that can be used to monitor and control the device as well as adjust your settings.
This device has an improved processor and more memory compared to its predecessor, as well as stronger and more durability terminals.
✅ Main characteristics:
◾ Two -channel control: Allows you to remotely manage/monitor two electrical circuits.
◾ Buddy control: Allows you to control/adjust the position of blinds, curtains, awnings, sliding doors and other systems with bidirectional engine.
◾ Energy measurement: monitors energy consumption in each channel for greater efficiency.
◾ Control of blades inclination: Perfect for Venezian blinds - allows you to control the slope to let the right amount of light come in.
◾ Wi-Fi and Bluetooth connectivity: You don't need hub! Control everything through the Shelly Smart Control application or your favorite voice assistant.
◾ Integrated web interface: has a web interface for monitoring, control and settings adjustment.
◾ New processor-ESHELLY-C38F-with better performance.
◾ Improved durability binding terminals.
◾ Wi-Fi range extensor (for IoT devices) and Bluetooth gateway (for shelly Blu devices).
◾ Allows the use of virtual components.
◾ Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and Custom Certificates.
◾ Supports communication KNXNET/IP
✅ Specifications:
◾ Electric
- Food: 110 - 240V AC / 24V DC ± 10%
- Energy consumption: <1.4 W
- Recommended external protection:
· Founding characteristics B or C,
· Nominal current max.: 16A
· Homelessness max.: 6 KA,
· Energy limitation class 3
- Output circuits
· Maximum switching voltage: 240V AC / 30V DC
· Maximum switching current AC:
10a per channel,
16a in total,
18th Total Peak
· Maximum switching current DC: 10 a
- Sensors and meters
· Voltmeter (AC): Yes
· Ammeter (AC): Yes
· Internal temperature sensor: yes
◾ Connectivity
- Wi-Fi
· Protocol: 802.11 b/g/n
· RF band: 2412 - 2472 мhz
· RF Maximum Power: <20 DBM
· Range:
Up to 30m in interiors and
up to 50m outdoors
(depends on local conditions)
- Bluetooth
· Protocol: 4.2
· RF Band: 2402 - 2480 MHz
· Maximum RF power: <4 dbm
· Range:
Up to 10m in interiors and
up to 30m in outer
(depends on local conditions)
◾ Microcontroller
-CPU: Esp-Shelly-C38F
- Flash Memory: 8 MB
◾ Firmware capabilities
- Schedules: 20
- Webhooks (actions by URL): 20 with up to 5 URLs per webhook
- Scripting: Yes
- MQTT: Yes
◾ Environmental specifications
- Operating temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% rh
- Maximum altitude: 2000 m
◾ Physical characteristics
- Assembly: for electric equipment box
- Conductor section: 0.2 to 2.5 mm² (24 to 14 AWG)
- Carcass Material: Plastic
- Carcass color: Black
- Terminal color: Black
- Weight: 30 g
- Dimensions (AXLXP): 37x42x16 ± 0.5 mm
