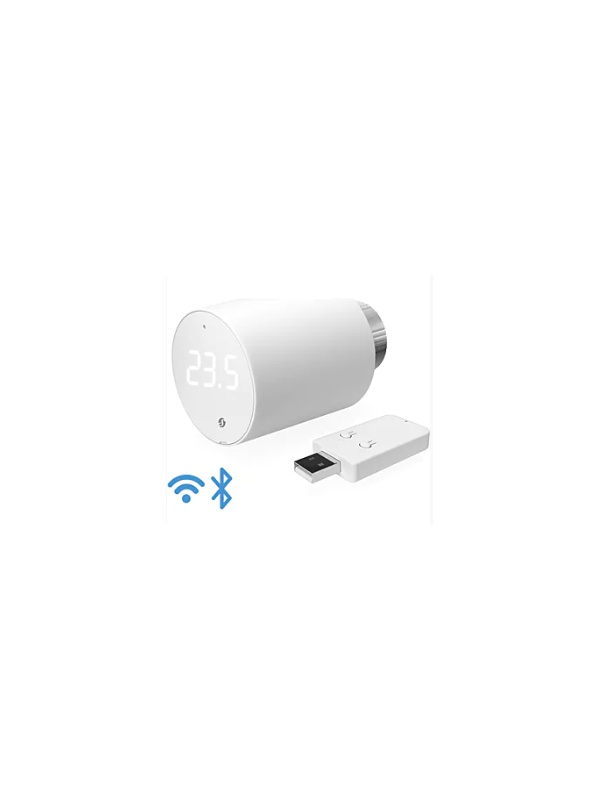

Shelly Blu TRV Single Pack - Bluetooth -controlled thermostatic valve head + gateway gen3
Description
Shelly Blu TRV is a thermostatic valve head with Bluetooth connectivity to apply to a water radiator body body. It controls the temperature of a division (with an accuracy of ± 0.1 ° C) Changing the flow of hot water through the radiator.
If necessary, the temperature can be changed at any time, running the device rotary button to the left or right, or through your mobile phone, tablet or PC. And for those moments when you need a fast warming, Boost mode allows you to rapidly raise the temperature of your division to the value you want.
With smart programming, Shelly Blu TRV allows you to align the warming of a division with your daily routines, optimizing both comfort and energy efficiency.
For smarter control and higher temperature accuracy, this thermostatic valve supports external sensors such as Shelly Blu Door/Window and Shelly Blu H&T, which makes it a versatile addition to any home heating system.
It is fed by 2 AA (1.5V) batteries and, in order to use it, needs a gateway (included in the packaging) as it uses Bluetooth technology.
✅ Characteristics:
◾ Operated by Bluetooth and with Wi-Fi support (via gateway).
◾ Battery life of up to 2 years, depending on daily use (2 AA batteries included).
◾ Precise temperature control (adjustable at ± 0.1 ° C).
◾ Boost mode for fast heating of the environment.
◾ Has a 7 segments LED display to see the temperature when you are at home.
◾ Allows you to define daily schedules to keep your home hot and save energy.
◾ Compatible with Shelly Blu H&T and Shelly Blu Door/Window sensors, associated with Blu Gateway Gen3.
◾ Integration with most smart houses systems.
◾ Packaging includes a 3rd generation gateway (GEN3) of the USB Dongle type.
◾ Gateway can be connected to any USB power supply, charger or device with a USB-A port (with power exceeding 5 W).
◾ Includes adapters for most valves on the market.
✅ Specifications:
◾ Physical
- Size (a x d): 78 x Ø54 mm / 3.07xø2.13
- Weight: 107 g / 3.77 Oz
- Assembly: M30 / 15
- Mounting ring material: nickel -brass
- Carcass Material: Plastic
- Carcass Color: White
◾ Environmental
- Operating Temperature: -20 ° с a +60 ° с / 68 ° F to 140 ° F
- Humidity: 25% to 80% rh
- Degree of pollution: 2
◾ Electric
- Food: 2x AA, 1.5 V (included)
- Estimated battery life: up to 2 years
◾ Sensors, meters
- Temperature sensor: yes
◾ Bluetooth radio
- Protocol: 4.2
- RF Band: 2400 - 2483.5 MHz
- Maximum RF power: <5 dbm
- Range:
· Up to 30m outdoors
· Up to 10m in closed environments (depending on local conditions)
◾ Firmware capabilities
- Schedules: Yes
- Encryptation: AES (CCM mode)
✅ SUPPORTED VALVES:
◾ Directly, without adapter:
- M30 x 1.5
◾ With adapter (included in the package):
- Damns:
· RA
· Rav
· RAVL
- Caleffi
- Giacomini
- M28 x 1.5:
· Sam
· Slovarm
· Comap
· Markardys
· TA
· Herz
· MMA
· Remagg
· Pont to Mousson
