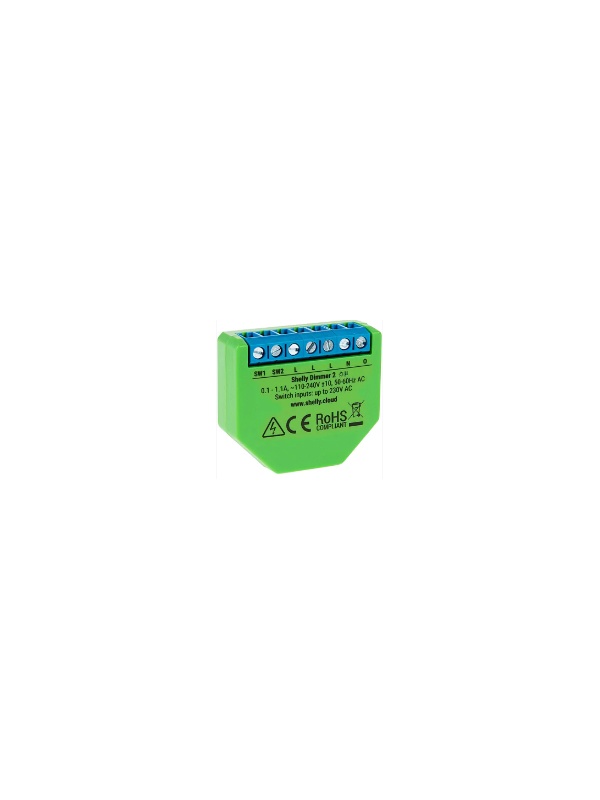

Shelly Dimmer 2 - Intelligent WiFi Dimmer Controller Module for Lighting -

Description

Shelly Dimmer 2 is designed to be used in virtually every possible electrical installations around the world. Provides a complete set of dimmer features, supports tensions from 110 to 230V and can be installed without using the neutral wire. He can control a wide range of halogen lights and "dimible" led lamps (with adjustable light intensity).


Characteristics:
● Does not need hub.
● Works neutral wireless.
● Allows you to turn on/off and control the light intensity.
● Includes special internal temperature sensor for overheating protection.
● Designed to fit in most apparatus boxes (behind the switch).
● Can be integrated to work with all other Shelly devices.
● Compatible with Android, iOS, Amazon Alexa, Google Assistant, and domotic servers using MQTT, Coap, and Rest Api.

SPECIFICATIONS:
◾ Power supply: AC 110-230V ± 10%, 50/60Hz
◾ Channels: 1 channel
◾ General and special functions:
- Intelligent turn/off: yes
- Local and remote control: yes
-Born from the sun/sunset: yes
- Weekly time: yes
- ul option listed: no
- Protection against overheating: yes
- Overload Protection: Yes
- Power measurement: yes
- Decreased luminous intensity (dimming): yes
- Works neutral wireless: yes
- color change: no
- Pre-defined effects: yes
◾ Supported devices:
- adjustable LED lamps: 50-200va / 10W - 200W
- Incandescent and halogen lamps: 10-220W
- Resistive/inductive loads and ferromagnetic transformers 50-150va
◾ Connectivity:
- Wireless Protocol/WiFi: 802.11 B/g/N
- Radio frequency: 2400 - 2500 MHz
- Radio signal power: 1mw
- reach up to 50m outdoors and up to 30m indoors (depending on building materials);
◾ General
- Device energy consumption: <1 W
- Operating temperature: 0 to + 35 ° C
- Size: 42mm x 36mm x 14 mm
