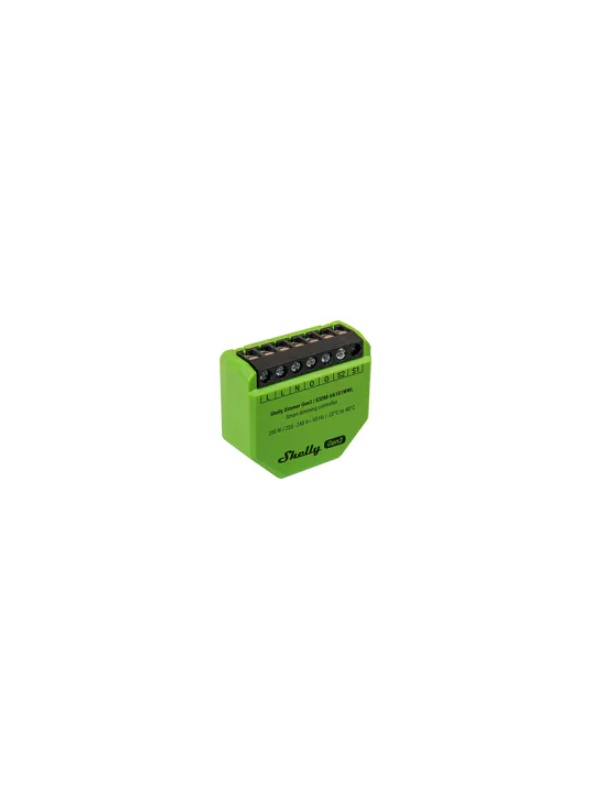

Shelly Dimmer Gen3 - WiFi Smart Dimmer Controller Module for Lighting
€42.50
(IVA included)
€34.55
(Without IVA)
Delivery cost is not included
Description
Shelly Dimmer Gen3 is a smart controller (dimmer) that allows you to regulate the intensity of the lighting of your home simply and accurately, even in neutral wireless installations*. With the new 8 MB ESHELLY-C3 chip, it offers greater performance, better energy efficiency and advanced features.
It can be controlled locally via Wi-Fi or remotely via cloud, and easily integrates with domootic systems and voice assistants. Bluetooth connection facilitates the initial configuration, while the incorporated web interface makes the setting adjustment fast and intuitive.
Support schedules, night mode, energy measurement (if you have neutral on) and is compatible with a wide range of adjustable lamps and switches. Compact and versatile, adapts to different installation scenarios, ensuring comfort, efficiency and total lighting control.
Main features:
● New processor: Esp-Shelly-C3 chip with 8 MB of memory
● Terminals more resistant
● Wi-Fi and Bluetooth gateway range extensor and gateway
● Support for scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and Custom Certificates
● Without the need for hub - direct control through the Shelly Smart Control application, compatible with various platforms, protocols and voice assistants (Alexa, Home Assistant, among others)
● Compatible with KNXNET/IP communication
● Works neutral wireless - requires bypass when the load is less than 20W
● Night mode - Creates comfortable ambient lighting with automatically adjusted shine in the defined hours
● Energy measurement - precise monitoring of consumption on each channel (when the neutral is on)
● Operation via Wi-Fi-direct connection to the network without the need for hub
● Gateway Ble - receives Bluetooth signals from Shelly Blu devices and reeves to cloud or other local devices
● Compatible with wide range of lamps:
- adjustable LED lamps up to 150W
- Incandescent lamps up to 200W
- Halogeneous lamps up to 200W
- Transformers with iron core and low voltage lamps up to 200va
- Regulatible constant electronic transformers up to 200W
● Flexible input control - compatible with existing switches (simple or double button)
● Smart schedules-Define personalized or birth/sunset based schedules
Technical Specifications:
◾ Food:
- Power voltage: 220–240v ~ 50Hz
- Energy consumption: <1.5W
- Works without neutral: yes
- Minimum load without neutral and without bypass: 20W
- Type of regulation: descendant phase (trailing edge)
- Maximum output power: 200W
- Protection against short circuit
- Recommended external protection:
· 16A, curve B or C
· Cut capacity: 6ka
· Energy limitation class 3
◾ Measurements (if neutral connected):
- Voltmeter range: 180V - 240V AC
- Voltmeter accuracy: ± 5%
- Gama do ammeter: 0a - 3a
- Creak accuracy: ± 5%
◾ Internal Temperature Sensor: Yes
◾ Supported load types:
- Adjustable LED lamps: up to 150W
- Incandescent lamps: Until 200W
- Halogenean lamps: Until 200W
- Transformers with iron core: up to 200va
- Constant current electron transformers: Until 200W
◾ Connectivity:
- Wi-Fi: 802.11 B/g/n
· Band: 2412–2472 MHz
· Max power. RF: <20 dbm
· Range (construction dependent):
up to 50m (exterior)
up to 30 m (interior)
- Bluetooth: Version 4.2
· Band: 2402–2480 MHz
· Max power. RF: <4 dbm
· Range (construction dependent):
up to 30 m (outer)
up to 10 m (interior)
◾ Microcontroller and memory
- Main CPU: ESP32-C3
- Co-processor: STM32 G051
- Clock frequency: 40 MHz
- Flash Memory: 8 MB
◾ Firmware features
- Schedules: 20
- Webhooks: 20 with up to 5 URLs each
- Scripting/MQTT: Yes
- Advanced schedules: yes
- Storage of value (kvs): yes
◾ Materials
- BOX MATERIAL: Plastic
- Colors: Box: Green-Lima / Printing: Black / Connectors: Black
◾ Operating conditions:
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% rh
◾ Weight: 24.3 g
◾ Dimensions: 38 x 42.5 x 16.5 mm
Grades
◾ Shelly Dimmer Gen3 can be installed neutral wireless. However, when used in this way and the load is less than 20 W, it is necessary to install a Shelly Bypass (sold separately) to ensure stable functioning and avoid sparkling or flaws in lighting control.
◾ The energy measurement functionality (voltage, current and consumption) is only available when the device is connected with neutral wire.
IMPORTANT:
Shelly Dimmer Gen3 is not compatible with constant voltage drivers, such as those used in 12 V or 24 V -powered LED tapes. It is compatible with adjustable constant current transformers or adjustable lamps, which are connected directly to the electrical network (230 V ~).
It can be controlled locally via Wi-Fi or remotely via cloud, and easily integrates with domootic systems and voice assistants. Bluetooth connection facilitates the initial configuration, while the incorporated web interface makes the setting adjustment fast and intuitive.
Support schedules, night mode, energy measurement (if you have neutral on) and is compatible with a wide range of adjustable lamps and switches. Compact and versatile, adapts to different installation scenarios, ensuring comfort, efficiency and total lighting control.
Main features:
● New processor: Esp-Shelly-C3 chip with 8 MB of memory
● Terminals more resistant
● Wi-Fi and Bluetooth gateway range extensor and gateway
● Support for scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and Custom Certificates
● Without the need for hub - direct control through the Shelly Smart Control application, compatible with various platforms, protocols and voice assistants (Alexa, Home Assistant, among others)
● Compatible with KNXNET/IP communication
● Works neutral wireless - requires bypass when the load is less than 20W
● Night mode - Creates comfortable ambient lighting with automatically adjusted shine in the defined hours
● Energy measurement - precise monitoring of consumption on each channel (when the neutral is on)
● Operation via Wi-Fi-direct connection to the network without the need for hub
● Gateway Ble - receives Bluetooth signals from Shelly Blu devices and reeves to cloud or other local devices
● Compatible with wide range of lamps:
- adjustable LED lamps up to 150W
- Incandescent lamps up to 200W
- Halogeneous lamps up to 200W
- Transformers with iron core and low voltage lamps up to 200va
- Regulatible constant electronic transformers up to 200W
● Flexible input control - compatible with existing switches (simple or double button)
● Smart schedules-Define personalized or birth/sunset based schedules
Technical Specifications:
◾ Food:
- Power voltage: 220–240v ~ 50Hz
- Energy consumption: <1.5W
- Works without neutral: yes
- Minimum load without neutral and without bypass: 20W
- Type of regulation: descendant phase (trailing edge)
- Maximum output power: 200W
- Protection against short circuit
- Recommended external protection:
· 16A, curve B or C
· Cut capacity: 6ka
· Energy limitation class 3
◾ Measurements (if neutral connected):
- Voltmeter range: 180V - 240V AC
- Voltmeter accuracy: ± 5%
- Gama do ammeter: 0a - 3a
- Creak accuracy: ± 5%
◾ Internal Temperature Sensor: Yes
◾ Supported load types:
- Adjustable LED lamps: up to 150W
- Incandescent lamps: Until 200W
- Halogenean lamps: Until 200W
- Transformers with iron core: up to 200va
- Constant current electron transformers: Until 200W
◾ Connectivity:
- Wi-Fi: 802.11 B/g/n
· Band: 2412–2472 MHz
· Max power. RF: <20 dbm
· Range (construction dependent):
up to 50m (exterior)
up to 30 m (interior)
- Bluetooth: Version 4.2
· Band: 2402–2480 MHz
· Max power. RF: <4 dbm
· Range (construction dependent):
up to 30 m (outer)
up to 10 m (interior)
◾ Microcontroller and memory
- Main CPU: ESP32-C3
- Co-processor: STM32 G051
- Clock frequency: 40 MHz
- Flash Memory: 8 MB
◾ Firmware features
- Schedules: 20
- Webhooks: 20 with up to 5 URLs each
- Scripting/MQTT: Yes
- Advanced schedules: yes
- Storage of value (kvs): yes
◾ Materials
- BOX MATERIAL: Plastic
- Colors: Box: Green-Lima / Printing: Black / Connectors: Black
◾ Operating conditions:
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% rh
◾ Weight: 24.3 g
◾ Dimensions: 38 x 42.5 x 16.5 mm
Grades
◾ Shelly Dimmer Gen3 can be installed neutral wireless. However, when used in this way and the load is less than 20 W, it is necessary to install a Shelly Bypass (sold separately) to ensure stable functioning and avoid sparkling or flaws in lighting control.
◾ The energy measurement functionality (voltage, current and consumption) is only available when the device is connected with neutral wire.
IMPORTANT:
Shelly Dimmer Gen3 is not compatible with constant voltage drivers, such as those used in 12 V or 24 V -powered LED tapes. It is compatible with adjustable constant current transformers or adjustable lamps, which are connected directly to the electrical network (230 V ~).
