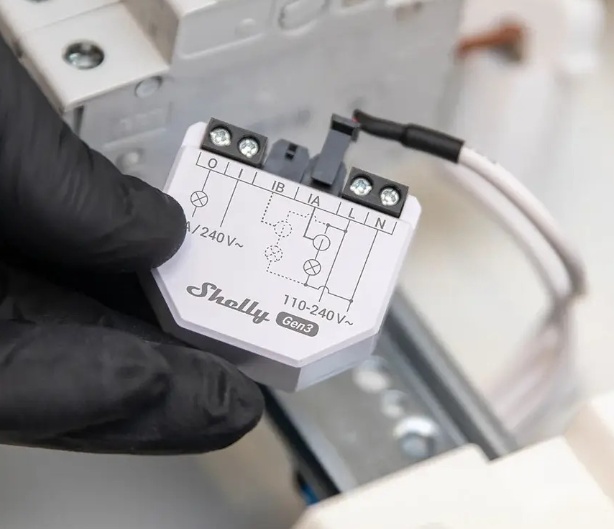

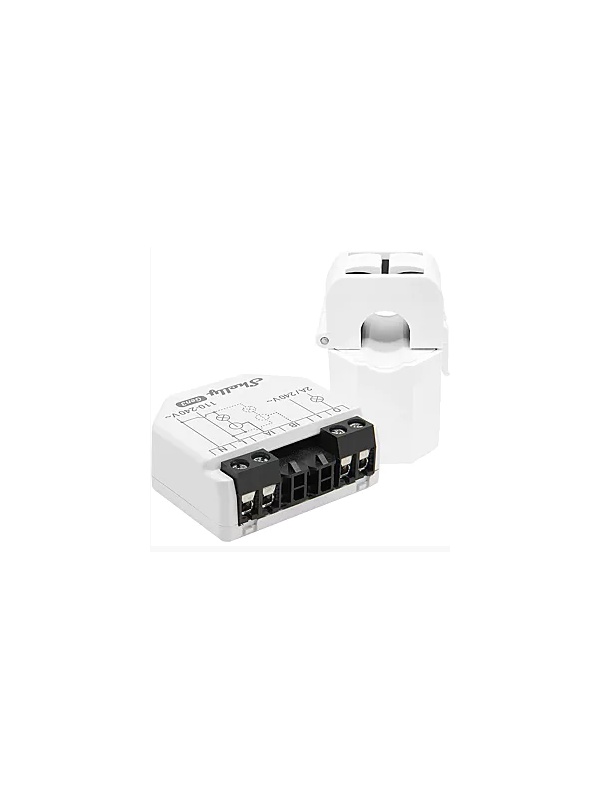

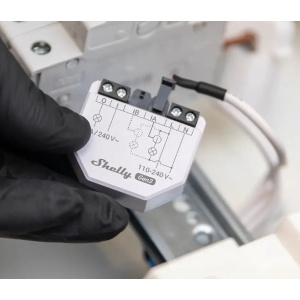

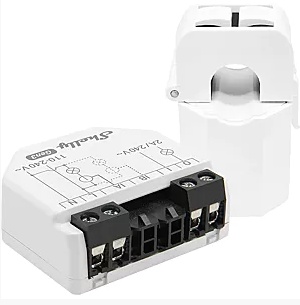

SHELLY IN GEN3 + 50A CT - Double consumption meter module for WiFi + Ti 50A automation
€68.50
(IVA included)
€55.69
(Without IVA)
Delivery cost is not included
Description
Get real -time information about power consumption of up to 2 circuits* or electrical devices and control a contactor - or a small load (2a) - with Shelly in Gen3.
When monitoring energy consumption, you can discover standards that reveal energy savings opportunities, as well as being able to detect warning signs such as unexpected peaks or unforeseen energy changes, which may be signs of the malfunction of some electrical apparatus, allowing you to maintain efficiency, avoid interruptions or even prevent serious damage.
In addition to a precise measurement of energy, the Gen3 shelly also allows control of contactors to turn on/off large power, such as water heaters, whirlpool tubs, heat pumps, large kitchen appliances, etc. This way you can save energy by automatically by turning off non -essential devices when not necessary, maximizing your savings.
Being a 3rd generation device (Gen3), this module comes equipped with a Shelly chip, twice the memory (8 MB), greater efficiency and better response capacity (compared to the plus series). It is actually prepared for a possible future inclusion of the Matter Protocol and the integration of additional intelligent features.
Main features:
- Wi-Fi and Bluetooth connectivity. No hub is required!
- Quick inclusion via Bluetooth and can be used as Gateway Bluetooth.
- Single -phase measurement, two channels.
- Supports up to 2 current intensity transformers (IT's) with quick connection.
- Dry contact switch to control heavier load contactors.
- Shelly chip with 8 MB of memory.
- Local data records stored on the device up to 10 days at intervals of 1 minute.
- Real -time clock for accurate temporal records when not connected to the internet.
- When connected to the cloud, data records go up to 365 days.
- Allows smart scheduling and smart scenes, matching other Shelly devices.
- Supports scripting, webhooks, MQTT protocols, Websocket, HTTP and RPC.
- Widely integrated into intelligent automation systems.
SPECIFICATIONS:
◾ Physical
- Size (Axlxp): 37x42x16 mm
- Weight:
· In Gen3 - 23 g
· CT 50A - 50 g
- Maximum torque of screw terminals: 0.4 nm
- Cross -sectional section of the driver: 0.2 to 2.5 mm² / 24 to 14 AWG
- Assembly: Electric board
- Carcass Material: Plastic
- Carcass color: white, gray charcoal
- Connectors Color: Black
◾ Environmental
- Environmental Working Temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 %
- Maximum altitude: 2000 m
◾ Electric
- Food: 110 - 240 V ~ 50/60 Hz
- Energy consumption: <1.2 W
- Neutral necessary: Yes
- Recommended external protection:
· 2a, triggering character B or C
· 6 KA interruption capacity
· Energy limitation class 3
◾ Classification of output circuits
- Maximum switching voltage: 240 V ~
- Maximum switching current: 2a /240v ~
◾ Sensors, meters
- Voltmeter (AC): 110-240 V ~ 50/60 Hz
- Voltmeter accuracy: ± 2%
- ammeter (AC): 0 - 80 a
- Axteimeter accuracy:
· ± 2 % (2 - 50 a)
· ± 2 % (1 - 2 a)
· ± 5 % (0 - 1 a)
- Compatible current intensity transformers:
· CT 50A (included in the package)
· CT 80a
- Power and energy meters:
· Active and apparent power
· Active and apparent energy
· Power factor
· Fundamental active energy and fundamental reactive energy
- Channel to channel calibration with minimum load: 500 W
- Limit without load: 30 VA per channel
- Storage of measurement data: at least 10 days of data resolution at 1 minute
- Data export:
· CSV for registered energy quality values,
· JSON format export via RPC
- Internal Temperature Sensor: Yes
◾ Connectivity
- Wi-Fi:
· Protocol: 802.11 b/g/n
· RF Band: 2412 - 2472 MHz
· Maximum power RF: <20 dbm
· Range: up to 30m in interiors and 50m in outer (depends on local conditions)
- Bluetooth:
· Protocol: 4.2
· RF Band: 2402 - 2480 MHz
· Maximum power RF: <4 dbm
· Range: up to 10m in interiors and 30m in outer (depends on local conditions)
◾ Microcontroller unit
-CPU: Esp-Shelly-C38F
- Flash: 8 MB
◾ Firmware capabilities
- Schedules: Yes
- Webhooks (actions by URL): 20 with 5 URLs per hook
- Script: Yes
- MQTT: Yes
- Cryptography: Yes (Transport Level)
- Authentication: Yes (application and transport level)
When monitoring energy consumption, you can discover standards that reveal energy savings opportunities, as well as being able to detect warning signs such as unexpected peaks or unforeseen energy changes, which may be signs of the malfunction of some electrical apparatus, allowing you to maintain efficiency, avoid interruptions or even prevent serious damage.
In addition to a precise measurement of energy, the Gen3 shelly also allows control of contactors to turn on/off large power, such as water heaters, whirlpool tubs, heat pumps, large kitchen appliances, etc. This way you can save energy by automatically by turning off non -essential devices when not necessary, maximizing your savings.
Being a 3rd generation device (Gen3), this module comes equipped with a Shelly chip, twice the memory (8 MB), greater efficiency and better response capacity (compared to the plus series). It is actually prepared for a possible future inclusion of the Matter Protocol and the integration of additional intelligent features.
Main features:
- Wi-Fi and Bluetooth connectivity. No hub is required!
- Quick inclusion via Bluetooth and can be used as Gateway Bluetooth.
- Single -phase measurement, two channels.
- Supports up to 2 current intensity transformers (IT's) with quick connection.
- Dry contact switch to control heavier load contactors.
- Shelly chip with 8 MB of memory.
- Local data records stored on the device up to 10 days at intervals of 1 minute.
- Real -time clock for accurate temporal records when not connected to the internet.
- When connected to the cloud, data records go up to 365 days.
- Allows smart scheduling and smart scenes, matching other Shelly devices.
- Supports scripting, webhooks, MQTT protocols, Websocket, HTTP and RPC.
- Widely integrated into intelligent automation systems.
SPECIFICATIONS:
◾ Physical
- Size (Axlxp): 37x42x16 mm
- Weight:
· In Gen3 - 23 g
· CT 50A - 50 g
- Maximum torque of screw terminals: 0.4 nm
- Cross -sectional section of the driver: 0.2 to 2.5 mm² / 24 to 14 AWG
- Assembly: Electric board
- Carcass Material: Plastic
- Carcass color: white, gray charcoal
- Connectors Color: Black
◾ Environmental
- Environmental Working Temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 %
- Maximum altitude: 2000 m
◾ Electric
- Food: 110 - 240 V ~ 50/60 Hz
- Energy consumption: <1.2 W
- Neutral necessary: Yes
- Recommended external protection:
· 2a, triggering character B or C
· 6 KA interruption capacity
· Energy limitation class 3
◾ Classification of output circuits
- Maximum switching voltage: 240 V ~
- Maximum switching current: 2a /240v ~
◾ Sensors, meters
- Voltmeter (AC): 110-240 V ~ 50/60 Hz
- Voltmeter accuracy: ± 2%
- ammeter (AC): 0 - 80 a
- Axteimeter accuracy:
· ± 2 % (2 - 50 a)
· ± 2 % (1 - 2 a)
· ± 5 % (0 - 1 a)
- Compatible current intensity transformers:
· CT 50A (included in the package)
· CT 80a
- Power and energy meters:
· Active and apparent power
· Active and apparent energy
· Power factor
· Fundamental active energy and fundamental reactive energy
- Channel to channel calibration with minimum load: 500 W
- Limit without load: 30 VA per channel
- Storage of measurement data: at least 10 days of data resolution at 1 minute
- Data export:
· CSV for registered energy quality values,
· JSON format export via RPC
- Internal Temperature Sensor: Yes
◾ Connectivity
- Wi-Fi:
· Protocol: 802.11 b/g/n
· RF Band: 2412 - 2472 MHz
· Maximum power RF: <20 dbm
· Range: up to 30m in interiors and 50m in outer (depends on local conditions)
- Bluetooth:
· Protocol: 4.2
· RF Band: 2402 - 2480 MHz
· Maximum power RF: <4 dbm
· Range: up to 10m in interiors and 30m in outer (depends on local conditions)
◾ Microcontroller unit
-CPU: Esp-Shelly-C38F
- Flash: 8 MB
◾ Firmware capabilities
- Schedules: Yes
- Webhooks (actions by URL): 20 with 5 URLs per hook
- Script: Yes
- MQTT: Yes
- Cryptography: Yes (Transport Level)
- Authentication: Yes (application and transport level)
