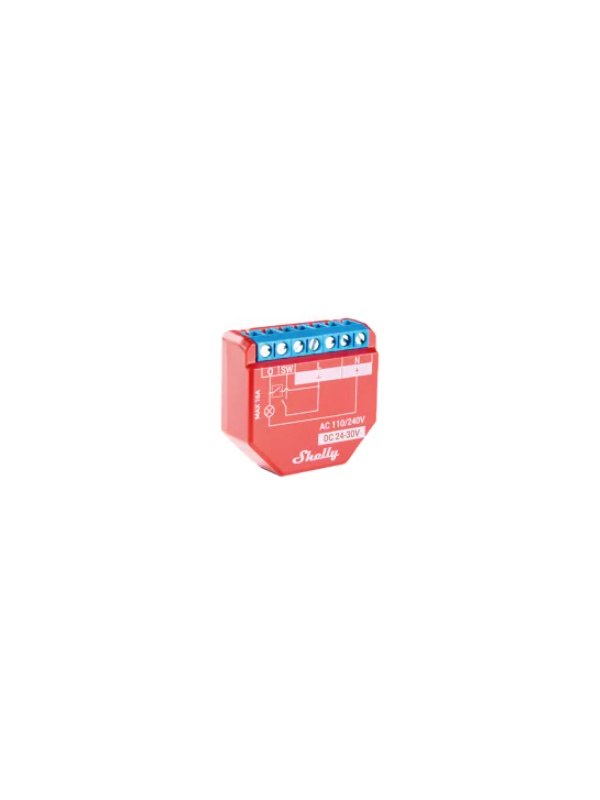

Shelly Plus 1pm - WiFi Automation Switch Module with power measurement 110/230VAC; 24-30VDC - 16th
Description
WiFi -controlled relay switch module, 1 channel, 16A with consumed energy measurement.
Control and measure energy consumption of a wide range of appliances and office equipment (lights, sockets, safety systems, heating radiators, air conditioning, etc.) from anywhere, with this reduced WiFi -controlled relay switch.
From the automation of lights to the control of electrical appliances, Shelly Plus 1PM provides accurate energy measurement and free cloud data storage.

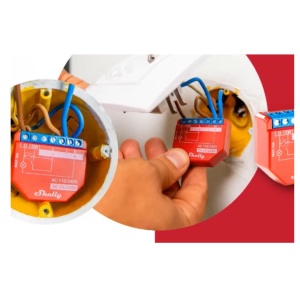

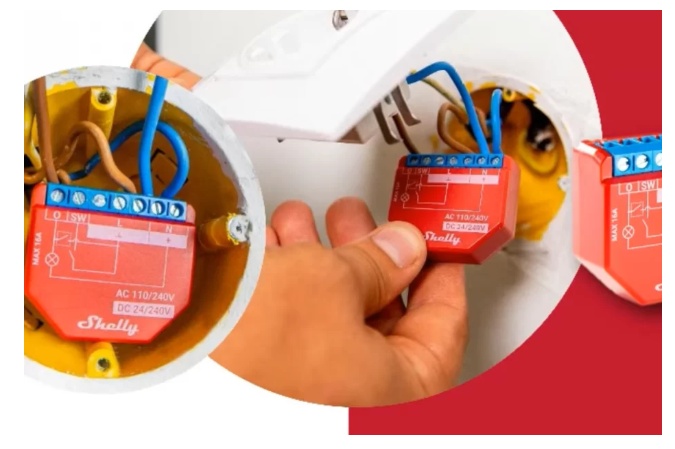

It is small enough to fit behind a switch or wall outlet, the Shelly Plus 1 automates your old switches and can be installed in less than 10 minutes.
You can now monitor and analyze the power consumption of your electrical devices and save money on electricity bills. The Shelly Plus 1PM has an Integrated Precise Energy Meter that allows you to measure power consumption and offer free data storage for analysis. It can also detect excessive energy consumption by means of a predefined limit range and then notify it or turn off the device.
With Shelly Plus 1pm you can automate any electrical device in your home and control it remotely. The Shelly Plus 1pm can control devices with large load, which makes it perfect for monitoring and controlling cooking devices and household systems. You can get a precise measurement of the power consumption of each device and turn off / off remotely, no matter where you are.
Nothing is better than coming to a cozy house on a cold winter day! Set Shelly 1pm to connect the heating devices at your home, an hour before you arrive at work. Remotely monitor your heaters' power consumption to see if they are working and warm the house.
Reveal the full potential of Shelly Plus 1pm combining it with other devices on your home network! Set Shelly Plus 1pm to activate custom scenes based on time, light or multiple occurrences. For example, you can define the Shelly door / window sensor to report the opening of a porch door and activate the shelly plus 1pm to turn on the whirlpool heaters only after 8pm.
◾ Wi-Fi connection-connects directly to your Wi-Fi network. No hub is required!
◾ Has Bluetooth - Add devices quickly and easily via Bluetooth connection, using the Shelly Cloud application;
◾ Energy measurement with data storage
◾ Large variety of tensions supported
◾ Extremely fast processor - ESP32;
◾ Electrical Protection - Protected against overtension, overload and overheating;
◾ Improved security - MQTT and WSS support, TLS and custom certificate support;
◾ Improved API interface.
SPECIFICATIONS:
- AC Food: 110-230 V ± 10%, 50/60 Hz
- DC Food: 24 - 30V
- Dry contacts: no
- Protection against overheating: yes
- Overload Protection: Yes
- Power and consumption measurement: yes
- Working without a neutral line: no
- http/https webhooks: yes
- Custom Scripts (MJS): Yes
- Channels: 1 channel
- Maximum load: 16a
- Operating temperature: 0 ° C to + 40 ° C
- Device energy consumption: <1 W
- On/Off Smart: Yes
- Local and remote control: yes
- Born from the sun / sunset: yes
- Weekly time: yes
- Option listed by UL: No
- Wi-Fi Protocol: 802.11 B / G / N
- Wi -Fi radio frequency: 2412 - 2484 MHz
- Wi-Fi radio signal power: 1mw
- Wi-Fi range: up to 50 m outdoors and up to 30 m indoors (depending on building materials)
- Bluetooth: Yes
- Size: 41 mm x 36 mm x 15 mm
