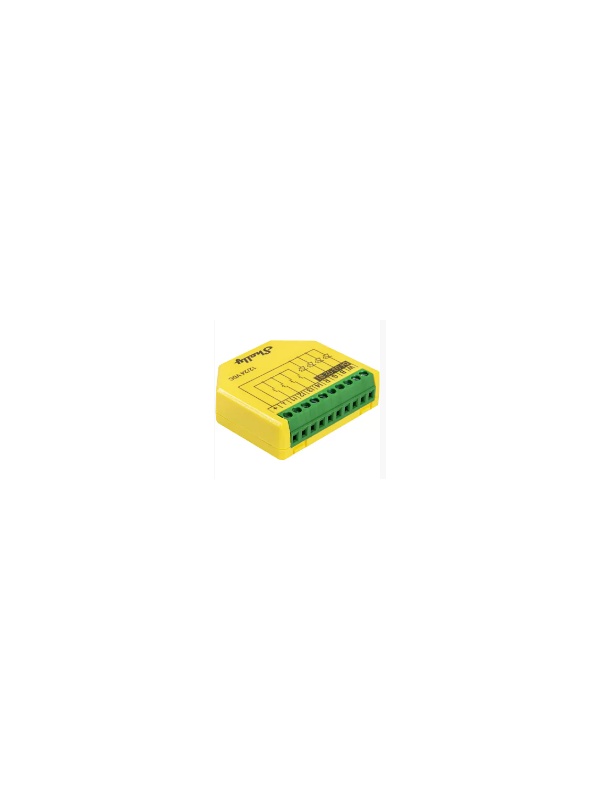

Shelly Plus RGBW PM - WiFi Smart Controller Module for RGBW 12/ 24V DC Ribbons with power measurement

Description

RGBW, RGB or 4 monochrome ribbons (4 channel) LED ribbon controller.

Compact and versatile, designed for control (via wifi) of any 12/24V LED tapes, up to 4A per channel (but limited to 10A in total).

Its power measurement functionality provides real -time information on power consumption.

Features:
● Supports any white (or color) LED tapes, 12V or 24VDC RGB/RGBW.
● Supports up to 4A per channel (10A in total).
● Includes power measurement to monitor power consumption.
● 3 lighting profiles for easy customization (lights, RGB and RGBW).
● Allows you to regulate light intensity and choose between 16 million colors and unique effects.
● Duration of transition and adjustable fading rate as well as minimal/maximum shine.
● Independent RGB and white control: The intensity of color and white light intensity can now be controlled independently.
● Night mode: Allows you to define a reduced shine at night.
● Protection against overintensity and overheating.
● Wi-Fi and Blutooth connectivity, with Wi-Fi range extensor features and Ble Gateway.
● Extremely fast processor for immediate reaction (ESP32).
● Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and Personalized Certificates
● No hub is required! Easy control through the Shelly Smart Control application, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or other domestic automation platforms.
● Includes 4 control inputs, for pressure buttons, switches or potentiometers.
● Compatible with Shelly Plus Add-On.

SPECIFICATIONS
◾ Food
- Power voltage: 12/24V DC
- Energy consumption: <1.2 W
◾ Output circuits
- Maximum voltage: 24 VDC
- Maximum current: 4 A per channel (10 to total)
- Powers:
@ 12V: 48W per channel (maximum total load of 120W)
@ 24V: 96W per channel (maximum total load of 240W)
- PWM frequency: 22 kHz
- Supported loads
· 12/24 V monochrome led
· RGB LED Ribbons of 12/24 V
· 12/24 V RGBW LED tapes
◾ Wireless connectivity
- Wi-Fi
· Protocol: 802.11 b/g/n
· RF Band: 2401 - 2495 MHz
· Maximum RF power: <20 dbm
· Range: up to 30 m in closed environments and 50m in open environments
- Bluetooth
· Protocol: 4.2
· RF Band: 2400 - 2483.5 MHz
· Maximum RF power: <4 dbm
· Range: up to 10m in closed environments and 30m in open environments
◾ Sensors and meters
- Power and energy meters: yes
- Voltmeter: 0-24V with ± 5% accuracy
- ammeter: 0-10a with ± 10% accuracy
- Minimum load threshold: 0.5Va per channel
- Internal temperature sensor: yes
◾ Microcontroller unit
- CPU: ESP32 (Esp-Shelly C38F)
- Clock frequency: 160 MHz
- RAM: 400 KB
- Flash: 4 MB
◾ Firmware capabilities
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per webhook
- Scripting: Yes
- MQTT: Yes
◾ Environmental
- Environmental Working Temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% rh
◾ Physical
- Maximum torque of screw terminals: 0.2 nm / 1.8 lbin
- Driver cross section: 0.1 to 1 mm² / 30 to 16 AWG
- Length of the Undeded Driver: 6 mm / 0.24 in
- Assembly: embedded on the wall
- BOX MATERIAL: Plastic
- Color of the box: Yellow
- Connectors Color: Green
- Weight: 16 g
- Size (Axlxp): 42x37x12 mm
