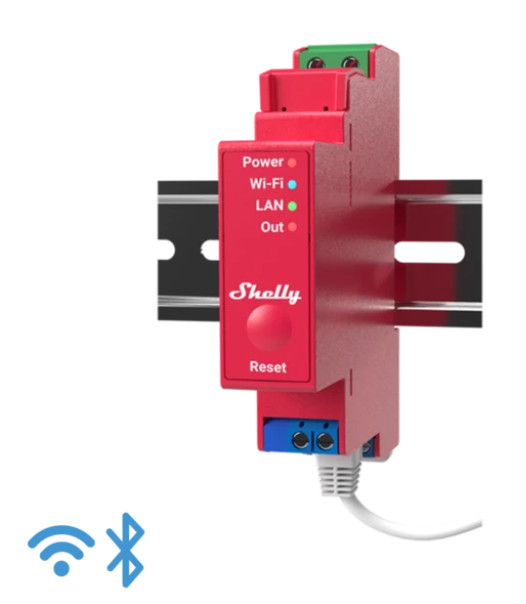

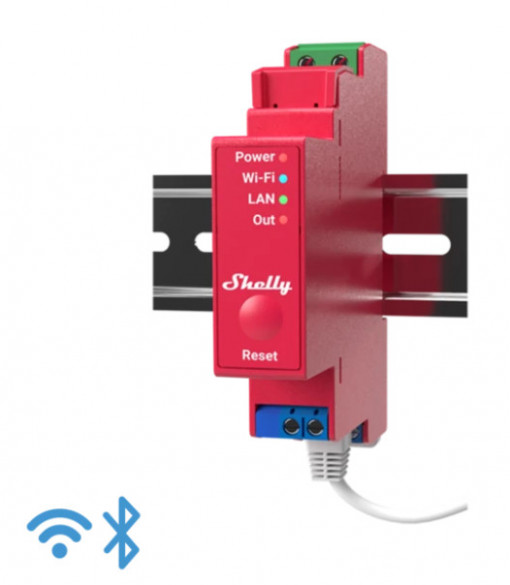

Shelly Pro 1pm - Din rail module w/1 relay and power measurement for wifi/bt/lan automation - 110/240VAC 16A

Description

The 1pm Shelly Pro 1pm is a 1 channel single -phase relay that supports up to 16A and is equipped with an integrated power meter that allows me to measure the precise consumption of all lights (or more powerful appliances) that are connected to it.

This relay can be powered by a wide range of tensions (110-240v AC) and has Wi-Fi, LAN and Bluetooth connectivity, suitable for residential automation, remote electrical installation control and precise management of power consumption.

Different types of actions, scenarios and times can be defined to synchronize your environment with your daily activities or business needs. Additional personalized automation is also possible thanks to scripting features, giving you the ability to customize and improve device features based on your specific needs.

It has enhanced safety features and is compatible with the most commonly used residential automation platforms.


FOOD
- Alternate current: 110-240v AC ± 10%, 50/60Hz
- Consumption: <3 W

EXIT:
- No. of contacts (channels): 1
- Maximum load @240V AC: 16a
- Dry contacts: no

Special functions
- Protection against overheating: yes
- Overload Protection: Yes
- Power measurement: yes

Driver section
- Food and Switches: 0.5 - 1.5mm²
- Exit contacts: 0.5 - 2.5mm²

Funds
- Webhooks http / https: yes
- Custom Scripts (MJS): Yes
- MQTT: Yes
- URL Actions: 20
- SCHEDULING: 50
- Intelligent turn / off: yes
- Local and remote control: yes
- Sun Sunrise: Yes
- Weekly time: yes

Connectivity
- Types: LAN, Wi-Fi and Bluetooth
- Wi-Fi Protocol: 802.11 B / G / N
- Wi -Fi frequency: 2400 - 2495 MHz
- Radio signal power: <20dbm
- Wi-Fi range: up to 50m outdoors and up to 30m indoors (depending on building materials)
- Bluetooth: Yes
- Bluetooth range: up to 30m outdoors and up to 10m indoors
- Ethernet: Yes (RJ45)

Other characteristics:
- CPU: ESP32-D0WDQ6
- Montable in Din's Gutter
- Operating temperature: -20 ° C to 40 ° C
- Dimensions (Axlxc): 94x19x69mm ± 0.5mm
