SHELLY PRO 4PM - DIN rail module w/4 relay for WiFi/BT/LAN automation
€126.62
(IVA included)
€102.94
(Without IVA)
Delivery cost is not included
Description
4-channel Din Rail Relay Switch with Wi-Fi, LAN and Bluetooth connection
Professional 4-channel retransmission with Wi-Fi, LAN and Bluetooth connection, suitable for residential automation and remote control installations and precise energy management.
Montable in Din's rail inside a circuit breaker box. Improved security features compatible with the most commonly used residential automation platforms.
Shelly Pro 4pm
LAN, Wi-Fi and Bluetooth connection
4 exits, 16a each. 40a maximum total device
Precise measurement of energy protection and load overvoltage protection.
Montable in Din's rail
1.8 inch colorful ecran with navigation keys
| Power | |
| Power supply ac | 110-230V ± 10%, 50/60Hz |
| Power supply dc | Node |
| SPECIAL FUNCTIONS | |
| Roller Shutter Mode | Node |
| Device Temperature Protection | Yes |
| Overload protection | Yes |
| Power Measurement | Yes |
| Feature | |
| Http/https webhooks | Yes |
| Custom Scripts (MJS) | Yes |
| Channels | 4 Channel |
| Maximum load | up to 16a per channel with up to 40a for the Whole Device |
| Operational Tempeature | 0 ° C to + 40 ° C |
| Device Power Consumption | <4 W |
| Intelligent on/OFF | Yes |
| LOCATION AND REMOTE CONTROL | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| Ul listed option | Node |
| Connectivity | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 B/G/N |
| Wi-Fi Radio Frequency | 2412 - 2484 MHz |
| Wi-Fi Radio Signal Power | 1mw |
| Wi-Fi Range | up to 50 m billboards and up to 30 m indoors |
| Bluetooth | Yes |
| Ethernet | Yes |
| Dimensions | |

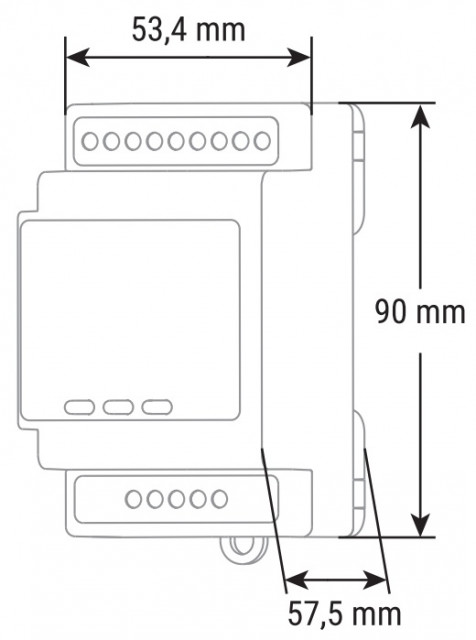

| Size | 90mm x 52mm x 57mm |
