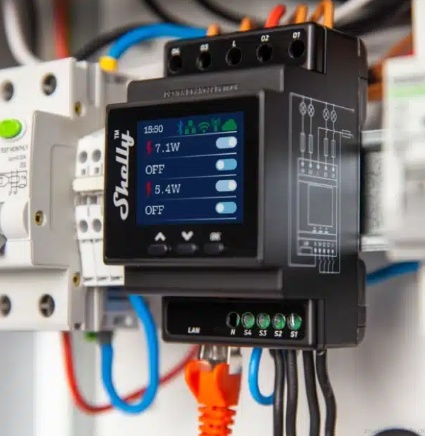

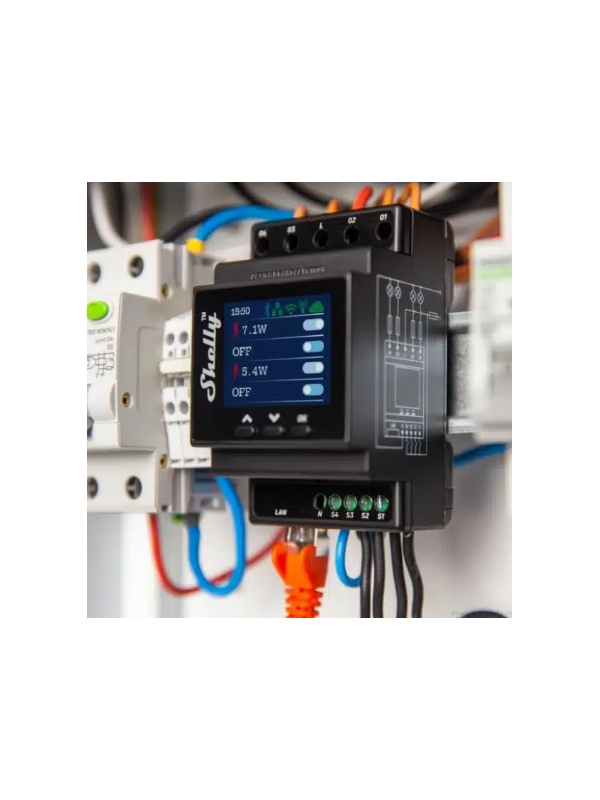

Shelly Pro 4pm V2 - Din rail module w/4 relay for WiFi/BT/LAN Automation - 110/240VAC 4x16A
Description
Professional Module for Din Din with 4 Controllable Relays by WiFi, Bluetooth, LAN or directly using external buttons/switches.
It is a suitable device for residential (domotic) automation, offices, stores, manufacturing facilities and other places where remote control and energy management are important aspects.
WiFi/LAN connectivity uses the HTTP/UDP protocols so it allows control through a smartphone, PC, domain system or any other device that supports these protocols. With an internet connection you can remotely control and monitor your Shelly® Pro 4PM from any location. Like many other Shelly® devices, this module is also compatible with the features supported by Amazon Echo and Google Home.
You can also use this module isolated from the local WiFi network as it allows it to be configured as a WiFi access point (AP), allowing you to communicate directly with other WiFi devices through the HTTP protocol.
The Shelly® Pro 4PM has 4 relatively controlled relapse and can turn on/off electrical circuits with a maximum chain of 16a (each).
Shelly® Pro devices are compatible with DIN assembly within circuit breaker and distribution boxes and have enhanced safety features.
Main features:
• LAN, Wi-Fi and Bluetooth connection;
• Locally controllable through buttons next to the display;
• Possibility of direct control with external buttons/switches;
• 4 exits, 16a each. Total maximum current of 40a;
• Precise energy measurement;
• Protection against overflow and overload;
• Montable in Din's Gutter;
• 1.8 inch color display with navigation buttons;
• Enhanced security characteristics;
• Can be control and managed through the built -in web interface;
• Can be used with the Shelly Cloud app and Shelly Cloud service.
SPECIFICATIONS:
• Food: 110-240v; 50/60Hz AC
• Number of channels: 4
• Maximum channel current: 16a
• Total maximum current: 40 to
• Electric consumption: <4 W
• Operating temperature: from 0 ° C to 40 ° C
• On/Off Smart: Yes
• Local and remote control: yes
• Weekly time: yes
• sunrise / sunset: yes
• Connectivity
- Wi-Fi: Yes
- Bluetooth - Yes
- LAN (Ethernet) - Yes
- Radio Protocol: WiFi 802.11 B/G/N
- Radio signal power: 1mw
- Frequency: 2412-2472 мHz; (Max. 2483.5 MHz)
- Operating range: up to 50m outdoors and up to 30m inside
• http/https webhooks: yes
• Scripting: Yes (MJS)
• MQTT: Yes
• Coap: No
• URL Actions: 20
• Schedule: 50
• CPU: ESP32
• Flash: 8MB
• Protections:
- Overheating
- Overload
- Overtension
- Flame retardant material
• In accordance with EU standards: RED 2014/53/I; LVD 2014/35/Me; EMC 2014/30/I; ROHS2 2011/65/Me;
• Assembly: Din's gutter
• Dimensions: 57.5 x 53.4 x 90 mm
