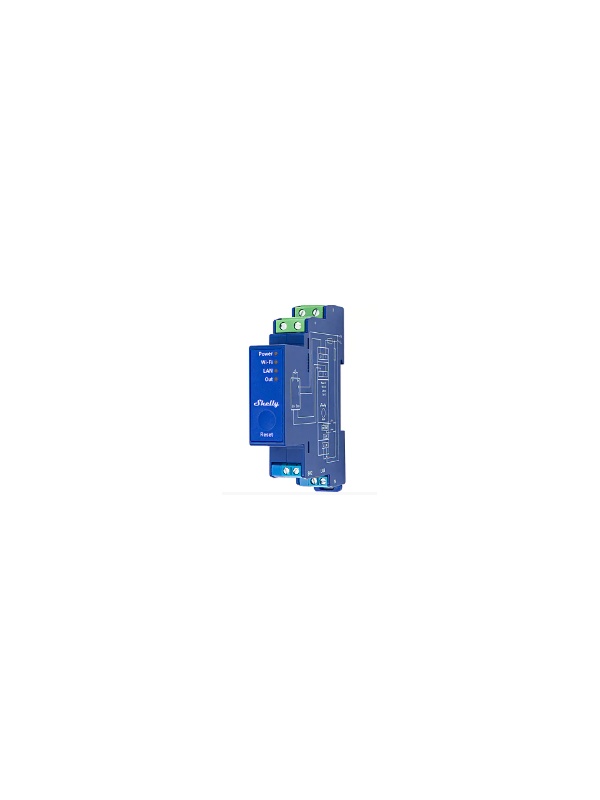

Shelly Pro Dimmer 0/1-10V PM-WiFi Smart Controller Module for Dimmer 0/1-10V with consumption measurement
€59.60
(IVA included)
€48.46
(Without IVA)
Delivery cost is not included
Description
Shelly Pro Dimmer 0/1-10V PM is a smart controller for remote regulation of devices that have 0-10V or 1-10V control signal input. This 3rd generation (GEN3) device is din din and can be controlled remotely through a mobile phone, tablet, PC or residential automation system.
This dimmer does not directly control loads, it is intended for regulating light intensity through a driver that has compatible control signal input, but is not limited to lights, there are several types of devices that can be controlled through this type of signals (Small Small Motor Speed Controllers, HVAC systems, valves, audio equipment, etc.).
In addition to sending a control signal to an intensity regulator (type 0-10V or 1-10V), it also has a relay that allows to turn the regulator to be controlled to be controlled, allowing additionally to measure its power consumption.
But what advantages do we have to use this type of dimmer?
Once it does not directly control loads, you can use it with much more powerful drivers than traditional shelly dimmer and will not be limited to the exit tensions they support.
✅ Characteristics:

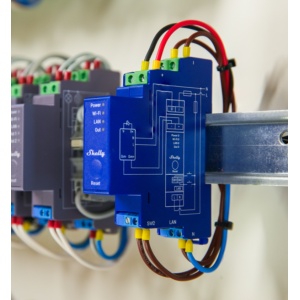

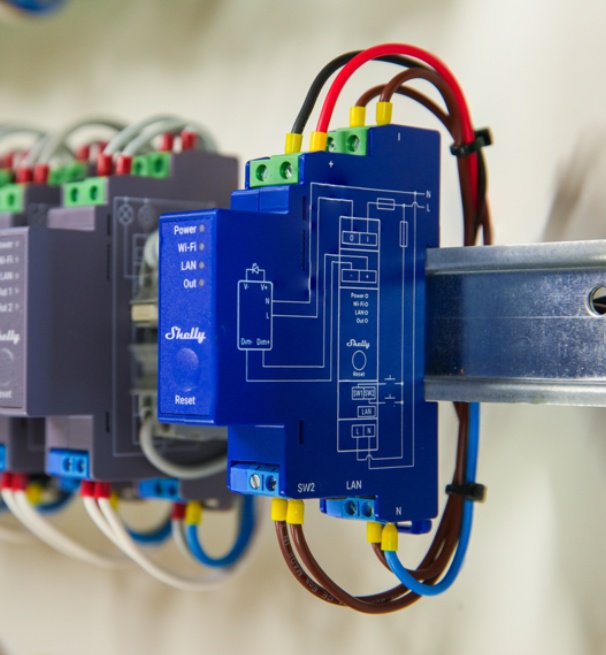

● Montadable in Din's Gutter
● Integration of diversified drivers: Supports 0-10V and 1-10V type drivers (lights, engines, valves, etc.).
● Wi-Fi: The device can connect to a wireless network.
● Ethernet connectivity
● Energy measurement: precise monitoring of energy consumption.
● Bluetooth connectivity: The device is compatible with the Bluetooth standard and can connect to other Bluetooth devices for data exchange to short distances.
● Bluetooth gateway: Facilitates communication between BLE enabled devices and those in the WiFi network.
● Wi-Fi range extensor: Relay the Wi-Fi signal and increases its range.
● Scripting: Allows you to create automation scenarios through scripts.
● Basic programming: Supports weekly schedules and routines, including shine definition, transition duration and darkening signal reversal value.
● Advanced programming: Supports detailed schedules throughout the year with a wide range of time adjustments from seconds to months, including shine definition, transition duration and darkening signal reversal value.
● Automatic timers turn/off: Allows you to define automatic turning on/off.
● Local Actions: Allows you to create automation scenarios within the local Wi-Fi network, including shine definition, transition duration and darkening signal reversal value, even if internet connection fails.
● Webhooks: Supports automation through lightweight and event -oriented communication with other devices.
● Compatibility: Highly compatible with third party automation systems, including KNX.
● Without a hub need: ready for local or remote use via Shelly Smart Control or third party systems.
● Activity Registration: Store detailed history of events.
● KVS (Key-Value Storage): KVS service offers persistent basic storage of key-value pairs.
● KNX: Supports communication KNXNET/IP.
● Safety: Protections against overcurrent/voltage/power.
● Virtual and Bthome components: A special set of components that do not initially exist on the device and are created dynamically by the user.
● Night mode: Allows you to define a specific glow of input lights at night.
● Switch/button input mode: Allows flexible input control through switches and/or button:
- Darkening control with a single button
- Darkening control with two buttons
● Transition duration: Controls the time it takes to move from the current shine level to the desired brightness level when requesting.
● Minimal shine when turning: defines the shine by 3% (default value) when on, if the current shine is below the 'minimum shine when turning on.' This does not apply if a personalized transition is defined in schedules or actions.
● Minimum/maximum shine: Adjusts the darkening signal range for more accurate control of the shine at the output.
● Button -squeezing rate: controls how quickly the output shine changes by pressing the button (s) (s). The default value is 3x.
● Button settings: State to be applied to a double -click event. The default value is 100%.
✅ Specifications
◾ Electric
- Power supply: 110 - 240 V ~
- Energy consumption: <3 W
-Type of voltage control 0-10V/1-10V: Current Source
- Internal protection:
· Against Overheating
· Against Overtension
· Against overcurrent
· Against Overload
- Recommended external protection:
· 16 A, firing character B or C
· 6 Ka of Interruption Classification
· Energy limitation class 3
- Output circuit
· Maximum switching voltage: 240 v ~
· Maximum switching current: 16 A
◾ Sensors and meters
- Voltmeter (AC): Yes
- ammeter (AC): Yes
- Power and energy meters:
· Active and apparent power
· Active and apparent energy
· Power factor
· Fundamental active energy and fundamental reactive energy
- Storage of measurement data: no
- Internal Temperature Sensor: Yes
◾ Radio
- Wi-Fi
· Protocol: 802.11 b/g/n
· RF Band: 2412 - 2472 MHz
· RF Maximum Power: <20 DBM
· Range: up to 30m in interiors and 50m in outer (depends on local conditions)
- Bluetooth
· Protocol: 4.2
· RF Band: 2402 - 2480 MHz
· Maximum RF power: <4 dbm
· Range: up to 10m in interiors and 30m in outer (depends on local conditions)
◾ Microcontroller unit
- CPU: ESP32-D0WDQ6
- Clock frequency: 40 MHz
- Flash Memory: 8 MB
◾ Firmware capabilities
- Schedules (appointments): 20
- Webhooks (actions by URL): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
- Advanced Schedules: Yes
- KVS (storage of key-value pairs): yes
◾ Environmental
- Operating temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 % rh
- Maximum altitude: 2000 m
◾ Physical
- Size (Axlxp): 94x19x69 ± 0.5 mm
- Weight: 70 g
- Maximum torque of screw terminals: 0.4 nm
- Cross -sectional section of the driver:
· 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
· 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
- Length of the driver Engaged:
· 6 to 7 mm / 0.24 to 0.28 In (green connector)
· 5 to 6 mm / 0.20 to 0.24 In (blue connectors)
- Assembly: DIN
- Carcass Material: Plastic
- Carcass color: blue
- Connectors color:
· Green
· Blue
This dimmer does not directly control loads, it is intended for regulating light intensity through a driver that has compatible control signal input, but is not limited to lights, there are several types of devices that can be controlled through this type of signals (Small Small Motor Speed Controllers, HVAC systems, valves, audio equipment, etc.).
In addition to sending a control signal to an intensity regulator (type 0-10V or 1-10V), it also has a relay that allows to turn the regulator to be controlled to be controlled, allowing additionally to measure its power consumption.
But what advantages do we have to use this type of dimmer?
Once it does not directly control loads, you can use it with much more powerful drivers than traditional shelly dimmer and will not be limited to the exit tensions they support.
✅ Characteristics:
● Montadable in Din's Gutter
● Integration of diversified drivers: Supports 0-10V and 1-10V type drivers (lights, engines, valves, etc.).
● Wi-Fi: The device can connect to a wireless network.
● Ethernet connectivity
● Energy measurement: precise monitoring of energy consumption.
● Bluetooth connectivity: The device is compatible with the Bluetooth standard and can connect to other Bluetooth devices for data exchange to short distances.
● Bluetooth gateway: Facilitates communication between BLE enabled devices and those in the WiFi network.
● Wi-Fi range extensor: Relay the Wi-Fi signal and increases its range.
● Scripting: Allows you to create automation scenarios through scripts.
● Basic programming: Supports weekly schedules and routines, including shine definition, transition duration and darkening signal reversal value.
● Advanced programming: Supports detailed schedules throughout the year with a wide range of time adjustments from seconds to months, including shine definition, transition duration and darkening signal reversal value.
● Automatic timers turn/off: Allows you to define automatic turning on/off.
● Local Actions: Allows you to create automation scenarios within the local Wi-Fi network, including shine definition, transition duration and darkening signal reversal value, even if internet connection fails.
● Webhooks: Supports automation through lightweight and event -oriented communication with other devices.
● Compatibility: Highly compatible with third party automation systems, including KNX.
● Without a hub need: ready for local or remote use via Shelly Smart Control or third party systems.
● Activity Registration: Store detailed history of events.
● KVS (Key-Value Storage): KVS service offers persistent basic storage of key-value pairs.
● KNX: Supports communication KNXNET/IP.
● Safety: Protections against overcurrent/voltage/power.
● Virtual and Bthome components: A special set of components that do not initially exist on the device and are created dynamically by the user.
● Night mode: Allows you to define a specific glow of input lights at night.
● Switch/button input mode: Allows flexible input control through switches and/or button:
- Darkening control with a single button
- Darkening control with two buttons
● Transition duration: Controls the time it takes to move from the current shine level to the desired brightness level when requesting.
● Minimal shine when turning: defines the shine by 3% (default value) when on, if the current shine is below the 'minimum shine when turning on.' This does not apply if a personalized transition is defined in schedules or actions.
● Minimum/maximum shine: Adjusts the darkening signal range for more accurate control of the shine at the output.
● Button -squeezing rate: controls how quickly the output shine changes by pressing the button (s) (s). The default value is 3x.
● Button settings: State to be applied to a double -click event. The default value is 100%.
✅ Specifications
◾ Electric
- Power supply: 110 - 240 V ~
- Energy consumption: <3 W
-Type of voltage control 0-10V/1-10V: Current Source
- Internal protection:
· Against Overheating
· Against Overtension
· Against overcurrent
· Against Overload
- Recommended external protection:
· 16 A, firing character B or C
· 6 Ka of Interruption Classification
· Energy limitation class 3
- Output circuit
· Maximum switching voltage: 240 v ~
· Maximum switching current: 16 A
◾ Sensors and meters
- Voltmeter (AC): Yes
- ammeter (AC): Yes
- Power and energy meters:
· Active and apparent power
· Active and apparent energy
· Power factor
· Fundamental active energy and fundamental reactive energy
- Storage of measurement data: no
- Internal Temperature Sensor: Yes
◾ Radio
- Wi-Fi
· Protocol: 802.11 b/g/n
· RF Band: 2412 - 2472 MHz
· RF Maximum Power: <20 DBM
· Range: up to 30m in interiors and 50m in outer (depends on local conditions)
- Bluetooth
· Protocol: 4.2
· RF Band: 2402 - 2480 MHz
· Maximum RF power: <4 dbm
· Range: up to 10m in interiors and 30m in outer (depends on local conditions)
◾ Microcontroller unit
- CPU: ESP32-D0WDQ6
- Clock frequency: 40 MHz
- Flash Memory: 8 MB
◾ Firmware capabilities
- Schedules (appointments): 20
- Webhooks (actions by URL): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
- Advanced Schedules: Yes
- KVS (storage of key-value pairs): yes
◾ Environmental
- Operating temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 % rh
- Maximum altitude: 2000 m
◾ Physical
- Size (Axlxp): 94x19x69 ± 0.5 mm
- Weight: 70 g
- Maximum torque of screw terminals: 0.4 nm
- Cross -sectional section of the driver:
· 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
· 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
- Length of the driver Engaged:
· 6 to 7 mm / 0.24 to 0.28 In (green connector)
· 5 to 6 mm / 0.20 to 0.24 In (blue connectors)
- Assembly: DIN
- Carcass Material: Plastic
- Carcass color: blue
- Connectors color:
· Green
· Blue
