SHELLY QUBINO WAVE PM MINI - Mini Z -WAVE MODULE ™ for power consumption monitoring 110/240VAC - 16A
€25.70
(IVA included)
€20.89
(Without IVA)
Delivery cost is not included
Description
Shelly Qubino Wave PM Mini is intended only for monitoring energy consumption, ie it is similar to Shelly Qubino Wave 1pm Mini, but without the relay and without the switch entry (SW).

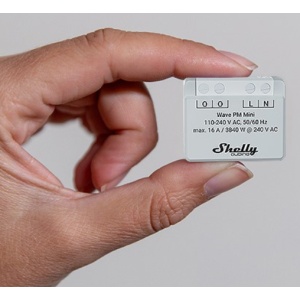

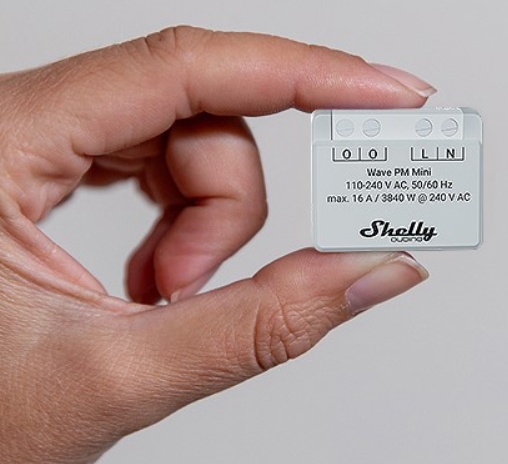

It has a very small shape and allows remote monitoring of power consumption of electrical appliances with a load up to 16 A.

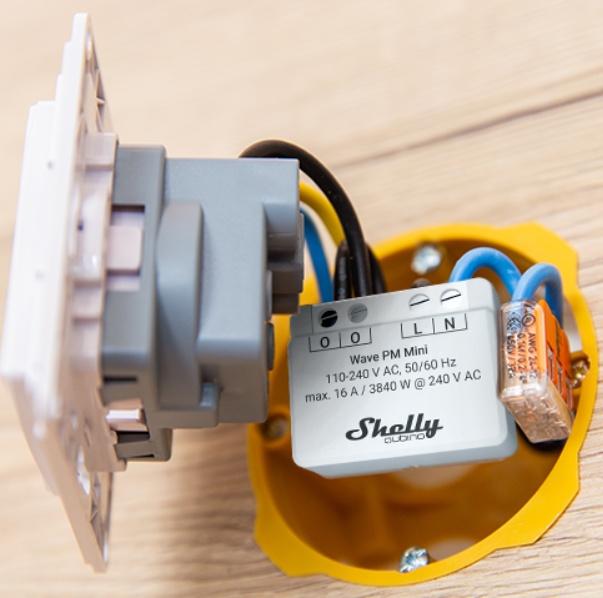

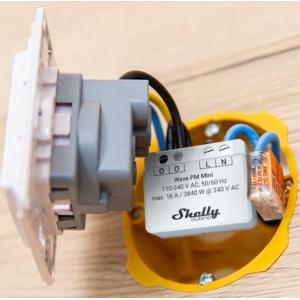

Thanks to its compact design, it can be installed even in tighter spaces, in apparatus boxes, behind sockets, or even inside electrical appliances.
Allows you to get a detailed view of the consumption of electrical appliances without risking them off. As it has no control relay, it is recommended for appliances that should remain connected and/or already have their own automation, such as refrigerators, frozen arms, washing machines, drying machines, dishwasher, thermoacumulators, etc.
Once configured, you can communicate directly with other devices on your Z-Wave local network and trigger actions based on measurements without the presence of a hub!
Features:
● Only measures energy consumption, has no relay
● Precise power measurements
● Supports up to 16A to 240V AC
● Extremely low energy consumption: <0.3 W
● Z-Wave frequency band: 868.4 MHz (CEPT countries)
● Uses the latest Z-Wave technology: Z-Wave Series 800
● Automatic configuration with smartstart
● Authenticated Security 2 for the highest level of security
● Supports Over-The-Air Firmware Updates (OTA)
● Quick and simple installation on most standard electric and switches.
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices.
SPECIFICATIONS:
◾ Electric:
- Electric power: 110-240v AC, 50/60 Hz
- Energy consumption: <0.3 W
- Power measurement (W): Yes
- Maximum measurement power: 3840 W
- Maximum measurement current: 16 A
◾ Z-WAVE®:
- Z-WAVE® repeater: yes
- CPU: Z-WAVE® S800
- Z-Wave® frequency band: 868.4 MHz
- Maximum radio frequency power transmitted: <25 MW
◾ Terminals:
- Cross -sectional section of the driver: 0.5 to 1.5 mm² / 20 to 16 AWG
- Maximum torque of screws: 0.4 nm
- Length of the end of the driver Ecarded: 5 to 6 mm
◾ Environmental:
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% rh
- Maximum altitude: 2000 m
◾ Physical:
- Assembly: Power box
- Material: Plastic
- Color: Light gray
- Dimensions (A x L x P): 29x35x16 mm
- Weight: 13 g
It has a very small shape and allows remote monitoring of power consumption of electrical appliances with a load up to 16 A.
Thanks to its compact design, it can be installed even in tighter spaces, in apparatus boxes, behind sockets, or even inside electrical appliances.
Allows you to get a detailed view of the consumption of electrical appliances without risking them off. As it has no control relay, it is recommended for appliances that should remain connected and/or already have their own automation, such as refrigerators, frozen arms, washing machines, drying machines, dishwasher, thermoacumulators, etc.
Once configured, you can communicate directly with other devices on your Z-Wave local network and trigger actions based on measurements without the presence of a hub!
Features:
● Only measures energy consumption, has no relay
● Precise power measurements
● Supports up to 16A to 240V AC
● Extremely low energy consumption: <0.3 W
● Z-Wave frequency band: 868.4 MHz (CEPT countries)
● Uses the latest Z-Wave technology: Z-Wave Series 800
● Automatic configuration with smartstart
● Authenticated Security 2 for the highest level of security
● Supports Over-The-Air Firmware Updates (OTA)
● Quick and simple installation on most standard electric and switches.
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices.
SPECIFICATIONS:
◾ Electric:
- Electric power: 110-240v AC, 50/60 Hz
- Energy consumption: <0.3 W
- Power measurement (W): Yes
- Maximum measurement power: 3840 W
- Maximum measurement current: 16 A
◾ Z-WAVE®:
- Z-WAVE® repeater: yes
- CPU: Z-WAVE® S800
- Z-Wave® frequency band: 868.4 MHz
- Maximum radio frequency power transmitted: <25 MW
◾ Terminals:
- Cross -sectional section of the driver: 0.5 to 1.5 mm² / 20 to 16 AWG
- Maximum torque of screws: 0.4 nm
- Length of the end of the driver Ecarded: 5 to 6 mm
◾ Environmental:
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% rh
- Maximum altitude: 2000 m
◾ Physical:
- Assembly: Power box
- Material: Plastic
- Color: Light gray
- Dimensions (A x L x P): 29x35x16 mm
- Weight: 13 g
