Shelly Qubino Wave Pro 1 - Din rail module w/ 1 Z -Wave ™ automation relay - 110/ 240VAC 16A (dry contact)
€58.50
(IVA included)
€47.56
(Without IVA)
Delivery cost is not included
Description

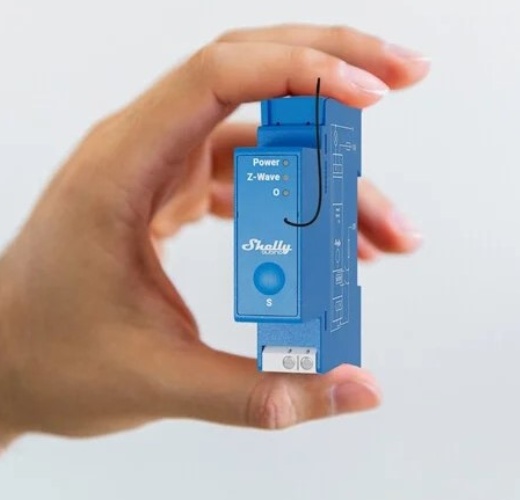

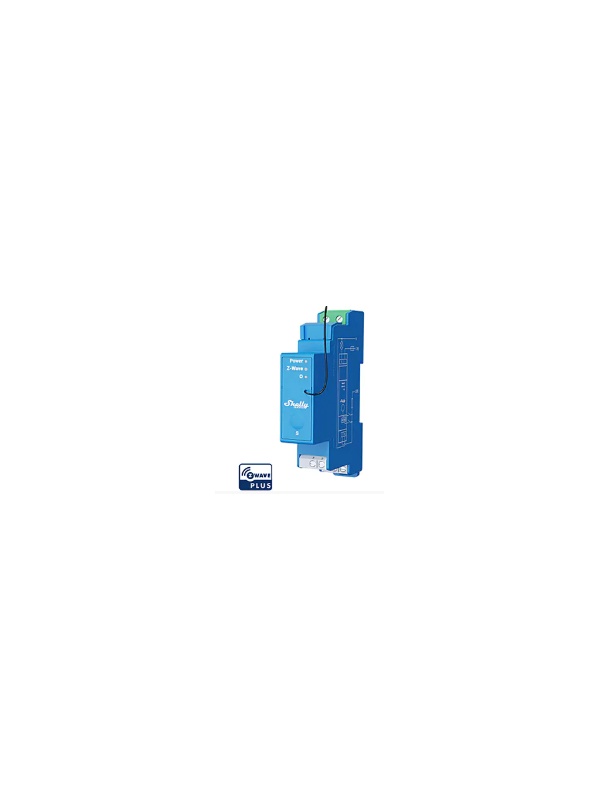

Smart switch Z-Wave®, professional, 1 channel, with dry (free of potential) contacts of 16A, to assemble in DIN rail (within an electrical frame).
Suitable for intelligent automation of homes and remotely controlled installations.
● Uses the latest Z-Wave technology: Z-Wave 800 Series.
● Z-Wave frequency band: 868.4 MHz (CEPT countries).
● It has a channel with potential free contacts (dry contacts).
● Allows you to turn on/off circuits or devices with a load of up to 16 A.
● It is compatible with switches (by default) and pressure buttons.
● Mounting on Din Gutter.
● Extremely low energy consumption (<0.3 W).
● Automatic configuration with Smartstart.
● Authenticated for the highest level of safety (S2).
● Overocketing protection (off the output and sends a notification).
● Over-The-Air Firmware Updates.
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices.
SPECIFICATIONS:
- Electric power: 110-240v AC, 50/60 Hz
- Energy consumption: <0.3 W
- Contact:
· Potential free: yes (dry contact)
· Maximum voltage / current of switching AC: 240V / 16 A
· Voltage/maximum switching current DC: not specified
- Protection against overheating: yes
- Power measurement: no
- Z-WAVE COMMUNICATION:
· Frequencies: Under-G (from 868.4 to 920.9 MHz)
· CPU: Z-WAVE S800
· Z-WAVE ™ repeater: yes
· Range: up to 40m in interior spaces (depends on local conditions)
- Assembly: DIN rail
- Cross -sectional section of the driver:
· Green connector: 0.5 to 2.5 mm (20 to 14 AWG)
· White connectors: 0.5 to 1.5 mm (20 to 16 AWG)
- Enclosure material: Plastic
- Color: Blue
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 % hr
- Maximum altitude: 2000 m
- Weight: 60 g
- Size (a x l x p): 94x19x69 mm
