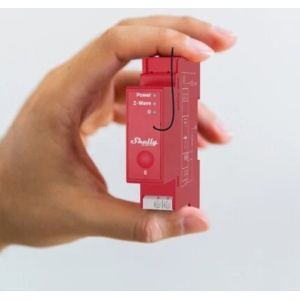

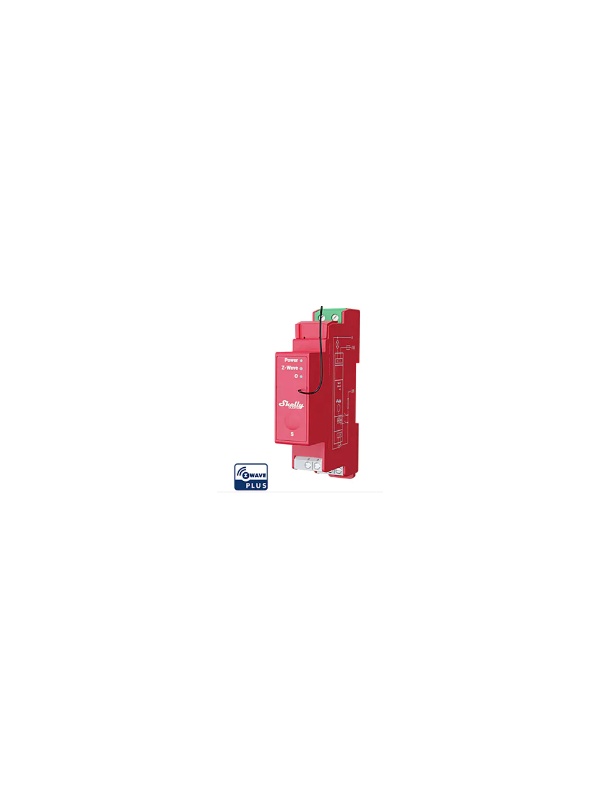

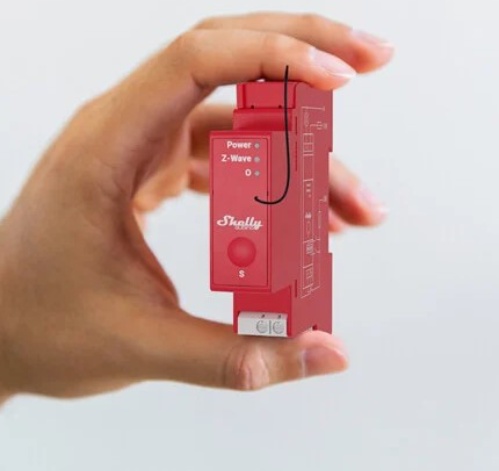

Shelly Qubino Wave Pro 1pm - Din rail module w/ 1 relay and power measurement for Z -Wave ™ automation - 110/ 240VAC 16A

Description

Z-WAVE®, professional, 1 channel, 16-cane contact and power measurement; to assemble in a din rail (inside an electrical frame).

Suitable for intelligent automation of remotely controlled homes and electrical installations.

● Uses the latest Z-Wave technology: Z-Wave 800 Series.
● Z-Wave frequency band: 868.4 MHz (CEPT countries).
● Allows you to turn on/off circuits or devices with a load of up to 16 A.
● Power and energy consumption of load consumption.
● It is compatible with switches (by default) and pressure buttons.
● Mounting on Din Gutter.
● Extremely low energy consumption (<0.3 W).
● Automatic configuration with Smartstart.
● Authenticated for the highest level of safety (S2).
● Protections against overheating, overload and overtension.
● Any of the protections, turn off the output and sends a notification.
● Over-The-Air Firmware Updates.
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices.

SPECIFICATIONS:
- Electric power: 110-240v AC, 50/60 Hz
- Energy consumption: <0.3 W
- Contact:
· Maximum voltage / current of switching AC: 240V / 16 A
· Voltage/maximum switching current DC: not specified
· Potential free: no ("wet" contact)
- Protections against:
· Overheating
· Overload
· Overtension
- Power measurement: yes
- Z-WAVE COMMUNICATION:
· Frequencies: Under-G (from 868.4 to 920.9 MHz)
· CPU: Z-WAVE S800
· Z-WAVE ™ repeater: yes
· Range: up to 40m in interior spaces (depends on local conditions)
- Assembly: DIN rail
- Cross -sectional section of the driver:
· Green connector: 0.5 to 2.5 mm (20 to 14 AWG)
· White connectors: 0.5 to 1.5 mm (20 to 16 AWG)
- Enclosure material: Plastic
- Color: Red
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 % hr
- Maximum altitude: 2000 m
- Weight: 61 g
- Size (a x l x p): 94x19x69 mm
