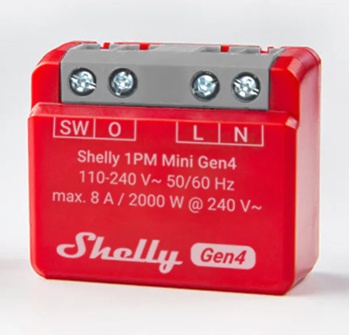

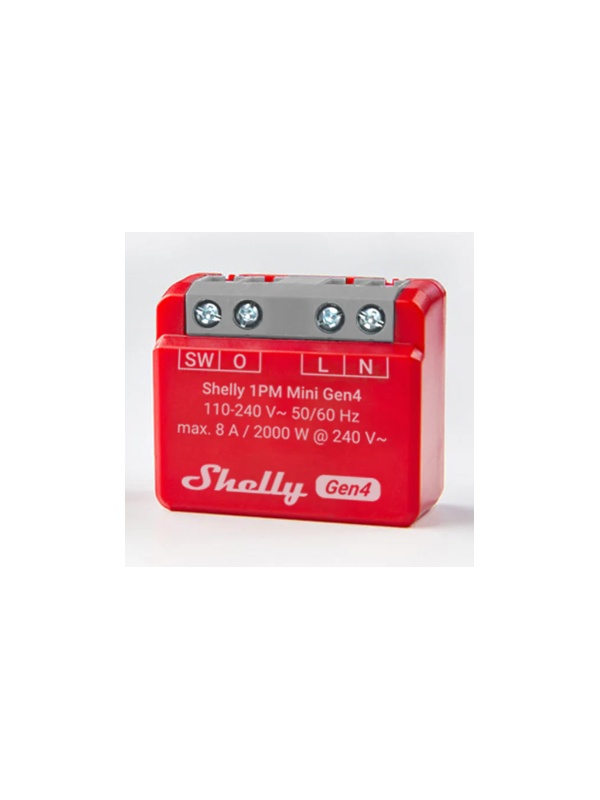

Shelly1PMminigen4 - Mini Wifi/Zigbee/Zigbee/Matter Switch with power measurement 110/240VAC - 8a
€21.80
(IVA included)
€17.72
(Without IVA)
Delivery cost is not included
Description
The shelly 1pm Mini Gen4 is an ultra-compact smart switch with energy measurement, ideal for controlling lights and small electrodomers up to 8 A. It supports Wi-Fi, Zigbee, Bluetooth connection and is compatible with matter.
It can be remotely controlled through smartphone, tablet, PC or domotic systems, working autonomously on a local Wi-Fi network or through cloud services.
It is easily installed on standard derivation boxes, behind outlets or switches, even in reduced spaces, and includes an integrated web interface for control, monitoring and configuration.
MAIN CHARACTERISTICS
● Compact intelligent switch with precise and real time measurement of energy consumption
● Multiprotocol connectivity: Wi-Fi, Zigbee, Bluetooth
● Matter compatible (official certification)
● Switching capacity up to 8 to 240 V AC
● Free cloud data storage for analysis and optimization of energy consumption
● Ideal for retrofit, can be installed behind existing outlets and switches
● Remote control via App Shelly Smart Control, Browser or Domotic Platforms
● does not require hub: works autonomously on a local Wi-Fi network
● Compatible with Alexa, Google Home, Samsung Smartthings, Home Assistant, among others
● Supports local schedules, scenes and actions
● Improved processor for higher performance
● Web interface incorporated for local control and configuration
● Advanced scripting support, https, mqtts, web sockets (input and output)
● KNX compatible (KNXNET/IP)
● Ble Gateway Functionality: Integrates Shelly Blu devices
● Zigbee and integrated Wi-Fi range extensor
● Safety protections: against overheating, overtension, overcurrent and overload
● Supports resistive, capacitive and inductive loads
● Integrated multifunction button for quick access to pairing and reset modes
● Monochrome LED indication with defined operating states
● Electric interfaces:
· 1 button/switch input
· 2 power inputs (n and l)
· 1 Exit with energy measurement
Cases of Use
✅ Control of electrical appliances: Allows remotely turning on and off lights, fans and other devices.
✅ Consumption monitoring: Measures real -time energy consumption, helping to identify patterns of use.
✅ Residential Automation: Easily integrates into domootic systems to create custom scenes and schedules.
✅ Energy efficiency: Helps detect high consumption devices, promoting more efficient choices.
✅ Remote monitoring: Possibility to control and track devices from anywhere with internet access.
✅ Installations with limited space: Compact design allows installation in standard apparatus boxes, even in places with little space.
Technical Specifications
◾ Physical
- Dimensions (a × l × p): 29 × 34 × 16 ± 0.5 mm
- Weight: 18 ± 1 g
- Binary max. Screw terminals: 0.4 nm
- Conductor section: 0.2 to 2.5 mm²
· Solid, enclosed or with tips wires
- Isolation length to be removed: 6 to 7 mm
- Assembly: Power box
- BOX MATERIAL: Plastic
-Box color: Red (C-3%; M-100%; Y-70%; K-12%)
- Connectors Color: Gray Gray
◾ Environmental
- Operating temperature: -20 ºC to 40 ° C
- Relative humidity: 30 % to 70 % rh
- Maximum altitude: 2000 m
◾ Electric
- Food: 110–240 V AC
- Relay: Contact NA, 1 Polo, µ-Contact
- Recommended external protection:
· Founding character B or C
· Nominal current max.: 10 A
· Minimum cutting power: 6 ka
· Energy limitation class: 3
◾ Output circuit
- Max tension. Switching: 240 V AC
- Max current. switching: 8 to / 240 v AC
- Energy measurement: yes
- Overvate protection: yes
- Protection against overcurrent: yes
- Overload Protection: Yes
◾ Sensors and meters
- Internal Temperature Sensor: Yes
◾ Radio
- Wi-Fi
· Protocol: IEEE 802.11 b/g/n
· RF Band: 2412 - 2472 MHz
· Max power. RF: <20 dbm
· Range: up to 30 m (interior), up to 50 m (outer)
- Bluetooth
· Protocol: 5.0
· RF Band: 2402 - 2480 MHz
· Max power. RF: <4 dbm
· Range: up to 10 m (interior), up to 30 m (outer)
- Zigbee
· Protocol: IEEE 802.15.4
· RF Band: 2400 - 2483.5 MHz
· Max power. RF: <20 dbm
· Range: up to 100 m (interior), up to 300 m (outer)
◾ Microcontrol unit
-CPU: Esp-Shelly-C68F
- Flash Memory: 8 MB
◾ Firmware features
- Schedules: Up to 20
- Webhooks (actions by URL): Up to 20, with 5 URLs per webhook
- Scripting: Yes
- MQTT: Yes
It can be remotely controlled through smartphone, tablet, PC or domotic systems, working autonomously on a local Wi-Fi network or through cloud services.
It is easily installed on standard derivation boxes, behind outlets or switches, even in reduced spaces, and includes an integrated web interface for control, monitoring and configuration.
MAIN CHARACTERISTICS
● Compact intelligent switch with precise and real time measurement of energy consumption
● Multiprotocol connectivity: Wi-Fi, Zigbee, Bluetooth
● Matter compatible (official certification)
● Switching capacity up to 8 to 240 V AC
● Free cloud data storage for analysis and optimization of energy consumption
● Ideal for retrofit, can be installed behind existing outlets and switches
● Remote control via App Shelly Smart Control, Browser or Domotic Platforms
● does not require hub: works autonomously on a local Wi-Fi network
● Compatible with Alexa, Google Home, Samsung Smartthings, Home Assistant, among others
● Supports local schedules, scenes and actions
● Improved processor for higher performance
● Web interface incorporated for local control and configuration
● Advanced scripting support, https, mqtts, web sockets (input and output)
● KNX compatible (KNXNET/IP)
● Ble Gateway Functionality: Integrates Shelly Blu devices
● Zigbee and integrated Wi-Fi range extensor
● Safety protections: against overheating, overtension, overcurrent and overload
● Supports resistive, capacitive and inductive loads
● Integrated multifunction button for quick access to pairing and reset modes
● Monochrome LED indication with defined operating states
● Electric interfaces:
· 1 button/switch input
· 2 power inputs (n and l)
· 1 Exit with energy measurement
Cases of Use
✅ Control of electrical appliances: Allows remotely turning on and off lights, fans and other devices.
✅ Consumption monitoring: Measures real -time energy consumption, helping to identify patterns of use.
✅ Residential Automation: Easily integrates into domootic systems to create custom scenes and schedules.
✅ Energy efficiency: Helps detect high consumption devices, promoting more efficient choices.
✅ Remote monitoring: Possibility to control and track devices from anywhere with internet access.
✅ Installations with limited space: Compact design allows installation in standard apparatus boxes, even in places with little space.
Technical Specifications
◾ Physical
- Dimensions (a × l × p): 29 × 34 × 16 ± 0.5 mm
- Weight: 18 ± 1 g
- Binary max. Screw terminals: 0.4 nm
- Conductor section: 0.2 to 2.5 mm²
· Solid, enclosed or with tips wires
- Isolation length to be removed: 6 to 7 mm
- Assembly: Power box
- BOX MATERIAL: Plastic
-Box color: Red (C-3%; M-100%; Y-70%; K-12%)
- Connectors Color: Gray Gray
◾ Environmental
- Operating temperature: -20 ºC to 40 ° C
- Relative humidity: 30 % to 70 % rh
- Maximum altitude: 2000 m
◾ Electric
- Food: 110–240 V AC
- Relay: Contact NA, 1 Polo, µ-Contact
- Recommended external protection:
· Founding character B or C
· Nominal current max.: 10 A
· Minimum cutting power: 6 ka
· Energy limitation class: 3
◾ Output circuit
- Max tension. Switching: 240 V AC
- Max current. switching: 8 to / 240 v AC
- Energy measurement: yes
- Overvate protection: yes
- Protection against overcurrent: yes
- Overload Protection: Yes
◾ Sensors and meters
- Internal Temperature Sensor: Yes
◾ Radio
- Wi-Fi
· Protocol: IEEE 802.11 b/g/n
· RF Band: 2412 - 2472 MHz
· Max power. RF: <20 dbm
· Range: up to 30 m (interior), up to 50 m (outer)
- Bluetooth
· Protocol: 5.0
· RF Band: 2402 - 2480 MHz
· Max power. RF: <4 dbm
· Range: up to 10 m (interior), up to 30 m (outer)
- Zigbee
· Protocol: IEEE 802.15.4
· RF Band: 2400 - 2483.5 MHz
· Max power. RF: <20 dbm
· Range: up to 100 m (interior), up to 300 m (outer)
◾ Microcontrol unit
-CPU: Esp-Shelly-C68F
- Flash Memory: 8 MB
◾ Firmware features
- Schedules: Up to 20
- Webhooks (actions by URL): Up to 20, with 5 URLs per webhook
- Scripting: Yes
- MQTT: Yes
