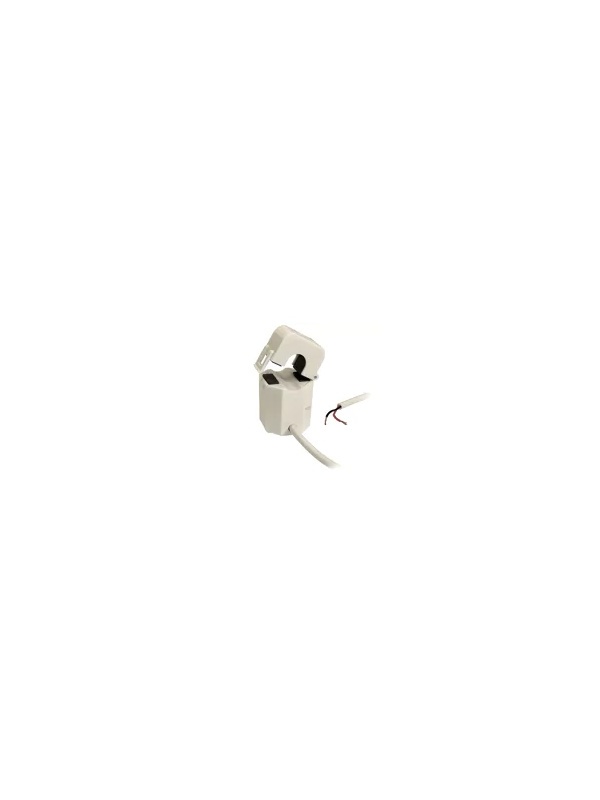

Shellycore50a - Current Measurement Center Ø11mm for Shelly EM - 50A
€11.85
/ uni
(IVA included)
€9.63
/ uni
(Without IVA)
Delivery cost is not included
Description
Intensity (or current) transformer with abbred ferrite core, for measuring high currents AC. Designed for shelly modules, specific to consumption measurement.
Allows easy installation without interrupting the electrical circuit you want to monitor.
Specifications
- Nominal primary current: 50a
- saturation current: ≥85a
- Nominal secondary current: 16.67MA
- Current transformation ratio (primary/secondary): 3000/1
- Precision: 1%
- Internal diameter: 11mm
- Dielectric stiffness: 3000vac 1ma 60s
- Load resistance: 20Ω
- Nucleus: FERRITE, ABBLY
- Compatible with: Shelly in
