Shellyem - Two -channel power meter and Wi -Fi access.
Description
Shelly Energy Meter is a two-channel power meter and access to the Wi-Fi network.
Various available IT options.

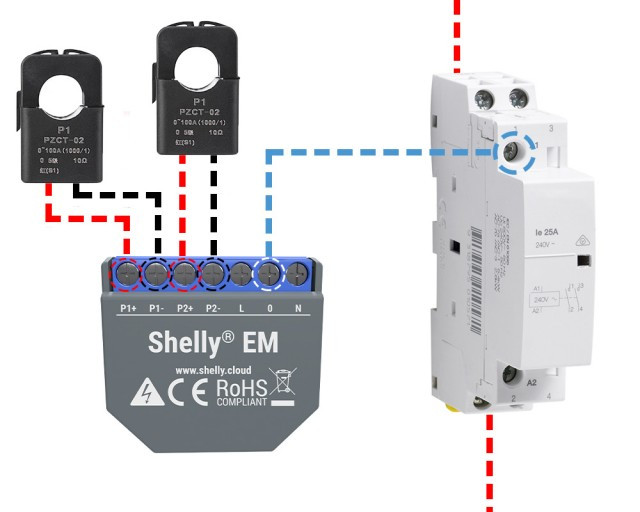

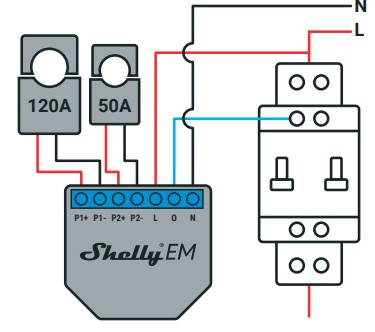

It is intended to be mounted on a standard wall console or close to circuit breakers to monitor electricity through it, independent for each channel and contactor control for heavy services. Shelly can act as an independent device or as an accessory for a residential automation controller.
Power supply:
110-230V ± 10% 50/60Hz AC
Max measurement per channel:
120a/230V
Relay Max Load:
2a/230V
Complies with I Standards:
- Re Directive 2014/53/Me
- LVD 2014/35/Me
- EMC 2004/108/We
- Rohs2 2011/65/EU
Working Tempeature:
- 40 ° C UP TO 40 ° C
Radio Signal Power:
1mw
Radio Protocol:
WIFI 802.11 B/G/N
Frequency:
2400 - 2500 MHz;
Operational Range (Depending on Local Construction):
- Up to 50 m Outdoors
- Up to 30 m indoors
Dimensions (HXWXL):
39 x 36 x 17 mm
Electrical Consumption:
<1 W
