ShellyPro2pm - Mód Din rail w/2rel me wifi/bt/lan 110/240vac 2x1

Description

The Shelly Pro 2PM is a professional 2-channel relay, supporting up to 16A per channel with a total capacity of the 25 A device. It has Wi-Fi, LAN and Bluetooth connectivity, ideal for residential automation and remotely controlled installations.

It is equipped with two accurate power meters that allow you to measure consumption on each channel separately and is prepared for bidirectional engines control (up to 600 W) which makes it perfect for automation of blinds, curtains and motorized awnings.

Shelly Pro 2 is enriched with script features, allowing users to define custom automation scenes based on various occurrences such as weather forecasting, wind strength forecasting, etc.

It has enhanced safety features and is compatible with the most commonly used residential automation platforms.


FOOD
- Alternate current: 110-240v AC ± 10%, 50/60Hz
- Consumption: <4 W

Exits:
- No. of contacts (channels): 2
- Maximum load per channel @230V AC: 16a
- Total maximum load (together): 25A
- Dry contacts: no
- Maximum voltage: 240V

Special functions
- Roller-Shutter mode (blind engine control)
- Protection against overheating: yes
- Overload Protection: Yes
- Power measurement: yes (only AC)

Driver section
- Food and Switches: 0.5 - 1.5mm²
- Exit contacts: 0.5 - 2.5mm²

Funds
- Webhooks http / https: yes
- Custom Scripts (MJS): Yes
- MQTT: Yes
- URL Actions: 20
- SCHEDULING: 50
- Intelligent turn / off: yes
- Local and remote control: yes
- Sun Sunrise: Yes
- Weekly time: yes

Connectivity
- Types: LAN, Wi-Fi and Bluetooth
- Wi-Fi Protocol: 802.11 B / G / N
- Wi -Fi frequency: 2412 - 2472 MHz
- Radio signal power: 1mw
- Wi-Fi range: up to 50m outdoors and up to 30m indoors (depending on building materials)
- Bluetooth: Yes
- Ethernet: Yes

Other characteristics:
- CPU: ESP32

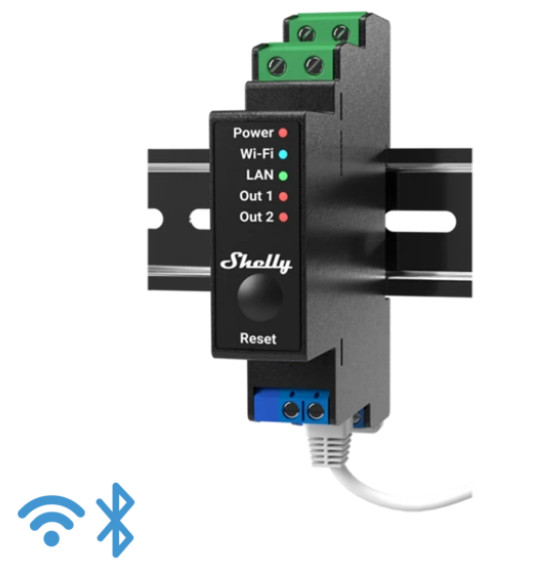

- Montable in Din's Gutter
- Operating temperature: 0 ° C - 40 ° C
- Dimensions (Axlxc): 68.5 x 18.5 x 89.5 mm


NOTE: For Roller-Shutter mode to work properly, a shelly Pro 2PM firmware update may be required.
