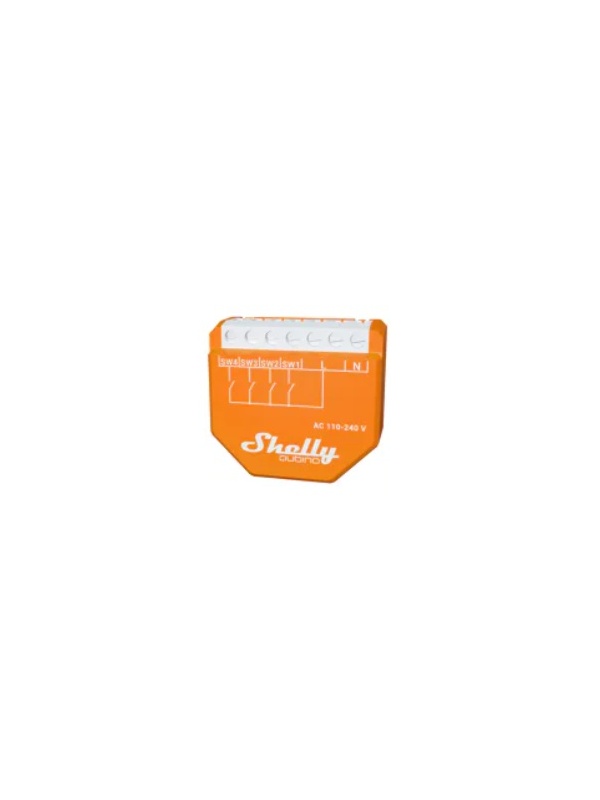

Shellyqubinowavei4 -Scenario activation Module for Z -Wave ™ automation (110-240v AC) -4 inputs

Description

4 digital input controller with Z-Wave ™ connectivity for more personalized and enhanced actions control.

Once installed, include it on your Z-WAVE network (you need a Z-Wave gateway) and set it using your smartphone or tablet. With a simple tap a wall button, you can enable or disable any created scenario, perform synchronized actions or complex shooting scenarios. Allows you to set buttons to simultaneously control lights, blinds and other devices in specific divisions or even throughout the house.

Due to its retrofit design, it is small enough to fit behind any wall switch.

Once configured, you can communicate directly with other devices on your Z-Wave local network and trigger actions without the presence of a hub! (but is limited to 2 button actions in this case).

Features:
● WAVE I4 is an input reading device (contains no relays).
● It is designed to be installed behind switches or pressure buttons.
● Supports up to 16 possible actions, ie 4 actions in each of the entries:
· 1 simple click
· 2 clicks
· 1 Long click
· Button release
● Extremely low energy consumption (0.2 W)
● Z-Wave frequency band for CEPT countries (868.4 MHz)
● Newer technology: Z-Wave 800 Series
● Automatic configuration with smartstart
● Security 2 Authenticated to the highest level of security
● Over-The-Air Firmware Updates (OTA)
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices
● Compatible with Shelly Plus Add-On for sensor connection.

Specifications
- Electric:
· Ac Food: 110-240V AC, 50/60 Hz
· DC Food: Not supports
· Energy consumption: <0.2 W
· Number of inputs: 4
- Z-WAVE®:
· Z-Wave® frequency band: 868.4 MHz
· Z-Wave signal range: up to 40m in internal environments (depends on local conditions)
· Z-Wave® repeater: yes
· CPU: Z-WAVE® S800
· Maximum signal power: <25 MW
- Assembly: in wall of walls
- Terminals:
· Maximum screw terminals binary: 0.4 nm / 3.5 lbin
· Driver cross section: 0.5 to 1.5 mm (20 to 16 AWG)
· Length of the uncharged driver: 5 to 6 mm
- Environmental:
· Ambient temperature: -20 ° C to 40 ° C
· Humidity: 30 % to 70 % rh
- Physical:
· Enclosure Material: Plastic
· Color: Orange
· Weight: 17 g
· Size (a x l x p): 37x42x16mm

IMPORTANT:
◾ To configure this device and use all its features, a gateway or Smart Hub with Z-Wave connectivity (not included) is required.
◾ This device does not work with the Shelly App application, to configure/control it, you will have to use the specific application for the gateway you want to use.
