Shellytrv - Wi -Fi Thermostatic Valve for Water Radiator

Description

Wi-Fi controlled thermostatic valve for water radiator in central heating systems.

Main features:
• Highly efficient heating management to save on power accounts;
• 6,500 mAh rechargeable battery, lasting a charge of up to 2 years;
• Broad temperature control range, from 5 ° C to 30 ° C;
• Substitution of an old thermostatic valve with a shelly TRV in less than 2 minutes;
• You can control it from anywhere (even out of the house).
• Configure Shelly TRV to activate custom scenarios based on time, light or multiple actions.

SPECIFICATIONS
◾ Electric
- Power supply: Rechargeable Battery Li-ion 3.7V / 6500 MAH (Panasonic NCR18650BD)
- Estimated battery life: up to 2 years (depending on working conditions)
- Loading: USB-C (adapter and power cord not included)
- Charger requirements: current greater than 2a
- Energy consumption: <500 mA
◾ Wi-Fi
- Wi-Fi Protocol: 802.11 B/G/N
- Wi-Fi range: up to 30m in internal and 50m environments in outdoor environments (depends on local conditions)
- RF Band: 2401 - 2495 MHz
- Max power. RF Power: <20 dbm
◾ MCU
- CPU: Silabs
- Flash: 6 MB
◾ Firmware capabilities
- Temperature control range: 5 to 30 ° C
- Schedules: 5 profiles
- Webhooks (URL Actions): 6 with 5 URLs per hook
- Scripting: No
- MQTT: Yes
- Coap: Yes
◾ Integration
- Google
- Samsung Smartthing
- Alexa
◾ Sensors
- Temperature sensor: yes
◾ Environmental
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 % hr
- Maximum altitude: 2000 m
◾ Physical characteristics

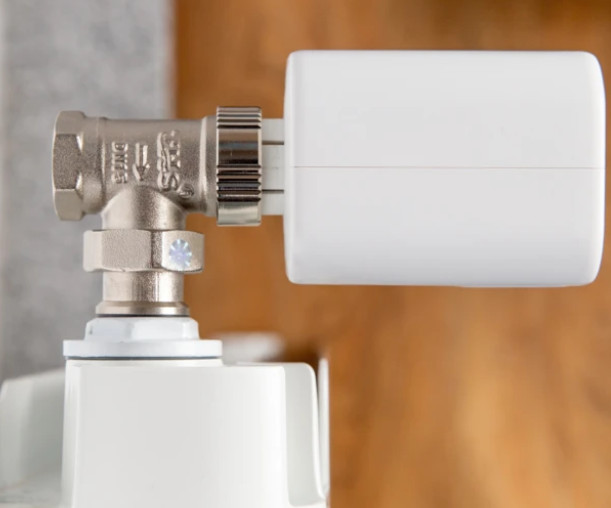

- Assembly: radiator valve
- Thread: M30x1.5 (adapters included for other types)

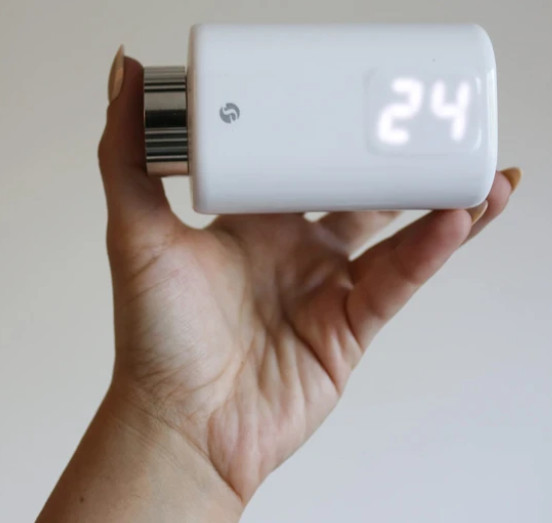

- Display: With two digits of seven segments (LED)
- Enclosure material: Plastic
- Color: White
- Size (HXWXD): 94x62x53mm
- Weight: 240 g
