Shellywallswitch1Black - Wall Sword 1 button for Shelly - PRE

Description

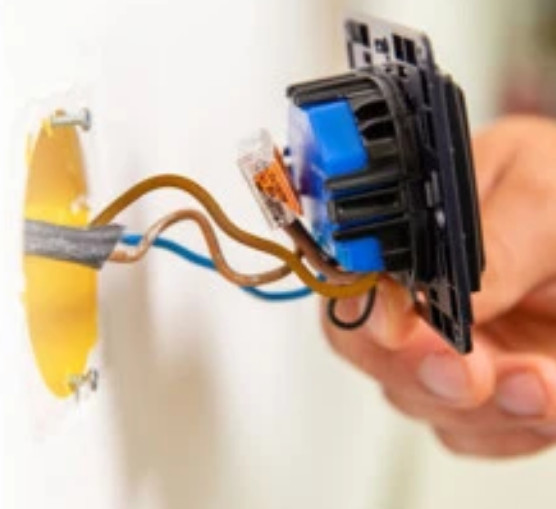

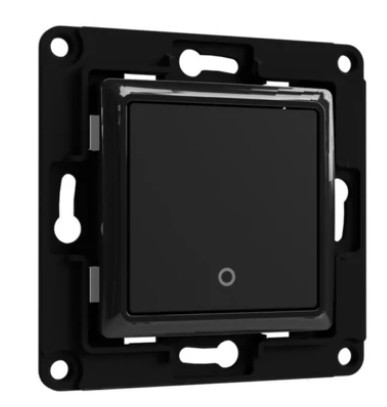

This wall switch, for Shelly smart modules, allows for a simpler installation from any of the compatible modules in a typical apparatus box.

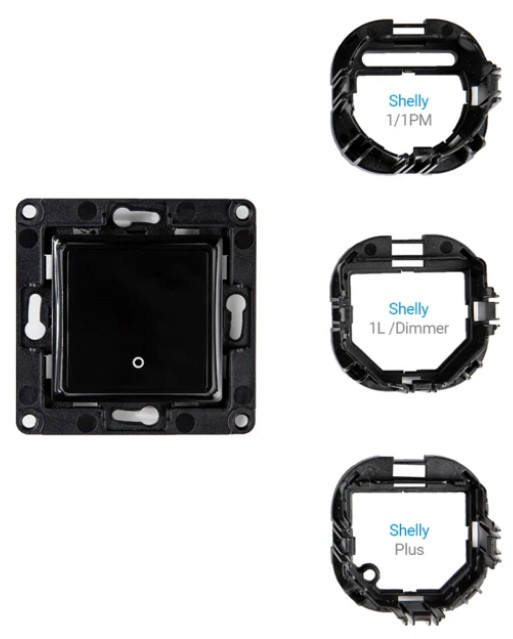

This 1 button switch comes with 3 fitting supports for different Shelly modules:
• Support 1: Shelly 1 / Shelly 1pm
• Support 2: Shelly Plus 1 / Shelly Plus 1pm
• Support 3: Shelly 1L / Shelly Dimmer 2

SPECIFICATIONS:
• Brand/Model: Shelly Shwws1wh
• Button type: momentary (pressure, monostable)
• Quantity of buttons: 1
• Maximum switching potential: 12V DC / 18V AC
• Maximum switching current: 50MA
• Operating temperature: -20 ° C to 70 ° C
• Humidity of operation: up to 85%
• Compatible with:
- Shelly 1,
- Shelly 1pm,
- Shelly Plus 1,
- Shelly Plus 1pm,
- Shelly 1l,
- Shelly Dimmer

Notes:
• Shelly module not included;
• The frames/mirrors are sold separately;
• In addition to Shelly's mirrors, there are other models on the market compatible with this switch, such as the Legrand Niloé series.

ATTENTION:
Shelly wall switches should be used in combination with shelly devices or other similar devices. The potential difference in the switch should not exceed 12VDC and the current in the switch may not exceed 50ma. Therefore never use these switches to directly connect 230V AC loads.
