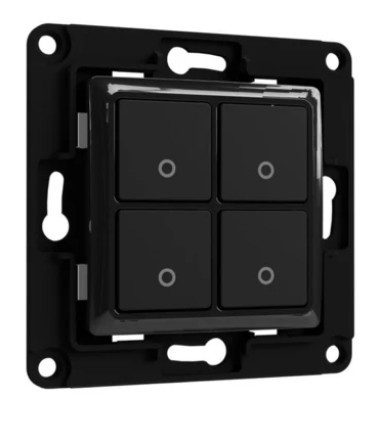

Shellywallswitch4black - Wall Switch 4 Buttons for Shelly Modules - PR

Description

This wall switch, for Shelly smart modules, allows for a simpler installation from any of the compatible modules in a typical apparatus box.

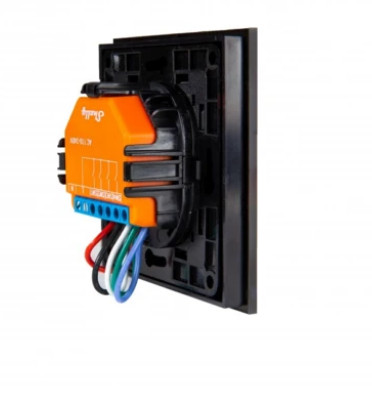

This 4 -button switch comes with a fitting support for Shelly Plus modules, but was designed with special attention to Shelly I4 / I4 DC. Other modules can also be used with this switch, such as two Shelly 2.5, but the support for this model has not been included.

SPECIFICATIONS:
• Brand/Model: Shelly Shwws4Wh
• Type of buttons: momentary (pressure, monostable)
• Number of buttons: 4
• Maximum switching potential: 12V DC / 18V AC
• Maximum switching current: 50MA
• Operating temperature: -20 ° C to 70 ° C
• Humidity of operation: up to 85%
• Compatible with: Shelly Plus i4

Wires:
• Red: Electric power (common)
• Black: Switch 1
• Blue: Switch 2
• Green: Switch 3
• White: Switch 4

Notes:
• Shelly module not included;
• The frames/mirrors are sold separately;
• In addition to Shelly's mirrors, there are other models on the market compatible with this switch, such as the Legrand Niloé series.

ATTENTION:
Shelly wall switches should be used in combination with shelly devices or other similar devices. The potential difference in the switch should not exceed 12VDC and the current in the switch may not exceed 50ma. Therefore never use these switches to directly connect 230V AC loads.
