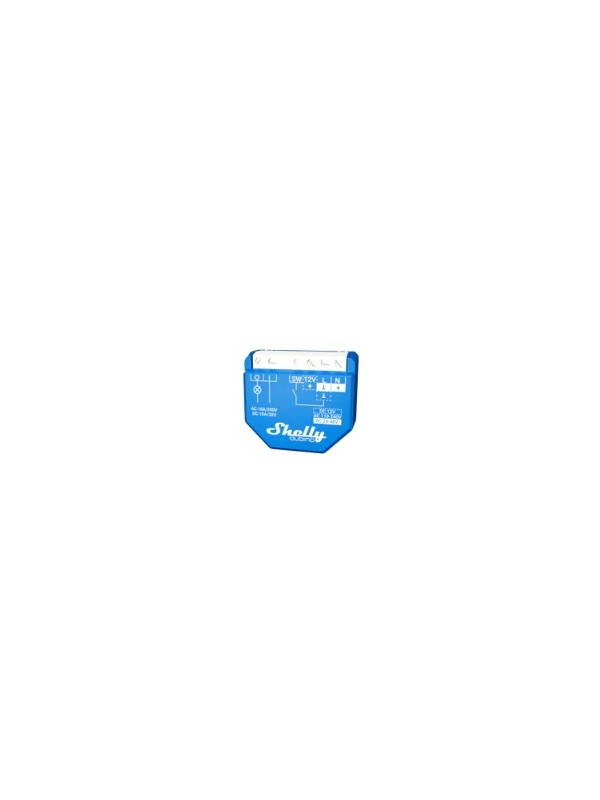

Shellywave1 - Z -WAVE ™ Automation Switch 1 Channel 16 A

Description

Control a wide range of office devices and equipment, such as electric locks, gates, garage doors, watering systems, LED tapes, lights and sockets, intelligently and/or from anywhere.

Wave 1 works with voltages of 110-240v AC or 12V DC or 24-48V DC and has a dry contact (free of potential), which makes it perfect for controlling apparatus or systems that use tensions not mandatory equal to Wave 1 feeding (such as garage gates or irrigation systems).

This module, from the Shelly Qubino series, works with Z-Wave and can communicate perfectly with other devices that use this technology, regardless of your brand or platform, but it takes a centralized smart hub.

WAVE 1 is designed to be installed behind any switch or taking it, transforming it instantly into a smart device. Once installed, include it on your Z-WAVE network and control the light-bound lights or devices from anywhere, using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave Gateways and Gateways.

Once configured it can establish direct communication with other Z-Wave devices and perform some personalized actions without the presence of a hub! It also allows you to create personalized schedules aligned with your daily routine or synchronize actions with sunrise/sunset to manage your lighting or create custom scenarios, but it takes a gateway.

Features:
● The latest Z-Wave Technology (800 Series)
● Z-Wave frequency band: 868.4 MHz (CEPT countries)
● Automatic configuration with smartstart
● Large variety of supported feed voltages
● Dry contact (free of potential) that supports up to 16th
● Extremely low energy consumption: 0.3 W
● Authenticated for the highest level of security (S2)
● Supports firmware updates through the air (OTA)
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices

SPECIFICATIONS
-Food: 110-240V AC / 24-48V DC / 12V DC ± 10%
- Energy consumption: <0.3 W
- Contact:
· Potential free: yes (dry contact)
· Maximum voltage / current of switching AC: 240V / 16 A
· Voltage / maximum switching current DC: 30V / 10 A
-CPU: Z-WAVE ™ S800 (System-in-Package)
- Z-WAVE COMMUNICATION:
· Frequencies: Under-G (from 868.4 to 920.9 MHz)
· Z-WAVE ™ repeater: yes
· Range: up to 40m in interior spaces (depends on local conditions)
- Protection against overheating: yes
- Driver cross section: 0.5 to 1.5 mm² (20 to 16 AWG)
- Enclosure material: Plastic
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% hr
- Color: Blue
- Weight: 26 g
- Size (a x l x p): 37x42x16 ± 0.5 mm

IMPORTANT:
◾ To configure this device and use all its features, a gateway or Smart Hub with Z-Wave connectivity (not included) is required.
◾ This device does not work with the Shelly App application, to configure/control it, you will have to use the specific application for the gateway you want to use.
