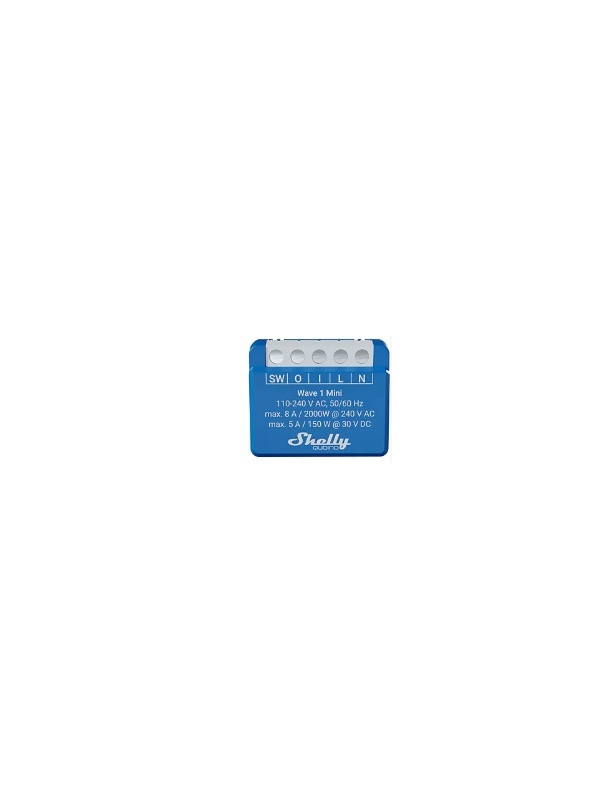

Shellywave1mini - Mini Z -Wave ™ Automation Switch 1 Channel 8 A (dry contact)

Description

Control a wide range of devices and equipment, such as electric locks, gates, garage ports, irrigation systems, LED tapes, lighting circuit, etc., intelligently and/or from anywhere.

The Wave 1 Mini works with 110-230v AC tensions or it has a dry contact (free of potential), which makes it perfect for controlling apparatus or systems that use tensions not necessarily equal to the feed of Wave 1 Mini (such as garage gates, irrigation systems and more).

This module, from the Shelly Qubino series, works with Z-Wave and can communicate perfectly with other devices that use this technology, regardless of your brand or platform. However, to fully explore its abilities, it is recommended to use a centralized intelligent hub.

The Wave 1 Mini is designed to be installed behind any wall switch or even within the device itself to be controlled by instantly transforming it into a smart device. Once installed, include it on your Z-Wave network and control it from anywhere using your smartphone or tablet. Shelly Qubino devices are compatible with a wide range of Z-Wave devices and gateways.

After configuration, he can establish direct communication with other Z-Wave devices and perform some personalized actions without the need for a hub! It also allows you to create personalized schedules aligned with your daily routine or synchronize actions with sunrise/sunset to manage your lighting or create custom scenarios, but it takes a gateway.

Features:
● The latest Z-Wave Technology (800 Series)
● Z-Wave frequency band: 868.4 MHz (CEPT countries)
● Automatic configuration with smartstart
● Dry contact (potential free) that supports up to 8A to 230V AC and 5a to 30V DC
● Extremely low energy consumption: <0.3 W
● Authenticated for the highest level of security (S2)
● Supports firmware updates through the air (OTA)
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices

SPECIFICATIONS
- Food: 110-230V AC 50/60Hz
- Energy consumption: <0.3 W
- Contact:
· Potential free: yes (dry contact)
· Maximum voltage / current switching AC: 240V / 8 A
· Maximum switching power AC: 2000 W
· Voltage / maximum switching current DC: 30V / 5 A
-CPU: Z-WAVE ™ S800 (System-in-Package)
- Z-WAVE COMMUNICATION:
· Frequencies: Under-G (from 868.4 to 920.9 MHz)
· Z-WAVE ™ repeater: yes
· Range: up to 40m in interior spaces (depends on local conditions)
- Protection against overheating: yes
- Driver cross section: 0.5 to 1.5 mm² (20 to 16 AWG)
- Enclosure material: Plastic
- Operating temperature: -20 ° C to 40 ° C
- Humidity: 30% to 70% hr
- Color: Blue
- Weight: 19 g
- Size (a x l x p): 29x35x16 mm

Note: Compared to Shelly Qubino Wave 1, the Shelly Qubino Wave 1 Mini is 35% smaller; It has similar features but cannot be powered by DC tensions and relay contact only supports up to 8A instead of the 16th.

IMPORTANT:
◾ To configure this device and use all its features, a gateway or Smart Hub with Z-Wave connectivity (not included) is required.
◾ This device does not work with the Shelly App application, to configure/control it, you will have to use the specific application for the gateway you want to use.
