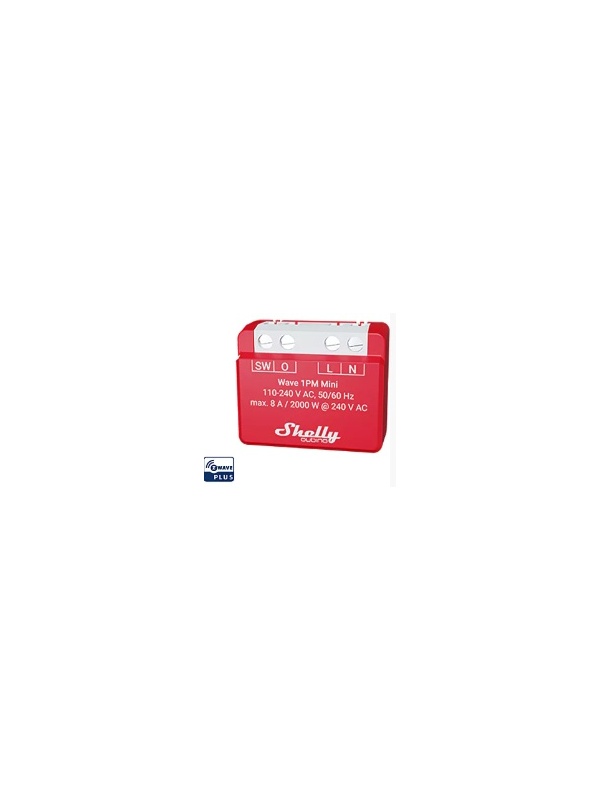

Shellywave1pmmini -Mini Module Switch for Z -Wave ™ Automation with power measurement 110/240VAC -8a

Description

The smallest Z-Wave smart switch in the world for intelligent control. Automatize and remotely control your lights or a wide range of small electrical appliances and measure your energy consumption.

Due to its compact design, the Mini Wave 1PM can be perfectly installed in apparatus boxes (behind a switch) or even inside an electrical device, instantly turning it into a smart device.

With this device, you can create personalized schedules, aligned with your daily routine, or synchronize your lighting with sunbathing/sunset. Combining it with other smart devices, you can create custom scenes and smart automations.

Character
- Uses Z-Wave technology with a frequency band 868.4 MHz (CEPT countries).
-Compatible with Z-Wave certified gateways and more than 4,000 Z-Wave devices
- It has a relay with contact that supports up to 8A to 240V AC (approx. 2000W).
- Allows you to monitor energy consumption, accurately and in real time.
- Extremely low energy consumption (<0.3 W).
- Newer technology: 800 Z-Wave Series.
- Automatic configuration with smartstart.
- Security 2 Authenticated to the highest level of safety.
-Supports Over-The-Air (OTA) firmware updates.
- Quick and simple installation in most electric switches boxes.

SPECIFICATIONS
- Electric power: 110 - 240V AC, 50/60 Hz
- Energy consumption: <0.3W
- Power measurement [W]: Yes
- Relay:
· Maximum switching voltage AC: 240 V
· Maximum switching current AC: 8 A
· Maximum switching power AC: 2000 W
· Max voltage. Switching DC: N/A
· Máx current. Switching DC: N/A
- Protection against overheating: yes
- Overload Protection: Yes
- Z-WAVE:
· Z-Wave® frequency band: 868.4 MHz
· Range: up to 40 m indoors (depends on local conditions)
· Z-Wave® repeater: yes
· CPU: Z-WAVE® S800
· Maximum radio frequency power transmitted in the frequency band (s): <25 MW
- Assembly: Wall Box
- Terminals:
· Maximum binary of screw terminals: 0.4 nm
· Driver cross section: 0.5 to 1.5 mm² (20 to 16 AWG)
· Length of the uncharged driver: 5 to 6 mm
- Enclosure material: Plastic
- Environmental:
· Ambient temperature: -20 ° C to 40 ° C
· Humidity: 30% to 70% rh
· Maximum altitude: 2000 m
- Color: Red
- Weight: 18g
- Size (a x l x p): 29x35x16 mm

IMPORTANT:
◾ To configure this device and use all its features, a gateway or Smart Hub with Z-Wave connectivity (not included) is required.
◾ This device does not work with the Shelly App application, to configure/control it, you will have to use the specific application for the gateway you want to use.
