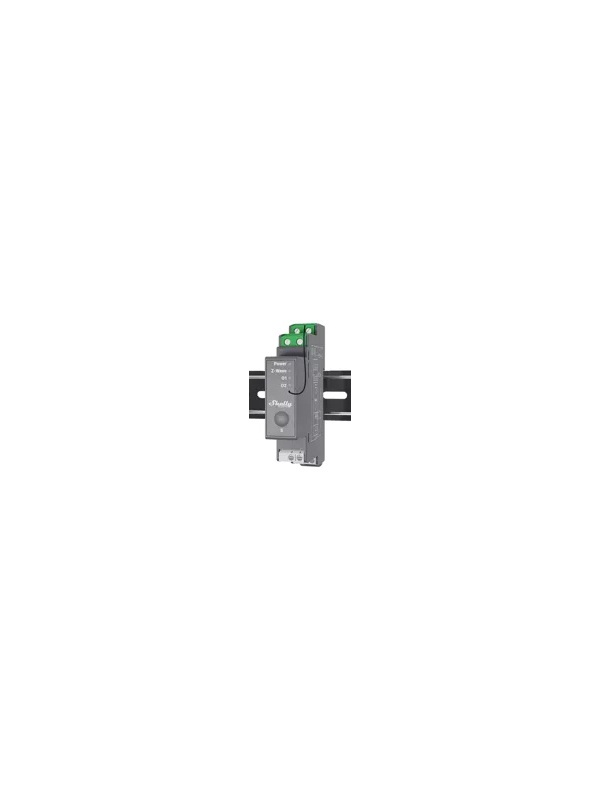

Shellywavepro2 - Din rail module w/ 2 z -wow ™ automation relays - 110/ 240VAC 16A (dry contacts)
Description
Intelligent Z-Wave®, professional, 2-channel, with dry (free potential) contacts of 16A, to assemble in DIN rail (within an electrical frame).
Suitable for intelligent automation of homes and remotely controlled installations.
● Uses the latest Z-Wave technology: Z-Wave 800 Series.
● Z-Wave frequency band: 868.4 MHz (CEPT countries).
● Has two channels with potential free contacts (dry contacts).
● Allows you to turn on/off 2 circuits or devices with a load of up to 16 A.
● It is compatible with switches (by default) and pressure buttons.
● Mounting on Din Gutter.
● Extremely low energy consumption (<0.3 W).
● Automatic configuration with Smartstart.
● Authenticated for the highest level of safety (S2).
● Overocketing protection (off the output and sends a notification).
● Over-The-Air Firmware Updates.
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices.
SPECIFICATIONS:
- Electric power: 110-240v AC, 50/60 Hz
- Energy consumption: <0.3 W
- Contacts:
· Potential free: yes (dry contacts)
· Voltage / maximum switching current AC: 240V / 16 A per channel
· Maximum current for the two channels together: 25 a
· Voltage/maximum switching current DC: not specified
- Protection against overheating: yes
- Power measurement: no
- Z-WAVE COMMUNICATION:
· Frequencies: Under-G (from 868.4 to 920.9 MHz)
· CPU: Z-WAVE S800
· Z-WAVE ™ repeater: yes
· Range: up to 40m in interior spaces (depends on local conditions)
- Assembly: DIN rail
- Cross -sectional section of the driver:
· Green connector: 0.5 to 2.5 mm² (20 to 14 AWG)
· White connectors: 0.5 to 1.5 mm² (20 to 16 AWG)
- Enclosure material: Plastic
- Color: Gray
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 % hr
- Maximum altitude: 2000 m
- Weight: 73 g
- Size (a x l x p): 94x19x69 mm
IMPORTANT:
◾ To configure this device and use all its features, a gateway or Smart Hub with Z-Wave connectivity (not included) is required.
◾ This device does not work with the Shelly App application. To configure/control it, you will have to use the specific application for the gateway you want to use.
