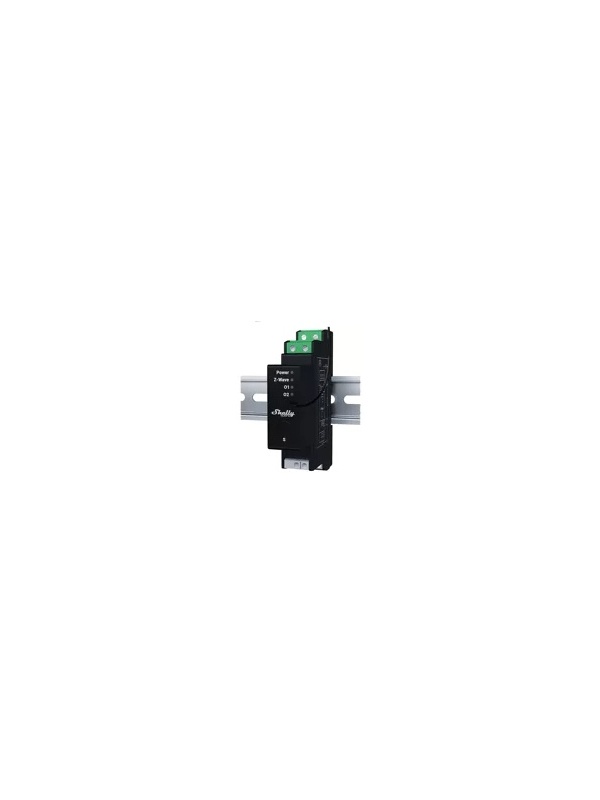

ShellywavePro2PM - Din rail module w/ 2 relays and power measurement for z -wave ™ automation - 110/ 240VAC 16A

Description

Z-Wave®, professional, 2-channel, energy measurement and 2 independent contacts that support up to 16a each (25A together). It is a module designed to be mounted on a DIN rail (within an electrical frame) and is suitable for intelligent automation of remotely controlled houses and installations.

● Uses the latest Z-Wave technology: Z-Wave 800 Series.
● Z-Wave frequency band: 868.4 MHz (CEPT countries).
● Has two channels with potential free contacts (dry contacts).
● Allows you to turn on/off 2 circuits or devices with a load of up to 16 to (each).
● MEASUREMENT OF THE POWER AND ENERGY CONSUMPTION OF TWO CHARGES, separately or together.
● Protections against overheating, overload and overtension.
● Any of the protections, turn off the output and sends a notification.
● Mounting on Din Gutter.
● Extremely low energy consumption (<0.3 W).
● Automatic configuration with Smartstart.
● Authenticated for the highest level of safety (S2).
● Over-The-Air Firmware Updates.
● Works with Z-Wave certified gateways and more than 4000 Z-Wave devices.

SPECIFICATIONS:
- Electric power: 110-240v AC, 50/60 Hz
- Energy consumption: <0.3 W
- Contacts:
· Maximum voltage / current of switching AC: 240V / 16 A (each)
· Maximum current for the two channels together: 25 a
· Voltage/maximum switching current DC: not specified
· Potential free: no ("wet" contacts)
- Protections against:
· Overheating
· Overload
· Overtension
- Power measurement: yes
- Z-WAVE COMMUNICATION:
· Frequencies: Under-G (from 868.4 to 920.9 MHz)
· CPU: Z-WAVE S800
· Z-WAVE ™ repeater: yes
· Range: up to 40m in interior spaces (depends on local conditions)
- Assembly: DIN rail
- Cross -sectional section of the driver:
· Green connector: 0.5 to 2.5 mm² (20 to 14 AWG)
· White connectors: 0.5 to 1.5 mm² (20 to 16 AWG)
- Enclosure material: Plastic
- Color: Black
- ambient temperature: -20 ° C to 40 ° C
- Humidity: 30 % to 70 % hr
- Maximum altitude: 2000 m
- Weight: 75 g
- Size (a x l x p): 94x19x69 mm

IMPORTANT:
◾ To configure this device and use all its features, a gateway or Smart Hub with Z-Wave connectivity (not included) is required.
◾ This module does not allow the connection of two loads at different phases.
◾ This device does not work with the Shelly App application. To configure/control it, you will have to use the specific application for the gateway you want to use.
