ShellywaveProshutter - Module for Electric Estor Automation via Z -Wave ™ P/ DIN
Description

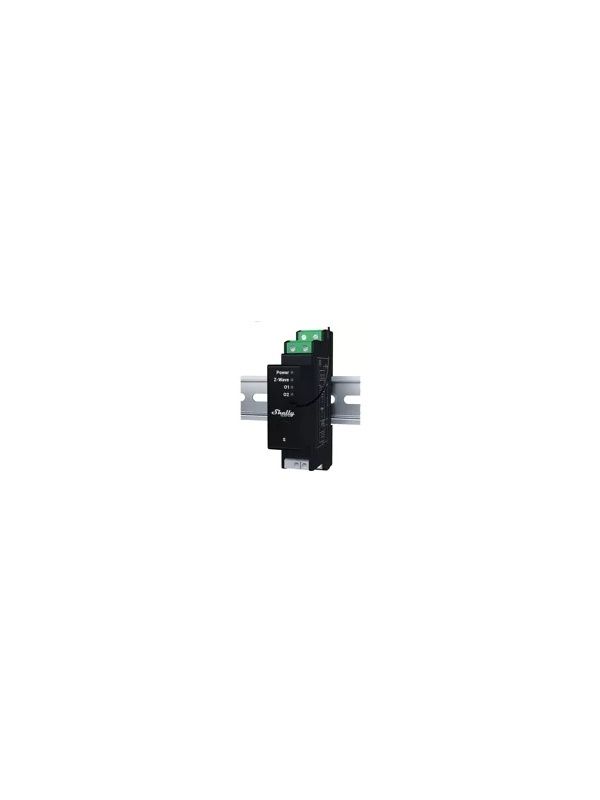

The Shelly Qubino Wave Pro Shutter is a built-in Z-Wave 800 module, designed to accurately control and position it with 240V bidirectional AC engine. Ideal for control from a central switch or distribution frames, as it has a fit for installation in din gutter.
The module supports energy measurement and is designed to control curtains, blinds, screens, awnings and other motorized solutions, which have electronic or mechanical limit switches.
It is possible to control the wireless module via Z-Wave, as well as through wall switches (simple or double) linked to the module.
It can be powered by a voltage of 110-240vac and the maximum load capacity per output is 16A. In addition, the module is equipped with multiple protection functions, including overheating, overflowing and overcurrent protection.
When using Z-Wave, smart home products can communicate perfectly with each other, regardless of your brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work with the latest Z-Wave chips generation (S800), one of the most popular standard technologies for smart houses worldwide.
Character
• Operated by Z-Wave
• Positioning control of stores or other devices fed by bidirectional AC engines
• Control of the angle of the blades of the Venetian stores
• Latest technology: Z-Wave 800 Series
• Z-Wave frequency band: 868.4 MHz (CEPT countries)
• Supports pressure buttons/momentary switches and alternation switches
• Maximum load capacity of 16A
• Power measurement
• Extremely low energy consumption: <0.3 W
• Protections against overheating, overload and overvoltage
• Automatic Endpoints Calibration
• Safety 2 certified for the highest level of safety
• Supports associations for direct communication between Z-Wave devices
• Supports Over-The-Air Firmware Updates (OTA)
• Works with Z-Wave certified gateways and more than 4,000 Z-Wave devices
SPECIFICATIONS
◾ Electric
- Food: 110 - 240 V AC, 50/60 Hz
- Energy consumption: <0.3 W
- Power measurement [W]: Yes
- Maximum switching voltage AC: 240 V
- Maximum switching current AC: 16 A per channel
- Overheating Protection: Yes
- Overload Protection: Yes
- Overvate protection: yes
◾ Connectivity
- Protocol: Z-WAVE
- CPU: Z-WAVE® S800
- Z-Wave® frequency bands: 868.4 MHz
- Range:
· Up to 40 m in interiors (131 ft.)
· (Varies according to local conditions)
- Z-WAVE® repeater: yes
- Maximum radio frequency power: <25 MW
◾ Environmental
-Operating ambient temperature: -20 ° C to 40 ° C / -5 ° F to 105 ° F
- Humidity: 30% to 70% rh
- Maximum altitude: 2000 m / 6562 ft
◾ Physical
- Assembly: DIN rail
- Cross section of conductors:
· 0.5 to 2.5 mm / 20 to 14 AWG (green connector)
· 0.5 to 1.5 mm / 20 to 16 AWG (white connectors)
- Carcass Material: Plastic
- Color: Black
- Weight: 75 g / 2.65 oz
- Size (AXLXP): 94x19x69 ± 0.5 mm / 3.70x0.75x2.71 ± 0.02 In
Note: A gateway is not included, but it is necessary for device configuration and use of all its potential (this shelly qubino can communicate directly with other Z-Wave devices without the need for a hub using the Z-Wave Associations feature but this functionality has some limitations).
