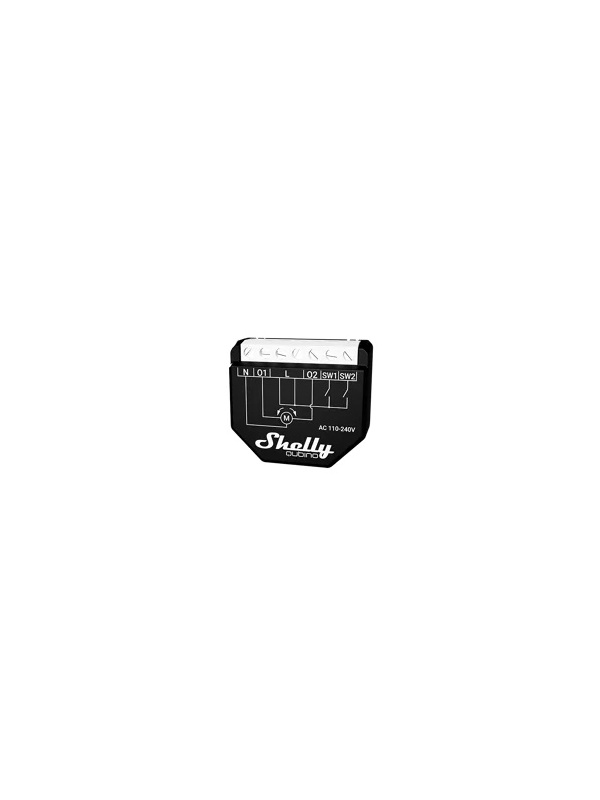

Shellywaveveshutter - Module for Automation of Electric Estor through Z -Wave ™ w/ power measurement

Description

The Wave Shutter is a Z-Wave ™ connectivity device that allows remote control of motorized blunders, rollers, blinds, windows, awnings or any device powered by a bidirectional AC engine.

This module, from the Shelly Qubino series, works with Z-Wave and can communicate perfectly with other devices that use this technology, regardless of your brand or platform, but it takes a centralized smart hub.

You can control it through your smartphone/tablet or according to times or scenes, keeping the manual operating option with a wall switch.

Precise positioning is supported for engines equipped with mechanical or electronic ending. In addition, it also supports control of the tilt position of the blinds of the blind.

Like Shelly Qubino Wave 2pm, this module is also equipped with power meter.

Features:
- Control of the tilt position of the blinds of the blind.
- Supports pressure buttons/momentary switches and tilting switches.
- Measures the power consumption of the device on (stock, blind, awning, etc.).
- The small dimensions allow a simple installation behind wall switches.
- Extended wire range - up to 40m in interior spaces.
- Smartstart for automatic configuration.
-OTA firmware update for over-the-air updates.
- Security Vault ™ ensures the highest level of safety with features, such as safe starter, safe keys management, safe clearance and more.
- Security S2 authenticated.
- Extremely low energy consumption: less than 0.3 W.
-Works with Z-Wave Certified Gateways (Hubs) and more than 4000 Z-Wave devices Z-Wave devices.

Technical Specifications:
◾ Food: 110-240V AC ± 10%
◾ Energy Consumption: <0.3 W
◾ Power measurement: yes
◾ Maximum switching voltage AC: 240 V
◾ Maximum switching current AC: 10A per channel
◾ Overheating Protection: Yes
◾ OverCurrent Protection: Yes
◾ Communication distance: up to 40 m in internal environments (depends on local conditions)
◾ CPU: Z-WAVE S800
◾ Z-Wave repeater: yes
◾ Z-Wave frequency bands: 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919,7-921,7-923.7 MHz; 868.1 MHz; 920.9 MHz
◾ Maximum radio frequency power transmitted: <25 MW
◾ Driver cross section: 0.5 to 1.5 mm² (20 to 16 AWG)
◾ Enclosure material: Plastic
◾ Operating Temperature: -20 ° C to 40 ° C (-5 ° F to 105 ° F)
◾ Humidity: 30% to 70% rh
◾ Maximum altitude: 2000 m
◾ Color: Black
◾ Weight: 29g
◾ Size (Axlxp): 37 x 42 x 16 mm

IMPORTANT:
◾ To configure this device and use all its features, a gateway or Smart Hub with Z-Wave connectivity (not included) is required.
◾ This device does not work with the Shelly App application. To configure/control it, you will have to use the specific application for the gateway you want to use.
