SIMPARY SMITTLE VERTICAL INTELLIGENT SERVICE RELATE - WARNING 868 MHZ JEWELLER - Communication range up to 1100 m - Power supply 230 V AC 50 Hz - There is no need for neutral cable - AJAX - Lightswitch Vertical Lightcore (1 Gang)
€86.36
(IVA included)
€107.95
€70.21
(Without IVA)
Delivery cost is not included
Description

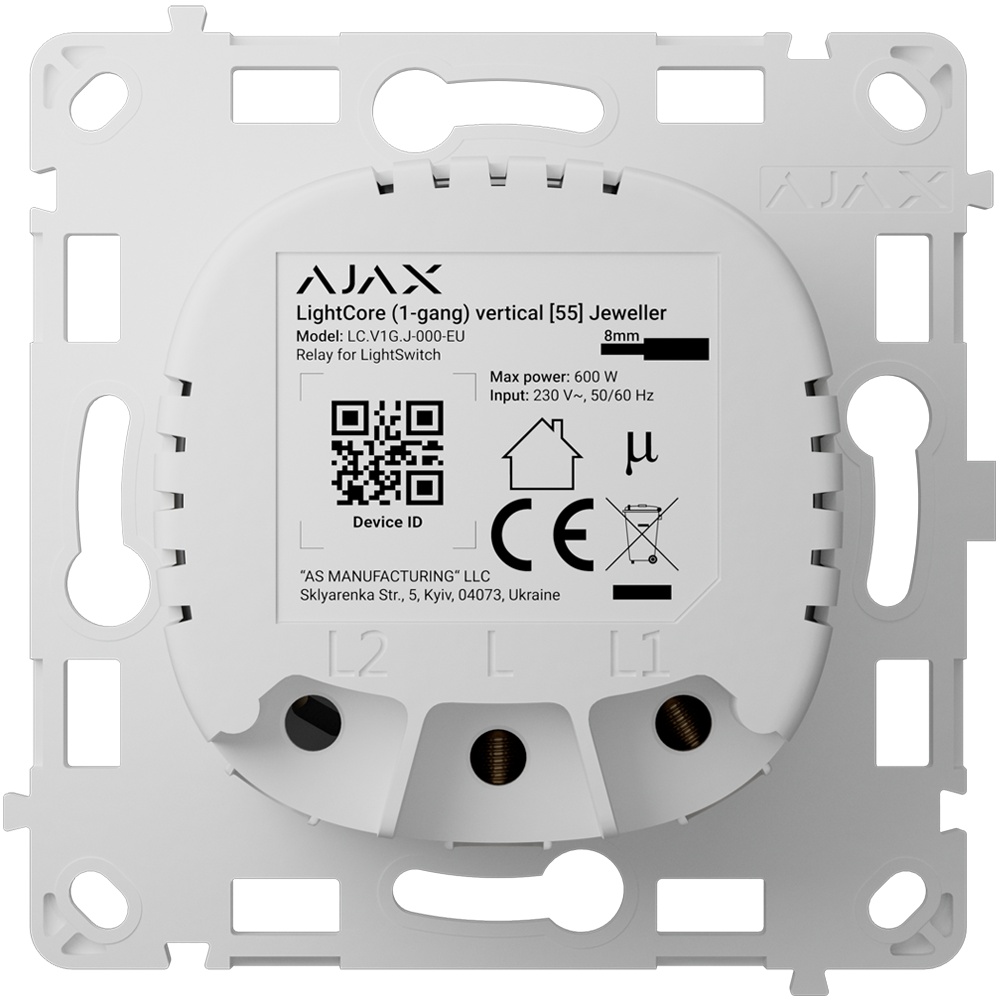

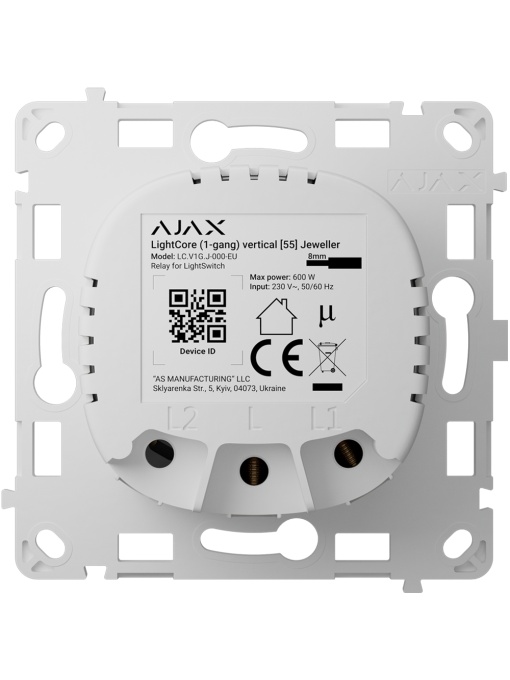

| Mark | AJAX - Lightswitch Lightcore Vertical (1 Gang) |
| Function | Single vertical intelligent light switch relay |
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHZ Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 200 MW |
| Switched device power | From 5W to 600 W |
| Low consumption devices (<5W)) | Install the condenser kit |
| Current and Temperature Protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, Rex, Rex 2 and Hub Hybrid |
| Use | Interior |
| Temp. operation | -10º C ~ 40º C |
| Dimensions | 76.3 (AL) x 72.3 (LG) x 29.2 (FD) mm |
| Weight | 48.34 g |
| Terminals | 1 Terminal for power supply phase cable and 1 terminal for power supply cable from a lighting device or other load (without neutral cable) |
