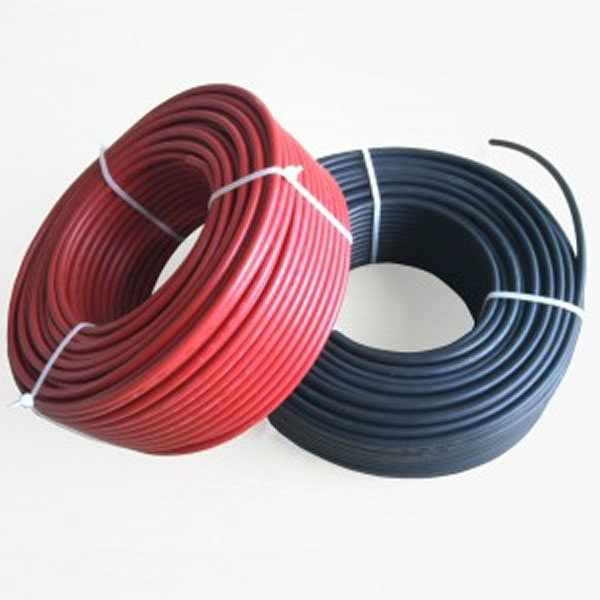

Solar cable 10 mm black
€3.49
/ Mt
(IVA included)
€17.45
/ Set Price (5 Mt)
(IVA included)
€2.84
/ Mt
(Without IVA)
€14.19
/ Set Price (5 Mt)
(Without IVA)
This product is available for sale only in packs of 5 Mt.
Delivery cost is not included
Description

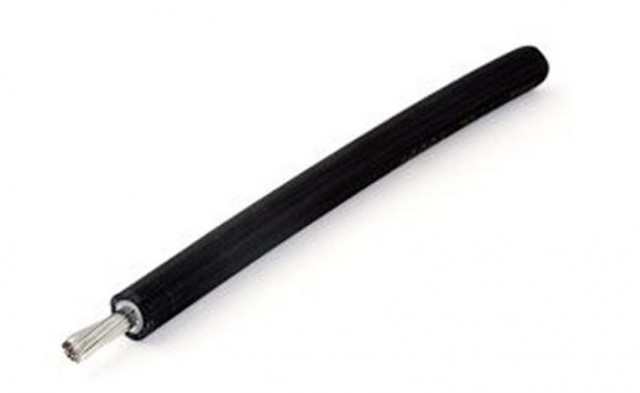

Solar cable PV ZZ-F (AS) 1x10 mm black for photovoltaic solar installations.
- Driver: Electrolytic covers, calse 5 (flexible) according to EN60228.
- Isolation: Gum without halogen.
- Cover: Rubber type EM8 Fire test, free of low smoke halogen and corrosive gases in case of fire.
- Flexible cable applications, suitable for fixed and mobile installations. Suitable for the connection between photovoltaic panels and panels to the DC converter to AC. Cables specially designed for outdoor use in all wing guarantees.
Installation conditions
- Photovoltaic solar energy
- outdoor
Character
- Conductor: Flexible Class 5/6
- Minimum temperature: -40
- Maximum conductor temperature: 120
- High Tempeuture Short: 250 (maximum 5 s)
- Curvature radius: 3 x external diameter
- Marking: Metro Subway
- Flame retardant
- Outdoor Installation: Permanent
- Impact Resistance: AG2 Middle
- Water Resistance: Immersion AD7
- Resistance to chemical attack: excellent
- Extreme resistance to temperature: excellent
- UV resistance
- 30 years of life according to UNE 60216-2
- The resistance to grease and oils
- The resistance to abrasion
National / European Standard:UNE-EN 60332-1 / UNE-NE 50267-1 / UNE-NE 50267-2 / UNE-EN 61034 / NFC 32-070 (C2)
International Standard:IEC 60332-1 / IEC 60754-1 / IEC 60754-2 / IEC 61034
