Solar Charge Controller LS2024100EPLI 20A, 12/24V 12V(50W) 24V(100W)

Description

LS2024100EPLI

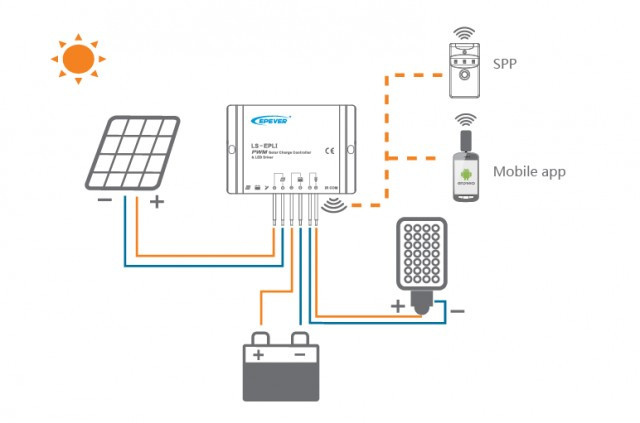

LS-EPLI series combines solar charge controller and LED driver into one unit. It is ideal for solar LED Lighting requireing dimmer function. The control parameter can be programmed by Mobile APP and SPP-02 via infrared(IR) communication.

Features：

• PWM charging
• Battery type selection: Sealed, Gel, Flooded and User(programmable).
• Maximum output efficiency of 96%
• Output current adjustable
• Flexible dimming function(0-100%)
• Digital precision constant current control
• Real-time energy statistics function
• Battery temperature compensation function
• Fully encapsulated PCB, IP68 protection
• Aluminum housing for better cooling
• Easy to check system working status via Mobile APP

Electronic protections:
• PV reverse polarity protection
• Battery over voltage protection
• Battery over discharge protection
• Battery overheating protection
• Battery reverse polarity protection
• Load short circuit protection
