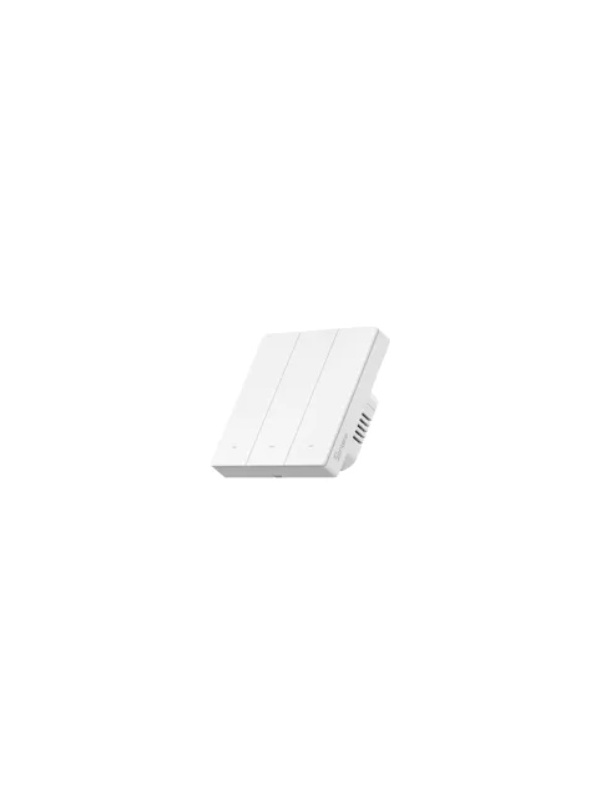

SONOFF M5-3C -86W - Triple (3 gang) Netriner Smart WiFi of Endbruary - White

Description

SPECIFICATIONS:
◾ Modes of the M5 Series:
-M5-1C-80
-M5-2C-80
-M5-3C-80
-M5-1C-86
-M5-2C-86
-M5-3C-86
◾ Channels: 1C / 2C / 3C
◾ Voltage (input/output): 100-240VAC 50/60Hz
◾ Maximum current:
- Model M5-1C: 10a
- Model M5-2C: 10a (5a/channel)
- Model M5-3C: 6a (2a/channel)
◾ Maximum power for resistive load:
- Model M5-1C: 2200W
- Model M5-2C: 2200W (1100W/Channel)
- Model M5-3C: 1320W (440W/Channel)
◾ Maximum power for LED lighting:
- Model M5-1C:
· 220V: 300W
· 110V: 150W
- Model M5-2C:
· 220V: 300W/Channel
· 110V: 150W/Channel
- Model M5-3C:
· 220V: 100W/Channel
· 110V: 60W/Channel
◾ Microcontroller: ESP32
◾ Communication protocols:
- Wi-Fi: IEEE 802.11 B/G/N 2.4GHz
- EWELINK-RETEWING (SONOFF Exclusive RF Control)
- Bluetooth: 4.2 Ble (for pairing)
◾ Smartphone Application: Ewelink (Android and iOS)
◾ Works without Bridge/Hub/Gateway: Yes
◾ Works neutral wireless: no
◾ Material: PC VO
◾ Operating temperature: from -10 ° C to 40 ° C
◾ Certifications:
- Series 86: CE/UKCA/CQC/SRRC
- 80 Series: CE/UKCA
◾ Dimensions:
- Series 86: 86 x 86 x (12.8+28.9) mm
- 80 Series: 86 x 71 x (12.8+28.9) mm

Included in the package:
◾ Smart Wall Switch Switchman M5
◾ 2 screws
◾ User Manual
