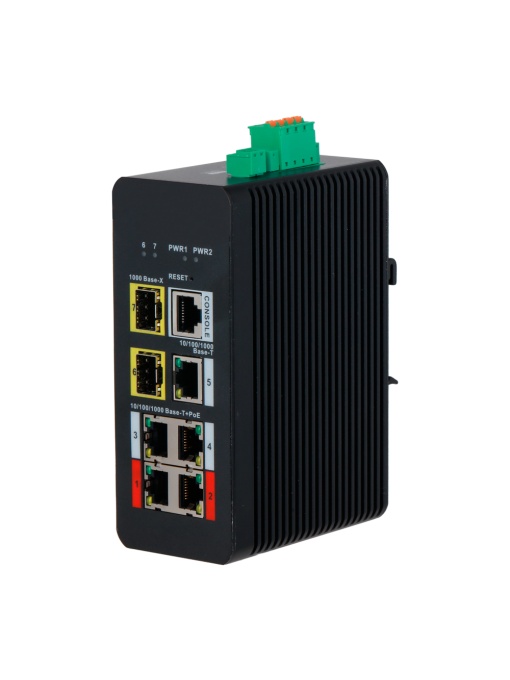

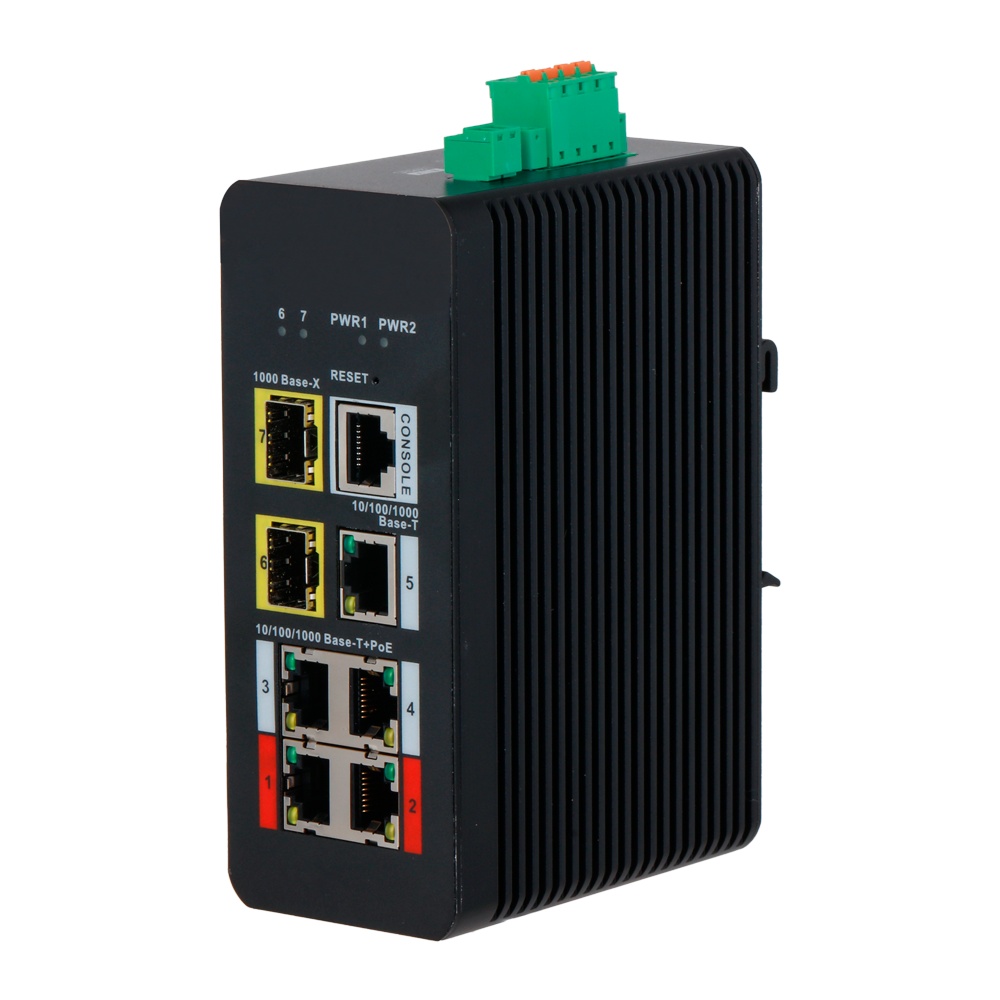

Switch Poe X -Security Carril Din - 4 Doors Poe RJ45 + 1 RJ45 Port 2 + [%VAR%] SFP - Speed 10/100/1000 Mbps - 90W Doors 1-2 / 30W Ports 3-4 / Maximum 120W Ports [%VAR%] - Poe / Poe + / Hi -POE / Up to 250m / Poe Watchdog - VLAN/STP/RSTP/ERPS/LACP/STATICLA
€367.42
(IVA included)
€298.71
(Without IVA)
Description
| Interface | 4 POE RJ45 + 1 Ascendant Gate RJ45 + 2 SFP FIBER DOORS + 1 CONSOLA DOOR |
| Speed ports | 5x 10/100/1000mbps + 2 x 1000mbps base |
| Electric power supply | Up to 90W at doors 1-2 and up to a maximum of 30W between the 3-4 (120 W ports for the entire device) |
| Poe Characteristics | According to the standard: IEEE 802.3AF POE / IEEE 802.3AT POE+ / IEEE802.3BT HI-POE Up to 120W POE POWER TOTAL Poe Watchdog, the switch automatically detects if the device powered by POE is not operational. Extended poe up to 250m to 10mbps |
| Vlan | 4K 10 VLAN INTERFACE |
| DHCP | Customer Server DHCP Snooing |
| Security functions | IEEE 802.1x ACL |
| Redundancy | STP RSTP ERPs |
| Management Protocols | Web Clim Telnet SNMP V1/V2/V3 |
| Food | DC 53V (Power supply not included) Redundant source: two power supplies can be connected to the device |
| Installation | Din gutter |
| Maximum consumption | 120W |
| Operating temperature | -40º C ~ 75º C |
| Dimensions | 94.4 x 53.5 x 135 mm |
| Weight | 0.65kg |
| Installation | Table and rail din |
