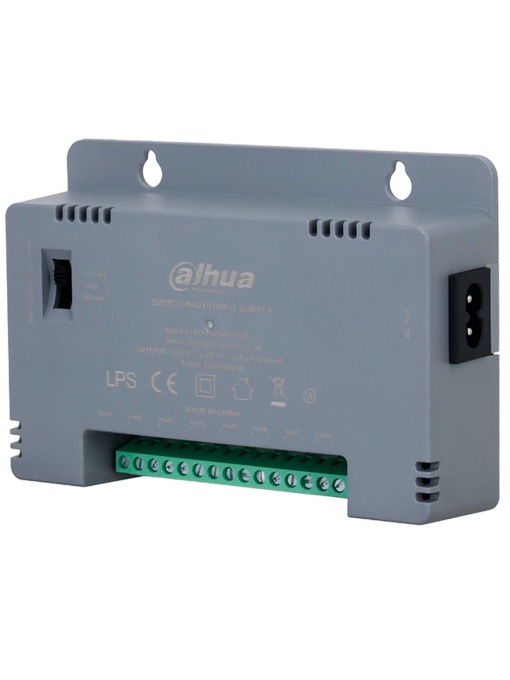

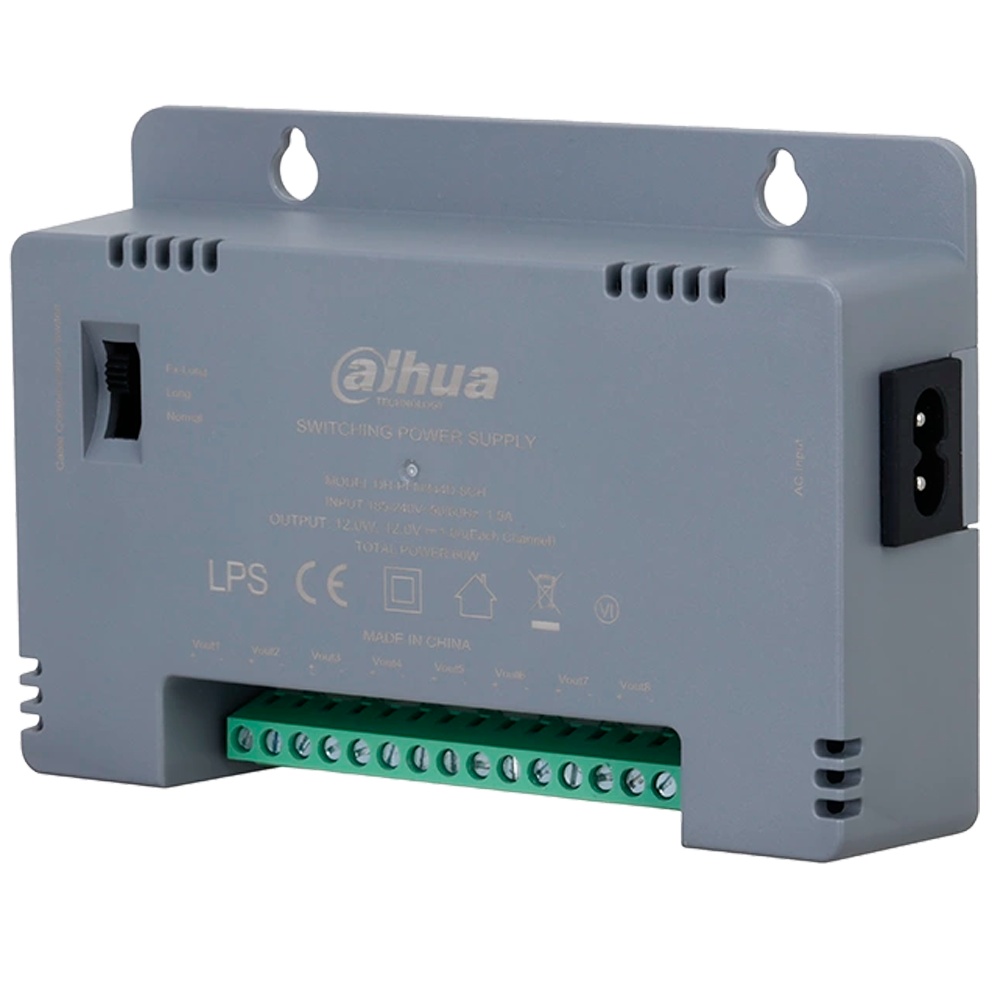

Switching power supply - AC 185-240V Input - 50 / 60Hz 1.5A - Total power 60W - 8 outputs - Adjustable output voltage to 3 levels - DC Exit 12 V / 12 W
€12.12
(IVA included)
€9.85
(Without IVA)
Delivery cost is not included
Description
| Power input | AC 185-240V - 50/60Hz 1.5a |
| Feed exits | 8 Exits |
| Output voltage | DC 12 V - 1 A / 12 W, 3 levels (Normal: 12VDC, Long: 13.2VDC, and Ex -Long: 15VDC) |
| Output ripple | 150 mV |
| Total power | 60 W |
| Consumption | ≤ 0.1W |
| Transformation Efficiency | ≥ 86.95% |
| Protection | Overintensity, Short Circuit and Overtension |
| Protection against overvoltages | Common mode: ± 4 kV, differential mode: ± 2 kV. |
| Temp. operation | 0º C ~ +40º C |
| Dimensions | 140.1 (width) x 94.5 (AL) x 34.2 (background) mm |
| Weight | 0.27 kg |
