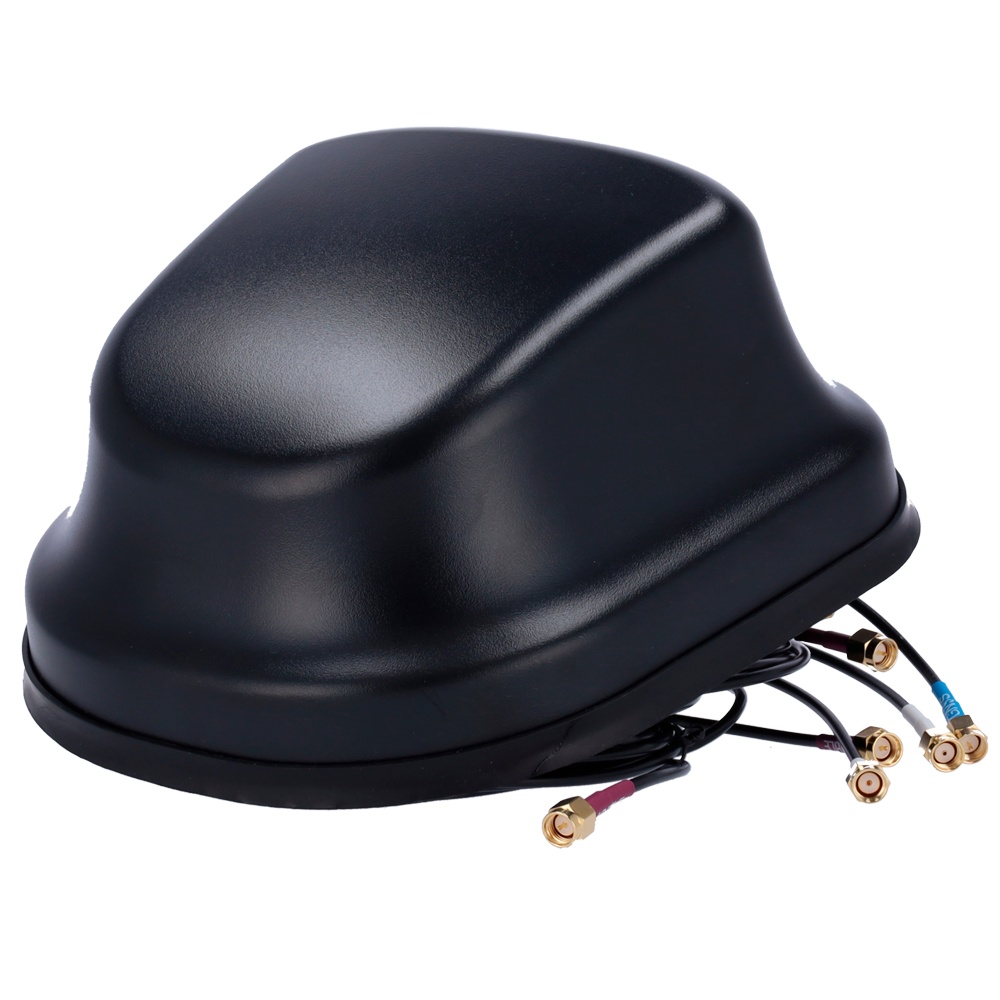

Teltonika Antenna - 5g LTE/Wi -Fi/GNSS Combo - Fixing the vehicle's roof - SMA Connectors - IP67 External Certificate - LMR100 3 Cables Meters long
€137.78
(IVA included)
€112.02
(Without IVA)
Delivery cost is not included
Description
| Assembly | Ceiling fixation (apare) |
| LTE Antennas | Frequency range: 617-960/1710-2690/2900-4200 MHz Polarization: Linear Results: 4DBI V.S.W.R <3.0 Impedance: 50 ohms 4x Male connectors |
| Wi-Fi Antennas | Frequency: 2400-2483.5/4900-5925 MHz Polarization: Linear Results: 4DBI V.S.W.R <2.5 Impedance: 50 ohms 2x rp-sma male connectors |
| Gnss antenna | Frequency: 1164-1300/1559-1610 MHz Polarization: RHCP Impedance: 50 ohms LNA gain: 40 ± 2 dB Voltage 3-12 VDC Current consumption << 60ma LNA V.S.W.R <2.0 1x male connector |
| Cables | 7x LMR100, 3 meters |
| Dimensions | 189 x 182 x 85 mm |
| Weight | 960 ± 30 g |
