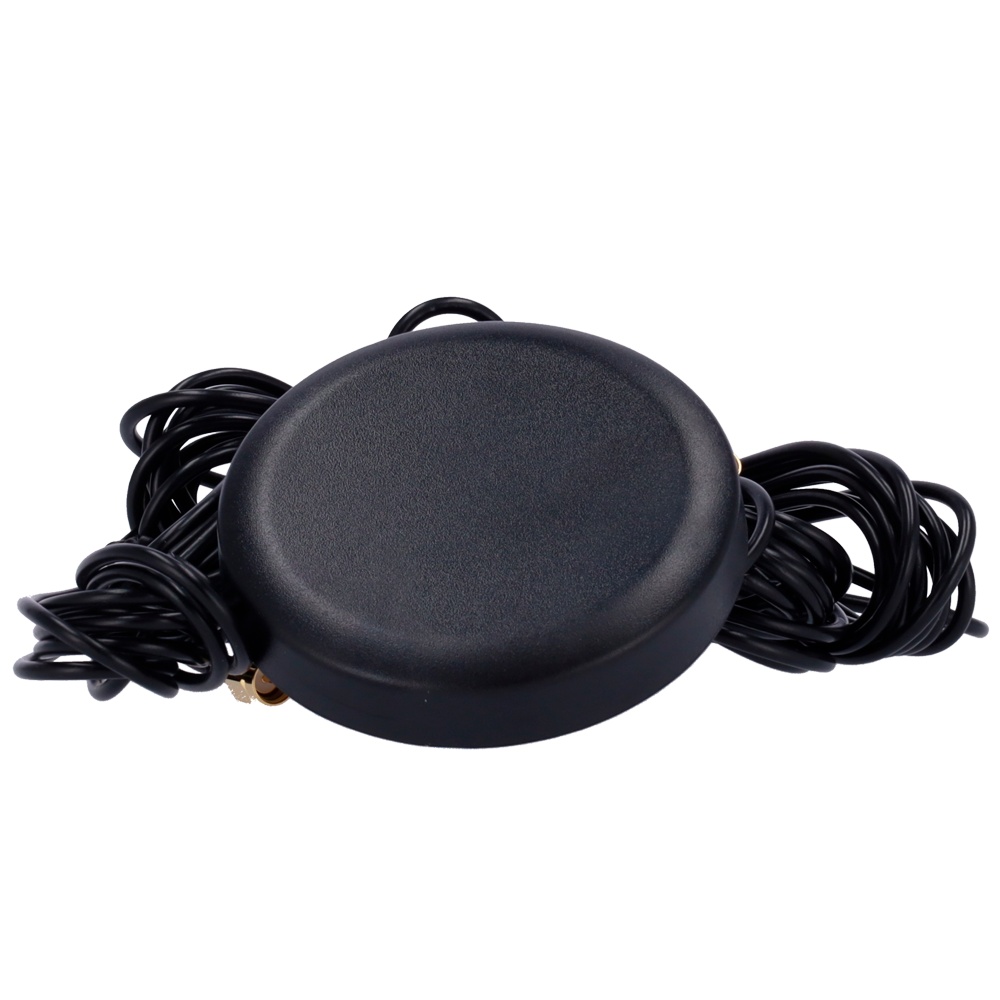

Teltonika Antenna - Combo LTE/Wi -Fi/GNSS - Fixing the vehicle's roof - SMA connectors - outer certificate IP67 - RG174 Cables 3 with meters long
€31.90
(IVA included)
€25.93
(Without IVA)
Delivery cost is not included
Description
| Assembly | Ceiling fixation (apare) |
| LTE Antennas | Frequency range: 617-960/1710-2690 MHz Polarization: Linear Results: 3.5DBI V.S.W.R <1.5 Impedance: 50 ohms 1x male connectors |
| Wi-Fi Antennas | Frequency: 2350-2500 MHz Polarization: Linear Results: 2.5 DBI V.S.W.R <1.5 Impedance: 50 ohms 1x rp-sma male connectors |
| Gnss antenna | Frequency: 1575-1610 MHz Polarization: RHCP Impedance: 50 ohms LNA gain: 28 ± 2 dB LNA noise: << 1.5 dB Voltage 2.7-5 ± 0.5VDC Current consumption << 15ma LNA V.S.W.R <1.5 1x Male SMA Connector |
| Cables | 3x RG174, 3 meters |
| Dimensions | 110x55mm |
| Weight | <225g |
