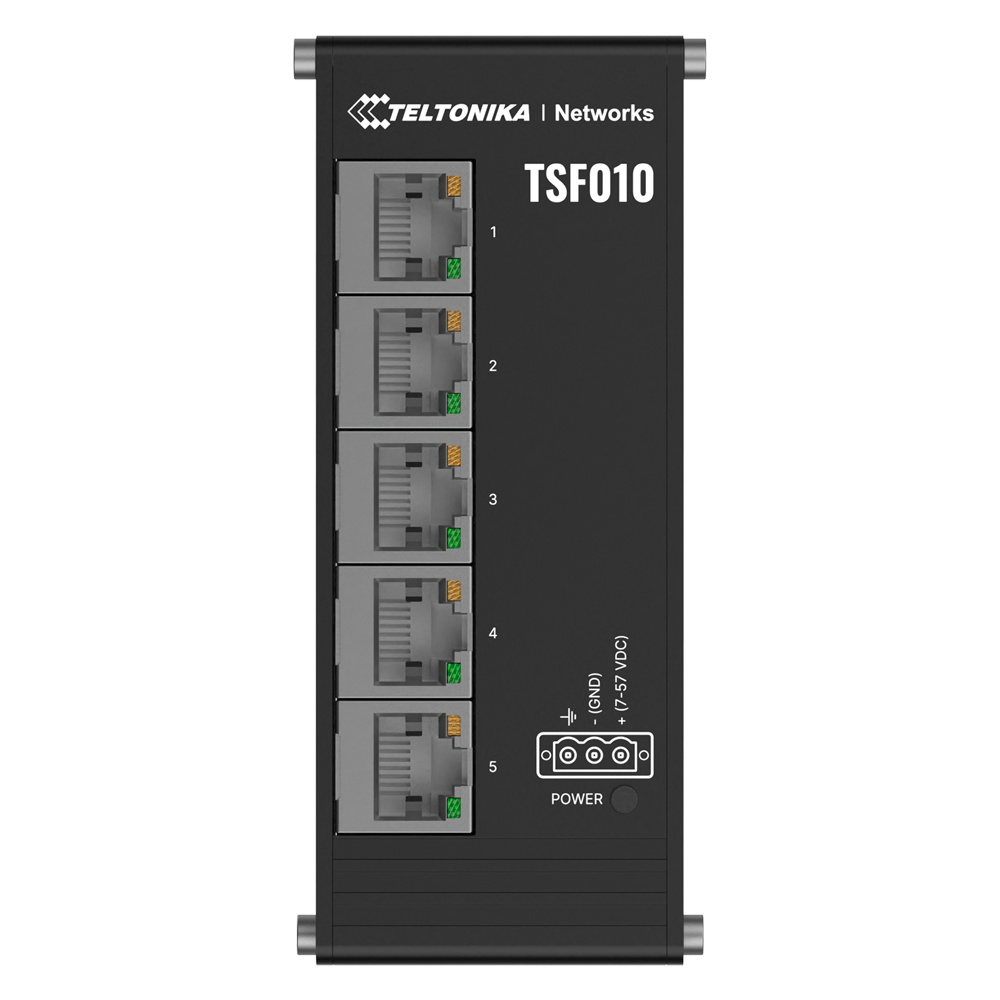

TELTONIKA SWITCH NON -GESTIBLE INDUSTRIAL - 5 Ethernet ports RJ45 FAST Ethernet - Anodized Aluminum BOX - Plug and Play - DC Food 7 to 57V - State LEDs - State LEDs -
€39.88
(IVA included)
€32.42
(Without IVA)
Delivery cost is not included
Description
| Mark | Teltonika |
| Device | Non -Manageable Industrial Switch |
| Ethernet | 5 Ethernet ports RJ45 10/100Mbps |
| Compliance with IEEE 802.3 standards | 802.3i, 802.3U, 802.3ab, 802.3x, 802.3Az |
| Switching capacity (without lock) | 10Gbps |
| Mac table | 2K Entries |
| Buffer Packet | 128 KB |
| Jumbo Frame | 9216 Bytes |
| Technology | Automatic detection of MDI/MDI-X cables |
| Food | DC connector 3 Industrial Pins 7 to 57V. |
| Current consumption | In wait: 1w / max: 1.5W |
| Power supply protections | Overvoltage Protection: 60 Vmax Protection against polarity inversion: 80 Vmax Protection against overvoltages: min. 64.4 V/max. 71.2 V Break of the range of input tensions, 93.6 V of maximum reverse voltage @4.3 A maximum current overtestand current. |
| Material | Anodized aluminum |
| Degree of protection | IP30 |
| Temp. operation | -40º C ~ +75º C |
| Moisture | 10 ~ 90 % (without condensation) |
| Optional assembly kit (not included) | Carris Assembly Kit |
| Dimensions | 28 (a) x 113 (AN) × 50 (P) mm |
| Weight | 142 g |
