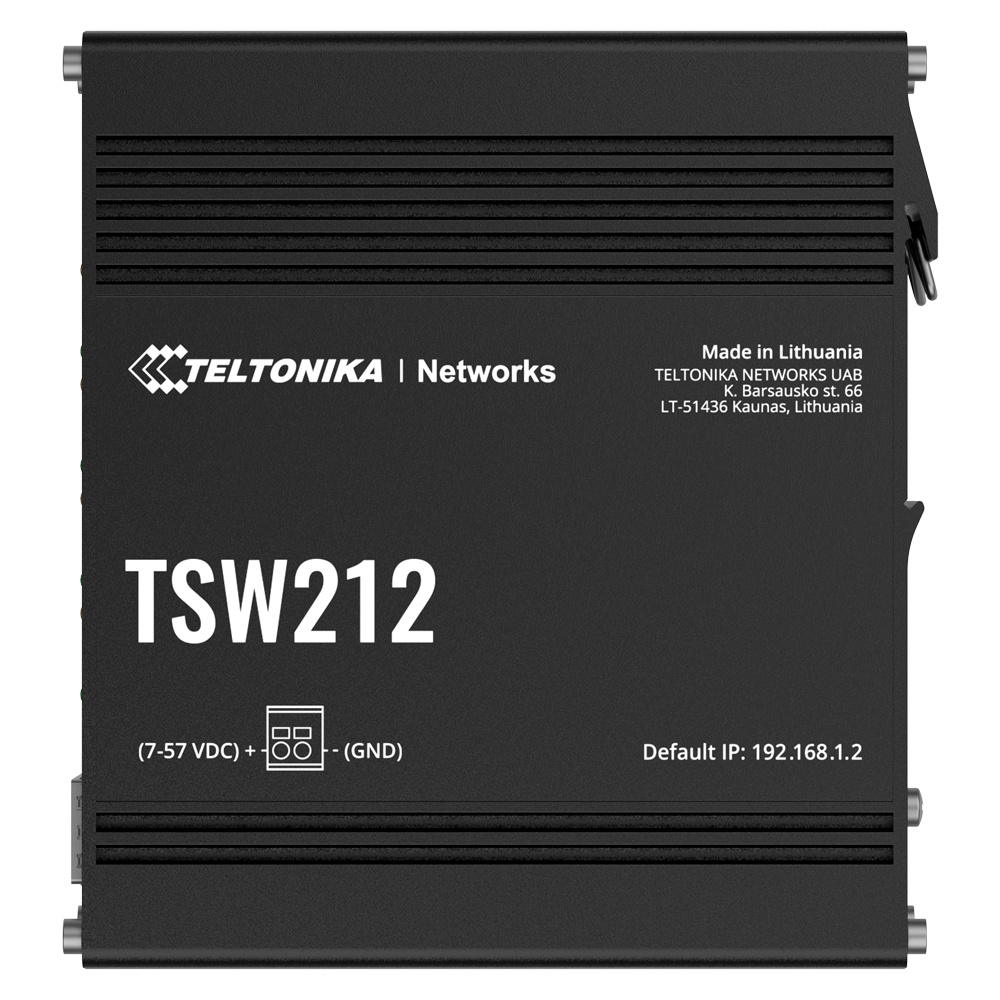

TELTONIKA SWITCH POE GESTIONABLE INDUSTRIAL - 8 DOORS ETHERNET RJ45 GIGABIT +2 SFP GIGABIT - VLAN/LOOP Prevention/STP/RSTP/PORT MIRRORING - ROBUSTA ALUMINUM BOX - DIN CARRIL ASSEMBLY
€131.55
(IVA included)
€106.95
(Without IVA)
Delivery cost is not included
Description
| Interface | 8 Ports RJ45 10/100/1000 Mbps + 2 SFP ports |
| Operating system | TSWOS (OpenWRT based) |
| Ram | 128MB, DDR3 |
| Flash storage | 16 MB Serial Flash |
| Vlan | 802.1q up to 4094 |
| Redundancy protocols | Spanning Tree (STP, RTSP) MRP |
| Network Protocols and Technologies | LLDP PROFINET (Class B) ENERGY EFFICIENT Ethernet 802.3Az MRP Customer/Manager Function Forwarding table Jumbo Frame 10000 Bytes Ties prevention Port mirroring Port isolation SNMP V2/V3 |
| DHCP | IPv4 Server and Customer / IPv6 Customer |
| Routing | IPv4/IPv6 Static Routing, DHCPV6 Client, Static IPv6 Address |
| Qos | Port Priority DSCP Priority 802.1P Priority TOS SP/WFQ/WRR PROGRAMMING METHOD Bandwidth Control Rate Limiting, Storm Control Traffic Shaper Port-Based Shaping |
| Management Protocols | Web/Cloud/Cli/Fota |
| Food | DC connector 2 industrial pins 7 ~ 57vdc (not included power supply) Maximum consumption 6w |
| Material | Anodized aluminum |
| Temp. operation | -40º C ~ +75º C |
| Moisture | 10 ~ 90 % (without condensation) |
| Assembly kit | Carris Assembly Kit Compact Rail Assembly Kit (optional) Surface assembly kit (optional) |
| Protection | IP30 |
| Dimensions | 44.2 (AL) X 132 (AN) × 122.2 (FO) MM |
| Weight | 615 g |
