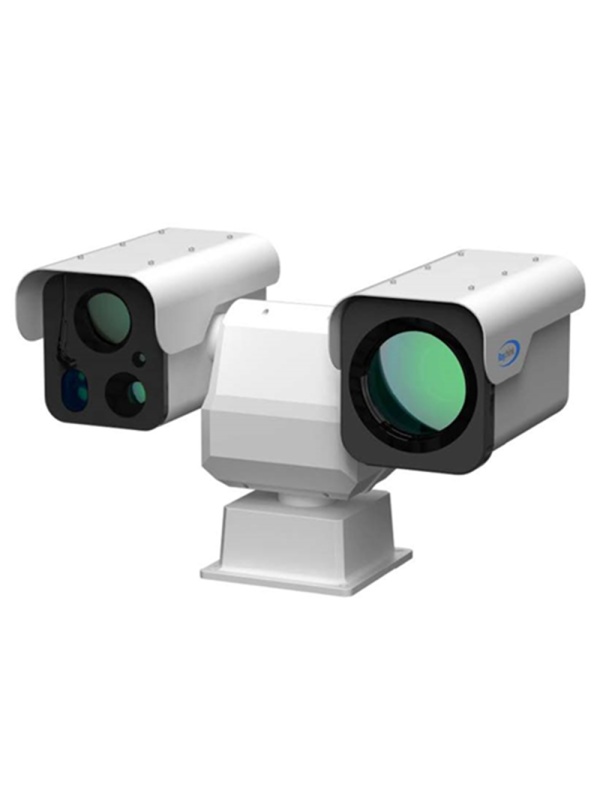

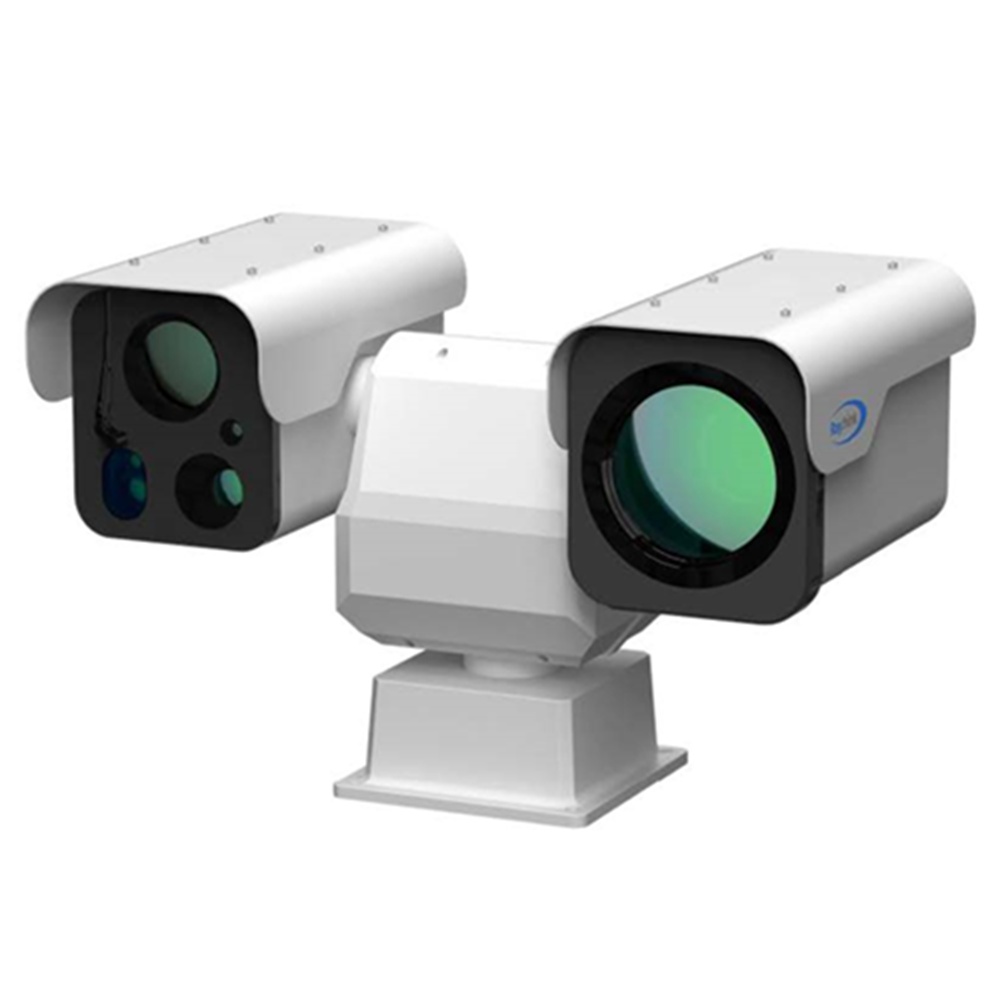

Thermal Camera Raythink PC5 Series - Thermal Sensor 1280x1024 Vox Not Cooled 12μm - Thermal Sensitivity ≤40mk@25 ° C, F#1.0,25Hz - Visible Sensor 1/1.8 "4MPX CMOS - Thermal Lens 30 ~ 150mm (zoom 5x)) - Visible Lens 10 ~ 550mm (zoom 55x)))
€50,902.43
(IVA included)
€41,384.09
(Without IVA)
Description
| Mark | Raythink |
| Gamma | PC5 |
| Thermal sensor | 1280x1024 Vox not cooled 12μm |
| Spectral strip | LWIR 8 ~ 14μm |
| Thermal sensitivity | ≤40mk (@25 ° C, F#1.0.25Hz) |
| Optical sensor | 1/1.8 "CMOS 4MPX |
| Main Stream Rate | 2688 × 1520, 1920 × 1080, 1280 × 720 (25IPs) visible 1280 × 1024, 1280 × 720, 1024 × 768 (25IPs) Thermal |
| Extra stream rate | 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288 (25IPs) visible 640 × 512, 384 × 288 (25IPS) Thermal |
| Compression | H.265 / H.264 / MJPEG |
| Laser Illuminator | Laser's Speed Range: 808nm Lighting range: 800m. (1500m. Optional) |
| Laser distance gauge | Laser's spectral reach: 905nm (optional 1535nm) Measurement distance: 2km. (3km., 6km. Optional) |
| Lens | Motorized Automatic Focusing 30 ~ 150mm (Term.) 5x / Motorized Automatic Focusing 10 ~ 550mm (Vis.) 55x |
| Angle | Horizontal: 28.7º ~ 5.9º (Term.) / H: 58º ~ 1.2º (VIS.) |
| PAN/TILT INTERVAL | Horizontal: 0 ° ~ 360 ° (infinite), vertical: -90 ° ~+90 ° |
| Manual speed | Horizontal: 0.1 ~ 100 °/s, vertical: 0.1 ~ 60 °/s |
| Detection Intervals | People Detection ((1.8x0.5 m): 6.3km Vehicle detection (4x1.4 m): 19.2km Person Recognition (1.8x0.5 m): 1.6km Vehicle recognition (4x1.4 m): 4.8km Person ID (1.8x0.5 m): 0.8km Vehicle identification (4x1.4 m): 2.4km |
| Intelligent Functions | Fire detection Intrusions Detection: Line crossing, area entry Synchronized zoom |
| Audio | 1 input / 1 output |
| Alarm | 1 input / 1 output |
| Internal storage | Micro SD card up to 512GB (not included) |
| Network interface | 1x Ethernet 10/100m baset |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Food | 48VDC / 300W |
| Temp. operation | -40ºC ~+70ºC |
| Degree of protection | IP66 Waterproof TVS 6000V Lightning Protection |
| Dimensions | 623.6mm x 398.5mm x 350mm (width x height x depth) |
| Weight | 30kg. |
