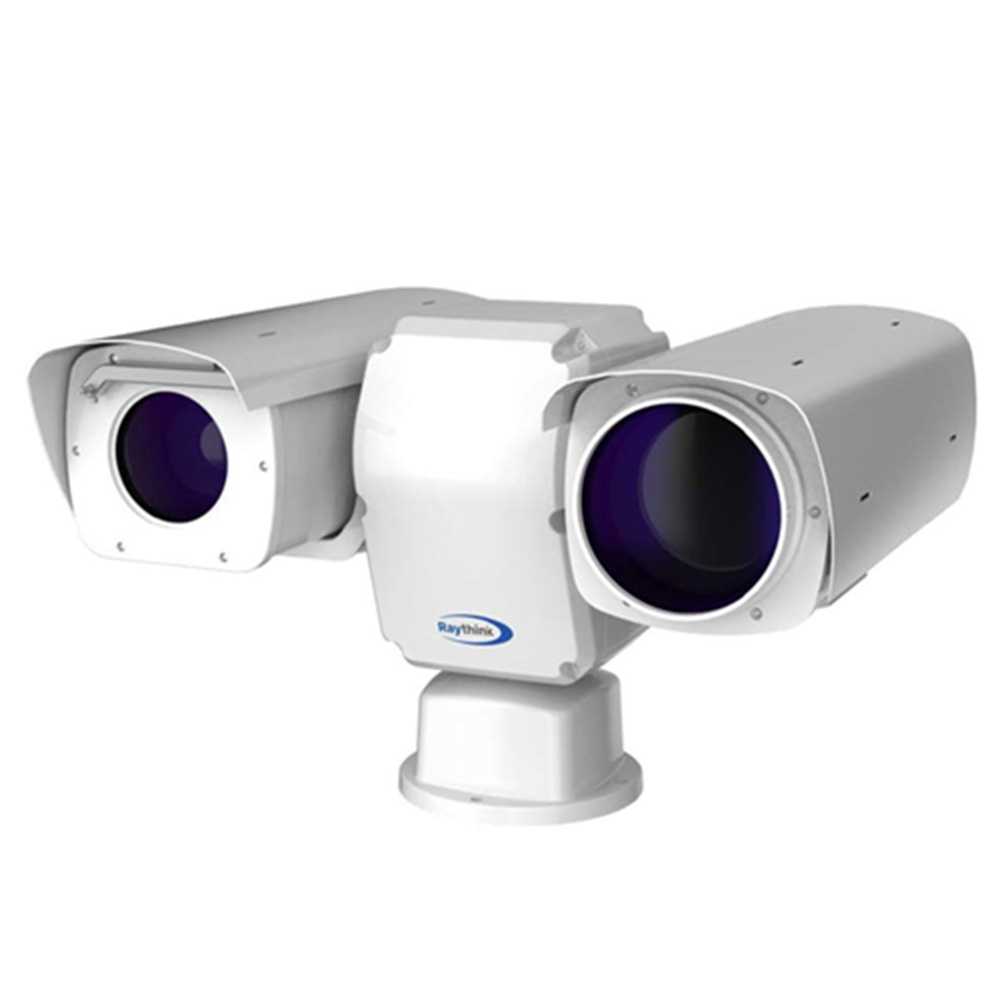

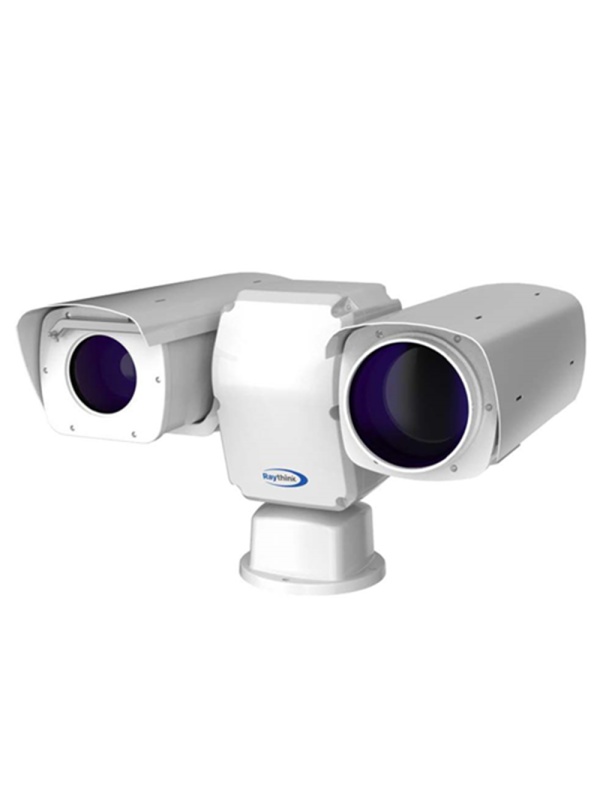

Thermal Camera Raythink PC6 Series - Thermal Sensor 1280x1024 Vox Not Covered 12μm - Thermal Sensitivity ≤40mk@25 ° C, F#1.0.25Hz - Visible Sensor 1/1.8 "4MPX CMOS - Thermal Lens 30 ~ 150mm (zoom 5x)) - Visible Lens 6 ~ 300mm (zoom 50x))))
€45,248.30
(IVA included)
€36,787.24
(Without IVA)
Description
| Mark | Raythink |
| Gamma | PC6 |
| Thermal sensor | 1280x1024 Vox not cooled 12μm |
| Spectral strip | LWIR 8 ~ 14μm |
| Thermal sensitivity | ≤40mk (@25 ° C, F#1.0.25Hz) |
| Optical sensor | 1/1.8 "CMOS 4MPX |
| Main Stream Rate | 2688 × 1520, 1920 × 1080, 1280 × 720 (25IPs) visible 1280 × 1024, 1280 × 720, 1024 × 768 (25IPs) Thermal |
| Extra stream rate | 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288 (25IPs) visible 640 × 512, 384 × 288 (25IPS) Thermal |
| Compression | H.265 / H.264 / MJPEG |
| Lens | Motorized Automatic Focusing 30 ~ 150mm (Term.) 5x / Motorized Automatic Focusing 6 ~ 300mm (Vis.) 50x |
| Angle | Horizontal: 28.7º ~ 5.9º (Term.) / H: 62º ~ 1.6º (opt.) |
| PAN/TILT INTERVAL | Horizontal: 0 ° ~ 360 ° (infinite), vertical: -90 ° ~+90 ° |
| Manual speed | Horizontal: 0.01 ° ~ 120 °/s, vertical: 0.01 ° ~ 60 °/s |
| Detection Intervals | People Detection ((1.8x0.5 m): 6.3km Vehicle detection (4x1.4 m): 19.2km Person Recognition (1.8x0.5 m): 1.6km Vehicle recognition (4x1.4 m): 4.8km Person ID (1.8x0.5 m): 0.8km Vehicle identification (4x1.4 m): 2.4km |
| Intelligent Functions | Fire detection Intrusions Detection: Line crossing, area entry Synchronized zoom |
| Audio | 1 input / 1 output |
| Alarm | 7 Entries / 2 Outputs |
| Internal storage | Micro SD card up to 256GB (not included) |
| Network interface | 1x Ethernet 10/100m baset |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Food | 48VDC / 200W |
| Temp. operation | -40ºC ~+70ºC |
| Degree of protection | IP66 Waterproof TVS 6000V Lightning Protection |
| Dimensions | 598mm x 738mm x 468mm (width x height x depth) |
| Weight | 48kg. |
