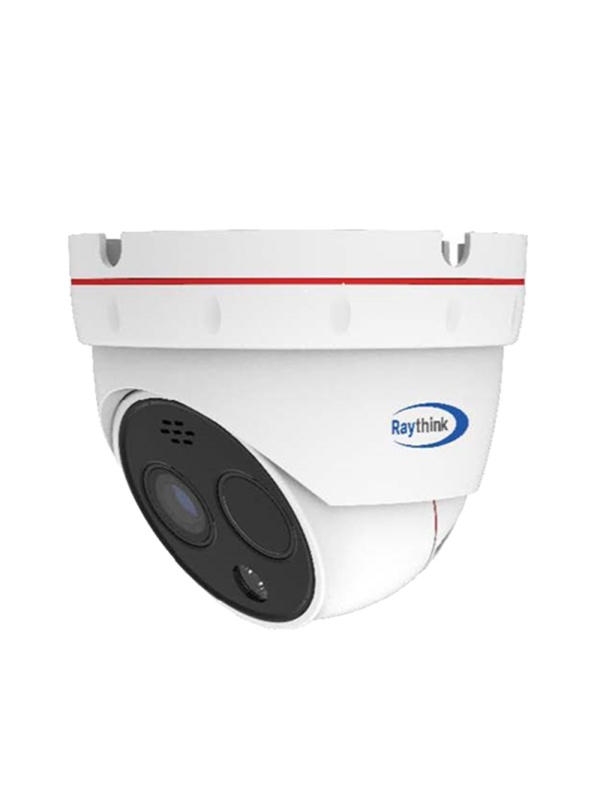

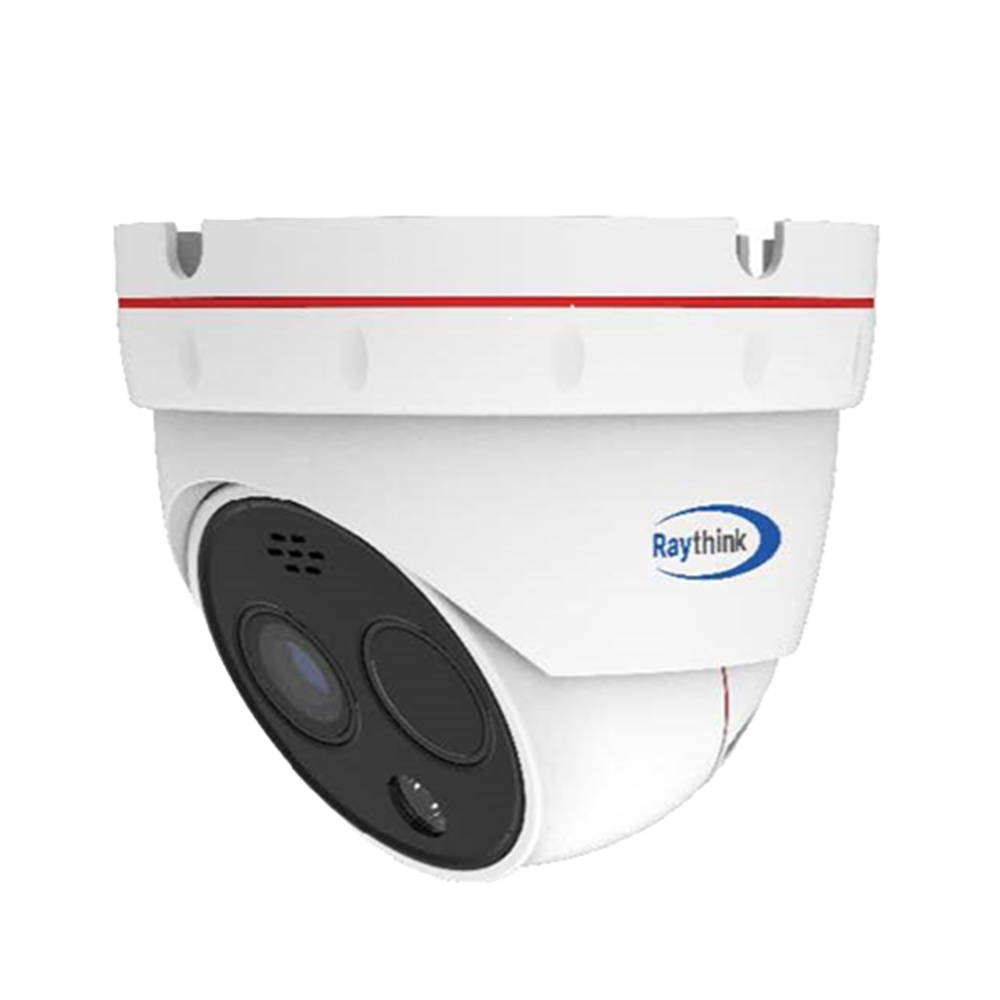

Thermal Chamber IP Raythink FC1 Series - Vox Thermal Sensor FPA 256x192 12μm 3.2mm Lens [%VAR%] - Visible Sensor 1/2.8 "CMOS 5MPX | 4mm Lens - Thermal Sensitivity ≤40mk - Temperature measurement range -20ºC ~ 550º/± 2%.
€496.27
(IVA included)
€403.47
(Without IVA)
Description
| Mark | Raythink |
| Gamma | FC1 |
| Thermal sensor | Vox FPA Not Refrigerated |
| Thermal sensor resolution | 256 x 192 |
| Pixel pitch | 12μm |
| Thermal lens | 3.2mm |
| Thermal sensitivity | ≤40mk |
| Thermal measurement rate | -20ºC ~ 550ºC / ± 2ºC or ± 2% |
| Spectral strip | LWIR 8 ~ 14μm |
| Thermal vision angle | 56 ° (h) x 42 ° (v) |
| Visible sensor | 1/2.7 "Progressive scan cmos |
| Visible sensor resolution | 2560 x 1920 (5mpx) |
| Visible lens | 4mm |
| Visible viewing | 84 ° (h) x 61 ° (v) |
| Infrared illuminator | 30m. maximum |
| BI-SPETRO VISION PARAMETERS | Fusion |
| Main Stream Rate | Visible: 25fps (2592 × 1944, 2560 × 1440, 1920 × 1080) Thermal: 25fps (1280 × 960, 1024 × 768) |
| Sub stream | Visible: 25fps (704 × 576, 640 × 480, 352 × 288) Thermal: 25fps (640 × 480, 256 × 192) |
| Compression | H.265 / h.264 |
| DRI | Person: 133m (D), 33m (r), 17m (i) Vehicle: 409m (d), 102m (r), 51m (i) |
| Smart Analysis Intervals | Person: 25m Vehicle: 77m Temperature measurement (object 2x2m)): 89m Temperature measurement (object 1x1m)): 44m Fire detection (object 2x2m)): 356m Fire detection (object 1x1m)): 178m |
| VCA | Cross -line crossing, intrusion, temperature measurement and fire detection |
| Rules for Temperature | Complete window, point, line and region, several rules simultaneously |
| Alarms | 1 input / 1 Relay |
| Audio | 1 input / 1 output |
| Audio compression formats | G.711A/G.711U/AAC/PCM |
| Internal storage | MicroSD Card Skill up to 256 GB |
| Network interface | Ethernet 10/100 Baset |
| Communication | 1 x RS-485 Protocol Pelco |
| Remote access | Web browser, PC VMS software |
| Interoperability | Onvif, API, SDK |
| Food | DC 12V, 10W Max. Poe IEEE802.3AF |
| Temp. operation | -40ºC ~+70ºC, <95% rh |
| Protective | IP66 waterproof |
| Dimensions | Φ129mm × 96mm |
| Weight | 800g |
